Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 20.2· Performance
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
mainsail + genoa, added up
1 / 10

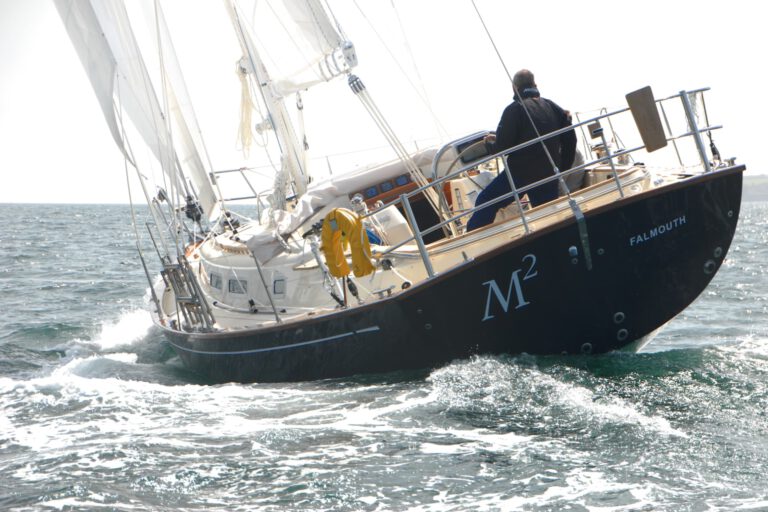

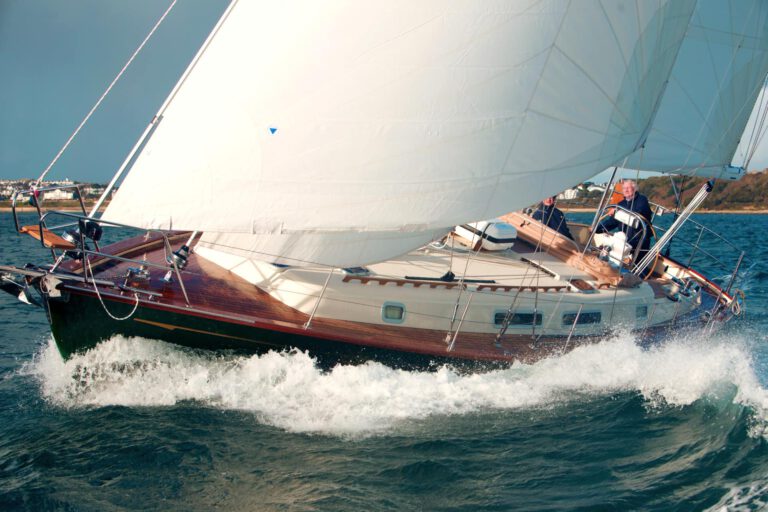

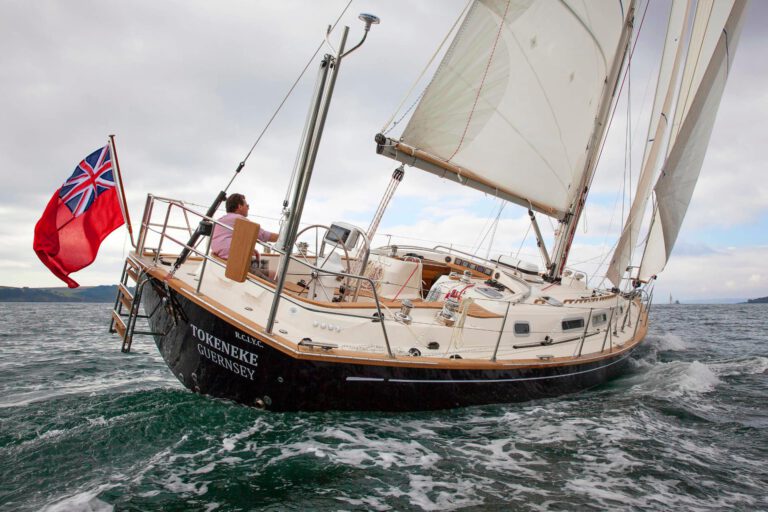

Rustler 42 sailing — Rustler Yachts
Design
- Designer
- Stephen Jones
Summary
- Length overall
- 42 ft
- Beam
- 13.3 ft
- Draft
- 6.2 ft
- Displacement
- 25,995 lb
- Cabins
- 2
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Best Suited For
- Bluewater Cruising
From the published figures: CE Category A · LOA 12.81 m
- Short-Handed
From the published figures: LOA 12.81 m · mainsail 40.88 m²
Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- not published: waterline length
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Ballast ratio
The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.
- 40· High
How it is worked out
ballast ÷ displacement × 100
Comfort ratio
Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.
- not published: waterline length
How it is worked out
displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft
Capsize screening
A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.
- 1.80· Below 2
How it is worked out
beam (ft) ÷ (displacement as ft³ of seawater)^⅓
Hull speed
Roughly the speed a displacement hull reaches before it has to climb its own bow wave.
- not published: waterline length
How it is worked out
1.34 × √(waterline length in ft), in knots
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Design Category
Certified CE design category A (Ocean): the wind and waves the EU Recreational Craft Directive says this boat is designed to take.
- D
Sheltered waters
- Wind
- up to Beaufort 4
- Waves
- up to 0.3 m
- C
Inshore
- Wind
- up to Beaufort 6
- Waves
- up to 2 m
- B
Offshore
- Wind
- up to Beaufort 8
- Waves
- up to 4 m
- AThis boat
Ocean
- Wind
- above Beaufort 8
- Waves
- above 4 m
Design limits set by the EU Recreational Craft Directive (2013/53/EU), in significant wave height. A category covers the conditions of those below it. It is the limit the boat was designed to, not a promise that it is safe in any conditions within it — that judgement stays with the skipper.
A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.
Dimensions
- LOA
- 42 ft (12.81 m)
- Hull length
- —
- LWL
- —
- Beam
- 13.3 ft (4.06 m)
- Draft (min)
- 6.2 ft (1.89 m)
- Draft (max)
- 6.2 ft (1.89 m)
- Air draft
- —
- Displacement
- 25,995 lb (11,791 kg)
- Ballast
- 10,298 lb (4,671 kg)
- Cabins
- 2
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- 440 ft² (40.88 m²)
- Jib
- —
- Genoa
- 670 ft² (62.25 m²)
- Sail area
- —
- Downwind sail area
- —
- Rig type
- —
Engine and Tanks
- Engine
- —
- Engine count
- 1
- Engine manufacturer
- Yanmar
- Propulsion type
- —
- Fuel capacity
- —
- Fresh water capacity
- —
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- GRP
- Deck material
- —
- Keel type
- long fin keel
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Yankee
- 49.80 sq.m
- Staysail
- 16.63 sq.m
Figures read fromwww.rustleryachts.com/rustler42/· Principal Dimensionsread 9/20/2026
