Hallberg-Rassy 64

Design

Designer

Germán Frers

Naval architect

Germán Frers

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · hull length 19.85 m · fresh water 1300 L

• Liveaboard

  From the published figures: hull length 19.85 m · 4 cabins · fresh water 1300 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

—

Hull length

65.1 ft (19.85 m)

LWL

57.5 ft (17.53 m)

Beam

17 ft (5.17 m)

Draft (min)

8.2 ft (2.5 m)

Draft (max)

8.2 ft (2.5 m)

Air draft

89.9 ft (27.4 m)

Displacement

79,366 lb (36,000 kg)

Ballast

27,999 lb (12,700 kg)

Cabins

3–4

Heads

—

Berths

—

Sail Plan

Main sail

—

Jib

—

Genoa

—

Sail area

2,497 ft² (232 m²)

Downwind sail area

2,669 ft² (248 m²)

Rig type

—

Engine and Tanks

Engine

300 hp (Volvo Penta)

Engine count

1

Engine manufacturer

Volvo Penta

Propulsion type

—

Fuel capacity

476 gal (1,800 L)

Fresh water capacity

343 gal (1,300 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

lead on deep bilge

Rudder type

—

Steering wheels

—

Builder's Own Figures

Sail area with jib and battenless main

173 m²

Transport height with windscreen

5.42 m

Holding tanks

3 x 75 litres

Cylinders

6

Estimated NRT

40.77

Engine displacement

5.5 litres

Cockpit length

3.10 m

Max torque

669 Nm at 2500 RPM

Estimated GRT

45.30

Sail area with genoa and furling main with roach and battens

232 m²

Transport height without windscreen, wheel, dorades and pulpit

4.93 m

Layouts & Drawings

3 drawings from the builder's page: general arrangement, sail plan, profile.

•

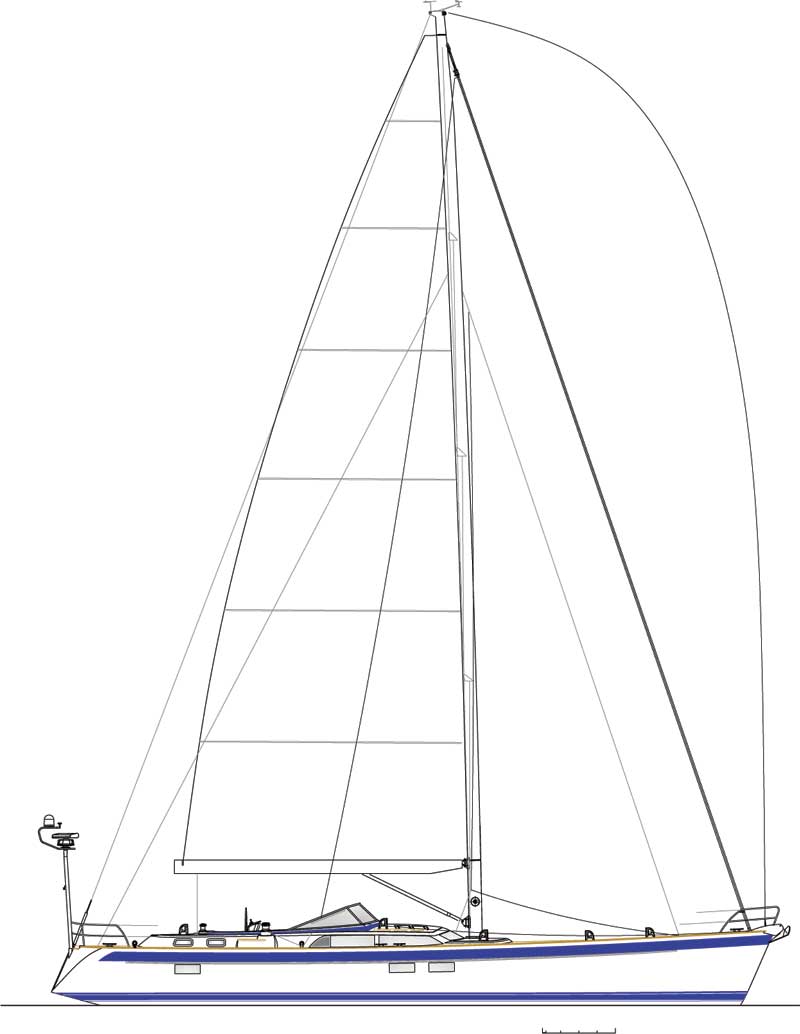

  Hr64 sail plan — Hallberg-Rassy

•

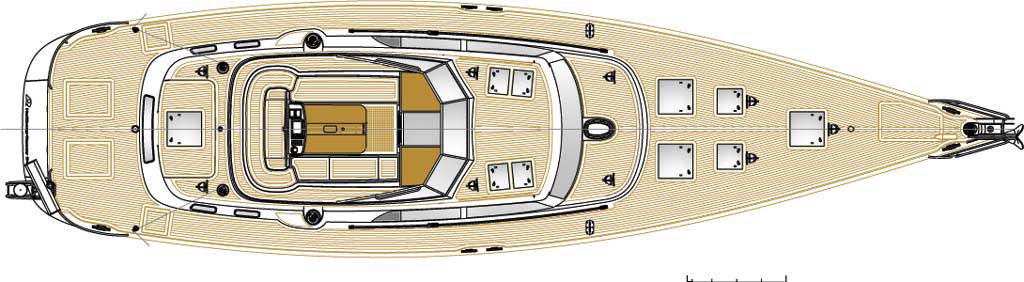

  Hr64 deck plan — Hallberg-Rassy

•

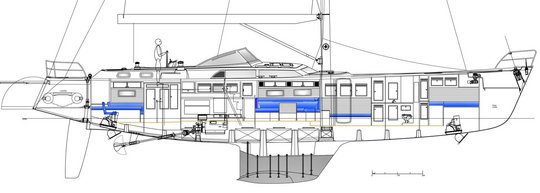

  Hr64 side view151214 — Hallberg-Rassy

Brochure

About Hallberg-Rassy

Premium production

Swedish builder of bluewater cruising sailboats, based in Ellös and formed in 1972, when the Rassy yard took over that of Harry Hallberg (founded in 1943), and still 100% family-owned.

Hallberg-Rassy began as two yards. Harry Hallberg opened his own wooden-boat yard at Kungsviken on the island of Orust in 1943, built the Folkboat and the Kungskryssaren in series, and in 1963 was among the first to build sailing boats in GRP in series -- his P-28, most of its first hundred sold to the USA, was the yard's early export success. Christoph Rassy arrived from Bavaria in 1960, bought the old Hallberg yard at Kungsviken when Hallberg moved to Ellös in the mid-1960s, and in 1966 launched the Rasmus 35, a pioneering long-distance cruiser with a centre cockpit behind a windshield -- the arrangement the yard has kept ever since. When Harry Hallberg retired in 1972 the Rassy yard bought the Ellös premises and the two names merged into Hallberg-Rassy; the first new design under that name, the Monsun 31, became the bestseller with 904 built by 1982. Germán Frers has drawn every model since 1988. The yard is still in Ellös and still family-owned.
