Hallberg-Rassy 62

Name: Hallberg-Rassy 62
Brand: Hallberg-Rassy

Discontinued

1 / 10

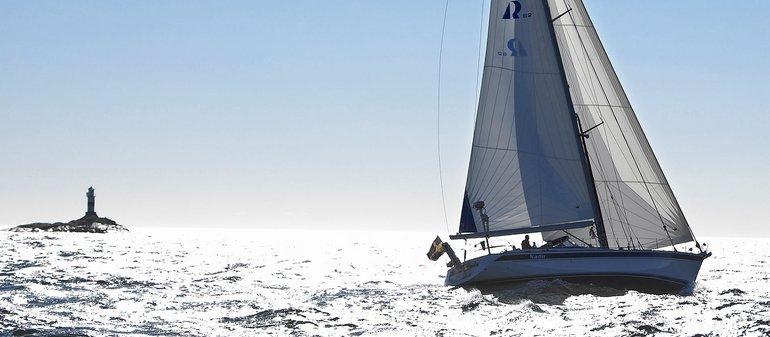

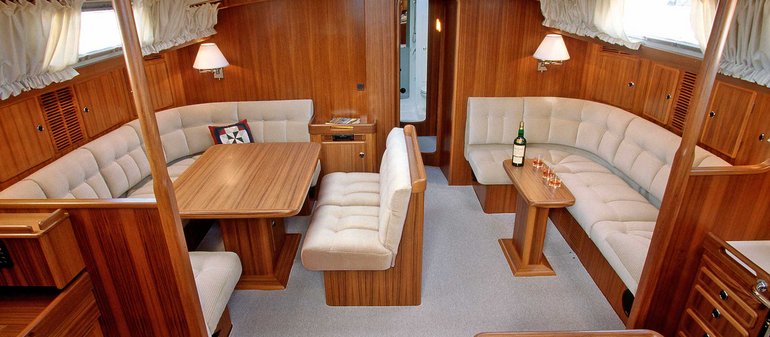

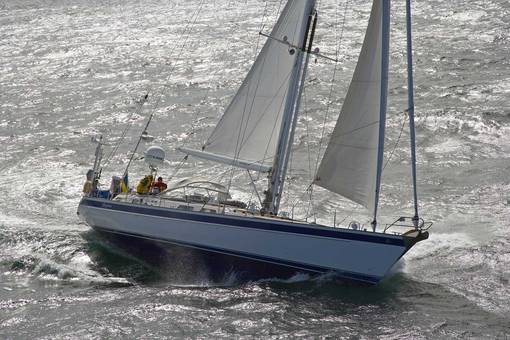

Hallberg-Rassy 62 — Hallberg-Rassy

Design

Designer: Germán Frers
Naval architect: Germán Frers

Summary

Sailing MonohullSailCE A

Hull length: 61.9 ft
Beam: 16.9 ft
Draft: 8.2 ft
Air draft: 86.6 ft
Displacement: 72,752 lb
Cabins: 4

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Bluewater Cruising
From the published figures: CE Category A · hull length 18.88 m · fresh water 1560 L
Liveaboard
From the published figures: hull length 18.88 m · 4 cabins · fresh water 1560 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

not published: sail area

How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

257· Moderate

How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Ballast ratio

The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.

33· Moderate

How it is worked out

ballast ÷ displacement × 100

Comfort ratio

Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.

48.1· Heavy offshore

How it is worked out

displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft

Capsize screening

A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.

1.62· Below 2

How it is worked out

beam (ft) ÷ (displacement as ft³ of seawater)^⅓

Hull speed

Roughly the speed a displacement hull reaches before it has to climb its own bow wave.

9.5 kn

How it is worked out

1.34 × √(waterline length in ft), in knots

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Fuel and water on one scale: a tank twice the height holds twice as much.

Fuel425 gal
Water412 gal

Design Category

Certified CE design category A (Ocean): the wind and waves the EU Recreational Craft Directive says this boat is designed to take.

D
Sheltered waters
Wind
up to Beaufort 4
Waves
up to 0.3 m
C
Inshore
Wind
up to Beaufort 6
Waves
up to 2 m
B
Offshore
Wind
up to Beaufort 8
Waves
up to 4 m
AThis boat
Ocean
Wind
above Beaufort 8
Waves
above 4 m

Design limits set by the EU Recreational Craft Directive (2013/53/EU), in significant wave height. A category covers the conditions of those below it. It is the limit the boat was designed to, not a promise that it is safe in any conditions within it — that judgement stays with the skipper.

Show the builders' own words

A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.

Dimensions

LOA: —
Hull length: 61.9 ft (18.88 m)
LWL: 50.2 ft (15.3 m)
Beam: 16.9 ft (5.15 m)
Draft (min): 8.2 ft (2.5 m)
Draft (max): —
Air draft: 86.6 ft (26.4 m)
Displacement: 72,752 lb (33,000 kg)
Ballast: 24,251 lb (11,000 kg)
Cabins: 4
Heads: —
Berths: —

Sail Plan

Main sail: —
Jib: —
Genoa: —
Sail area: —
Downwind sail area: —
Rig type: —

Engine and Tanks

Engine: 225 hp (Perkins)
Engine count: 1
Engine manufacturer: Perkins
Propulsion type: shaft drive
Fuel capacity: 425 gal (1,610 L)
Fresh water capacity: 412 gal (1,560 L)
Black water capacity: —

Construction

Mast material: —
Hull material: —
Deck material: —
Keel type: lead on deep bilge
Rudder type: —
Steering wheels: —

Figures read fromthe builder's page

Layouts & Drawings

11 drawings from the builder's page: general arrangement, sail plan, profile.

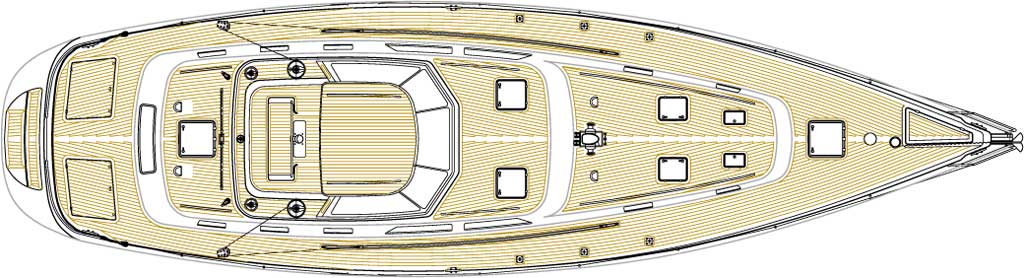

Hr62 deck plan — Hallberg-Rassy

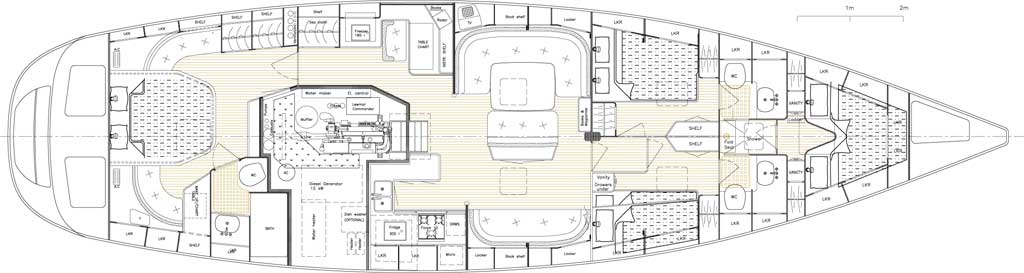

Hr62interior layout1 — Hallberg-Rassy

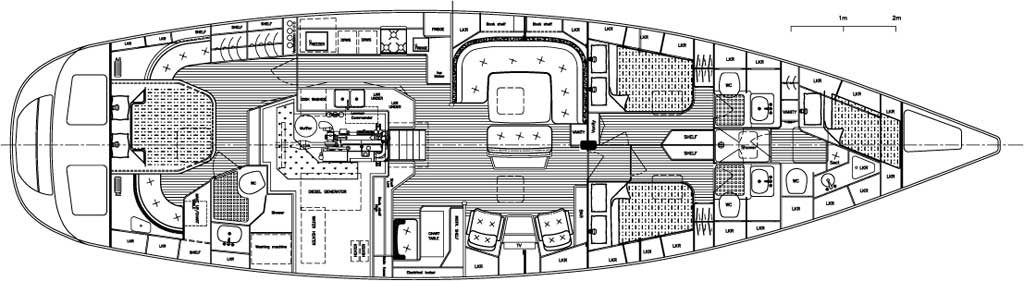

Hr62interior layout2 — Hallberg-Rassy

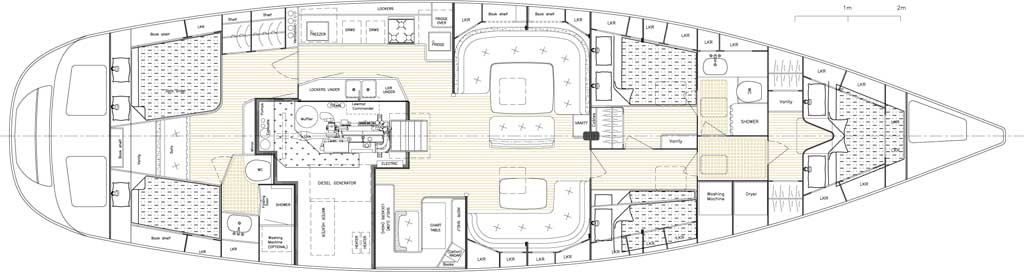

Hr62interior layout3 — Hallberg-Rassy

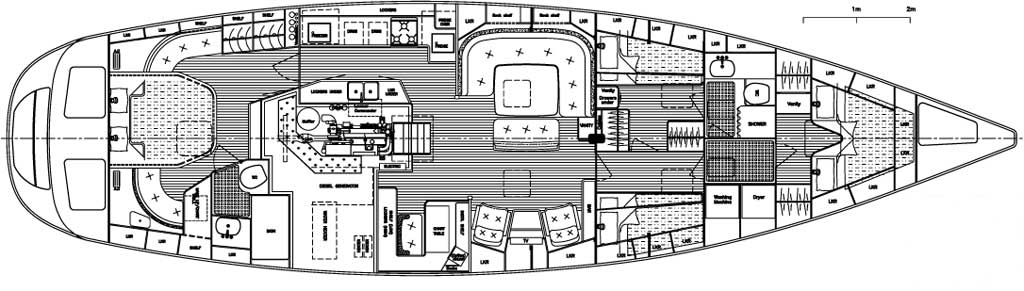

Hr62interior layout4 — Hallberg-Rassy

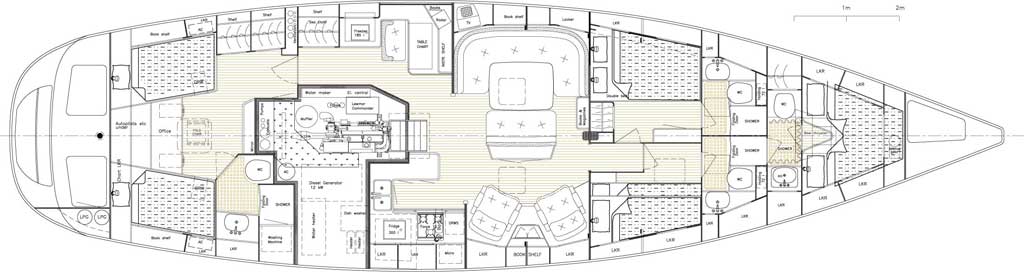

Hr62interior layout5 — Hallberg-Rassy

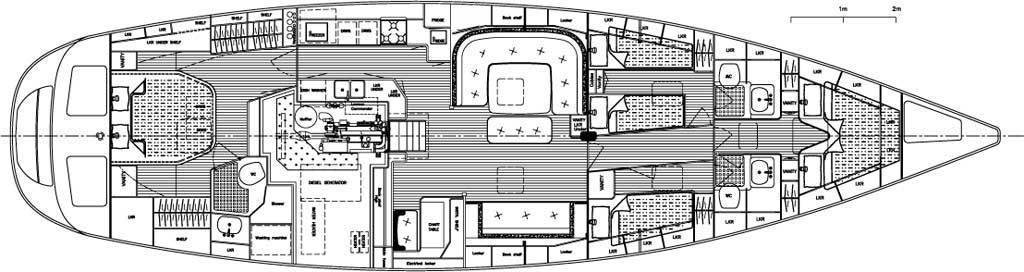

Hr62interior layout6 — Hallberg-Rassy

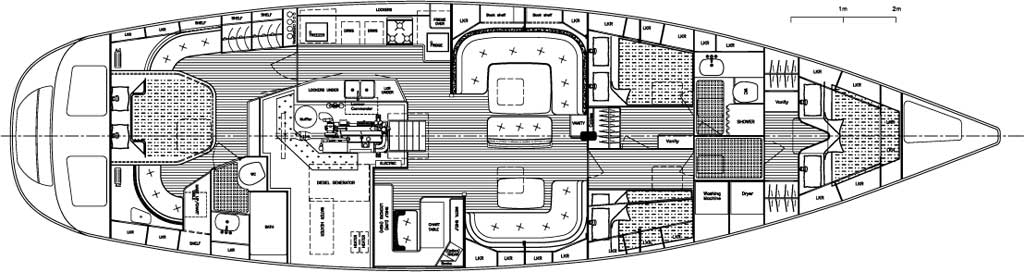

Hr62interior layout7 — Hallberg-Rassy

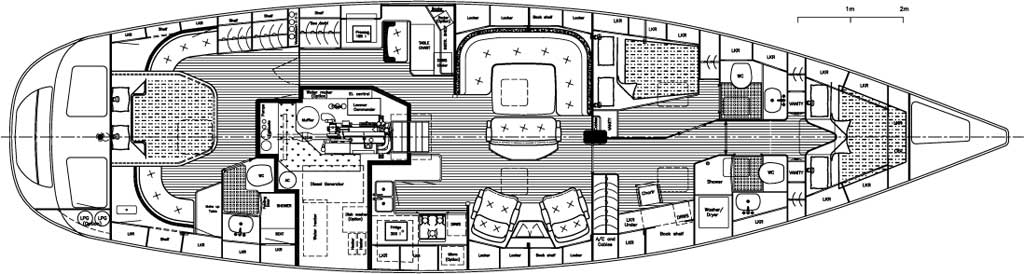

Hr62interior layout8 — Hallberg-Rassy

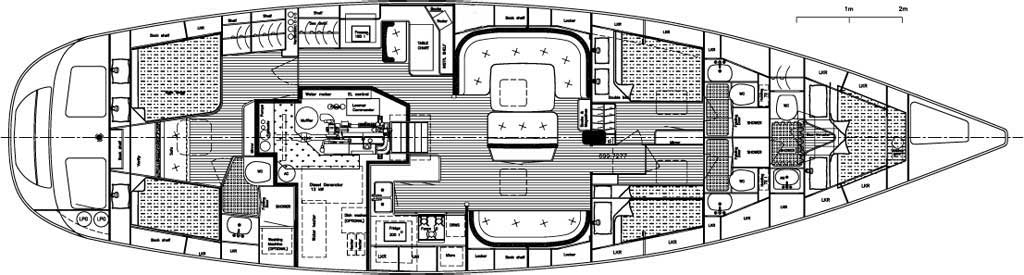

Hr62interior layout9 — Hallberg-Rassy

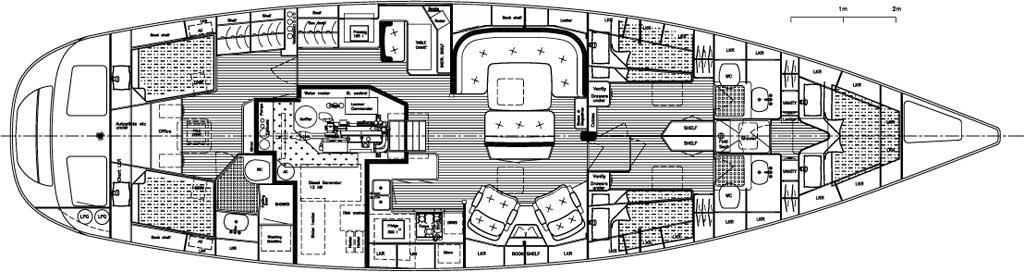

Hr62interior layout10 — Hallberg-Rassy

About Hallberg-Rassy

Premium production

Swedish builder of bluewater cruising sailboats, based in Ellös and formed in 1972, when the Rassy yard took over that of Harry Hallberg (founded in 1943), and still 100% family-owned.

Hallberg-Rassy began as two yards. Harry Hallberg opened his own wooden-boat yard at Kungsviken on the island of Orust in 1943, built the Folkboat and the Kungskryssaren in series, and in 1963 was among the first to build sailing boats in GRP in series -- his P-28, most of its first hundred sold to the USA, was the yard's early export success. Christoph Rassy arrived from Bavaria in 1960, bought the old Hallberg yard at Kungsviken when Hallberg moved to Ellös in the mid-1960s, and in 1966 launched the Rasmus 35, a pioneering long-distance cruiser with a centre cockpit behind a windshield -- the arrangement the yard has kept ever since. When Harry Hallberg retired in 1972 the Rassy yard bought the Ellös premises and the two names merged into Hallberg-Rassy; the first new design under that name, the Monsun 31, became the bestseller with 904 built by 1982. Germán Frers has drawn every model since 1988. The yard is still in Ellös and still family-owned.
