Custom Line Navetta 35

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: explorer · range 1750 nm

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

113.2 ft (34.5 m)

Hull length

112.9 ft (34.4 m)

LWL

—

Beam

25.3 ft (7.7 m)

Draft (min)

7.2 ft (2.2 m)

Draft (max)

7.2 ft (2.2 m)

Air draft

—

Displacement

388,013 lb (176,000 kg)

Ballast

—

Cabins

5

Heads

—

Berths

—

Performance

Maximum speed

15 kn

Cruising speed

12 kn

Range

1750 nm

Guests

—

Crew

—

Engine and Tanks

Engine

1400 hp (MAN)

Engine count

—

Engine manufacturer

MAN

Propulsion type

—

Fuel capacity

5,099 gal (19,300 L)

Fresh water capacity

845 gal (3,200 L)

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

LWL

page prints '287 m 941 ft 7 in' -- misprint, left empty

Range

1750 nm at economic cruising speed 10 kn

Laden displacement

201000 kg 443,129 lbs

People on board

20 (certified persons, not guests)

Engine

MAN V12 LE446 1400 CR -- 1400 HP each as printed; engine count not stated

Crew cabins

4

Engine power basis

Engine HP as printed (per engine)

Displacement basis

unladen

Layouts & Drawings

1 drawing from the builder's page: general arrangement, sail plan, profile.

•

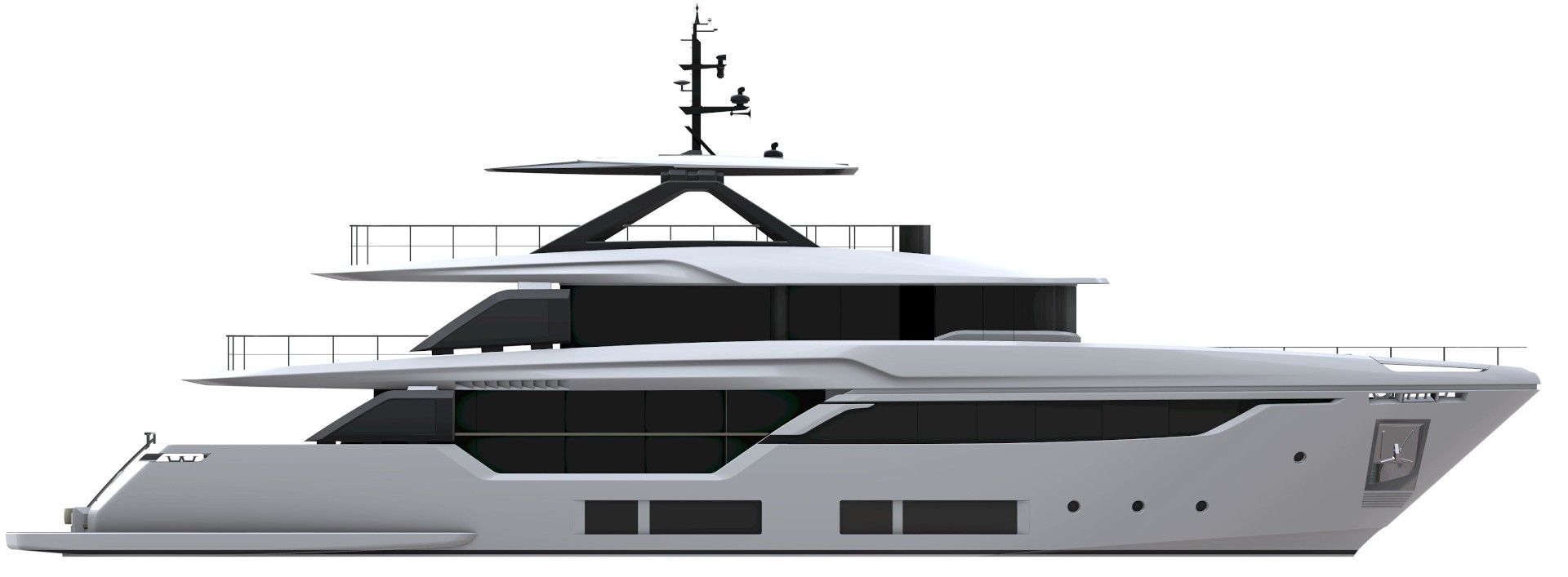

  Layout 1 — Ferretti Group

Films of this model from the builder's official YouTube channel (Custom Line Yacht). They are the builder's own; the figures above are the reference.

Videos whose title names the Custom Line Navetta 35, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.

About Custom Line

Semi-custom

Ferretti Group's semi-custom superyacht brand, founded in 1996 and built entirely at the group's Ancona superyacht yard — the planing Saetta line (106', 128', 140'), the displacement Navetta line (30, 35, 38, 42) and the aluminium Custom Line 50 — with almost 300 yachts at sea.

The Custom Line Range

Every model Custom Line publishes, by length — where this one sits in the range.

1. Custom Line 50163.7 ft
2. Custom Line Saetta 140'139.8 ft
3. Custom Line Navetta 42137.1 ft
4. Custom Line Saetta 128'130.6 ft
5. Custom Line Navetta 38127.2 ft
6. Custom Line Navetta 35· this model113.2 ft
7. Custom Line Saetta 106'107.7 ft
8. Custom Line Navetta 3093.3 ft
