Horizon CC110

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: explorer

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

110 ft (33.53 m)

Hull length

—

LWL

93.5 ft (28.49 m)

Beam

23.5 ft (7.16 m)

Draft (min)

4.8 ft (1.47 m)

Draft (max)

4.8 ft (1.47 m)

Air draft

—

Displacement

266,759 lb (121,000 kg)

Ballast

—

Cabins

3

Heads

—

Berths

—

Performance

Maximum speed

—

Cruising speed

—

Range

—

Guests

—

Crew

2

Engine and Tanks

Engine

2600 hp (MTU)

Engine count

2

Engine manufacturer

MTU

Propulsion type

—

Fuel capacity

4,000 gal (15,140 L)

Fresh water capacity

502 gal (1,900 L)

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Crew cabins

2

Generator

Twin Onan 50 Kw (50 Hz)

Build 'Lady Gaga'

loaM 33.53, lwlM 29.72, beamM 6.71, draftMinM 1.83, displacementKg 105000, cabinsMax 4; Twin CAT C32A 1,900hp Twin CAT C32A 1,900hp -- the stored figures are the build 'Abaco'

Engines

Twin MTU16V2000M96L 2,600HP

Cabins

3 Guest + 2 Crew (guest cabins stored; crew cabins 2)

Engine power basis

per engine as printed

Displacement basis

not stated; page prints 121 t 266,760 lb

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

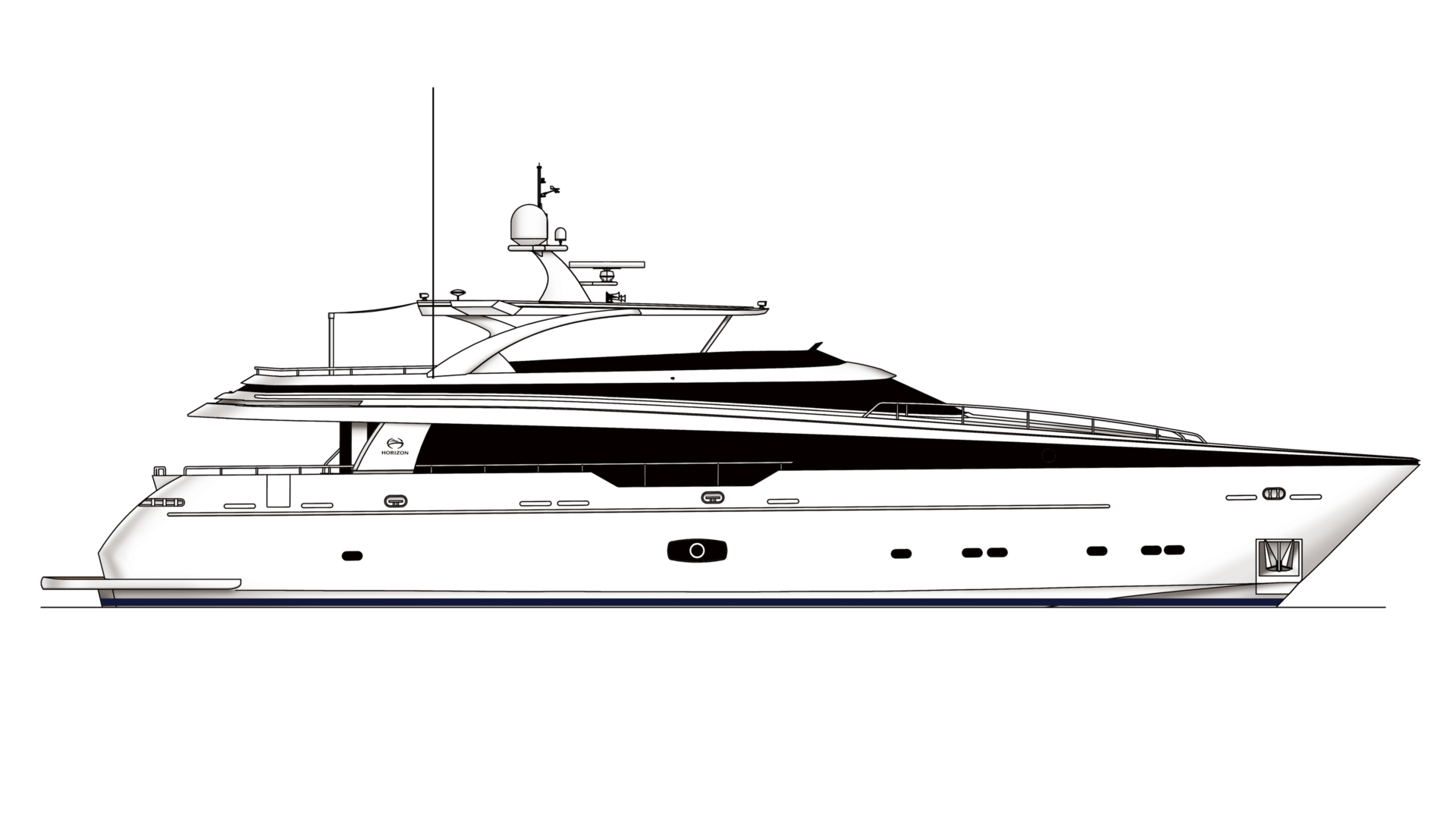

  3840X2160-CC110-ABACO-335-GA-P-1920x1080 — Horizon Yachts

•

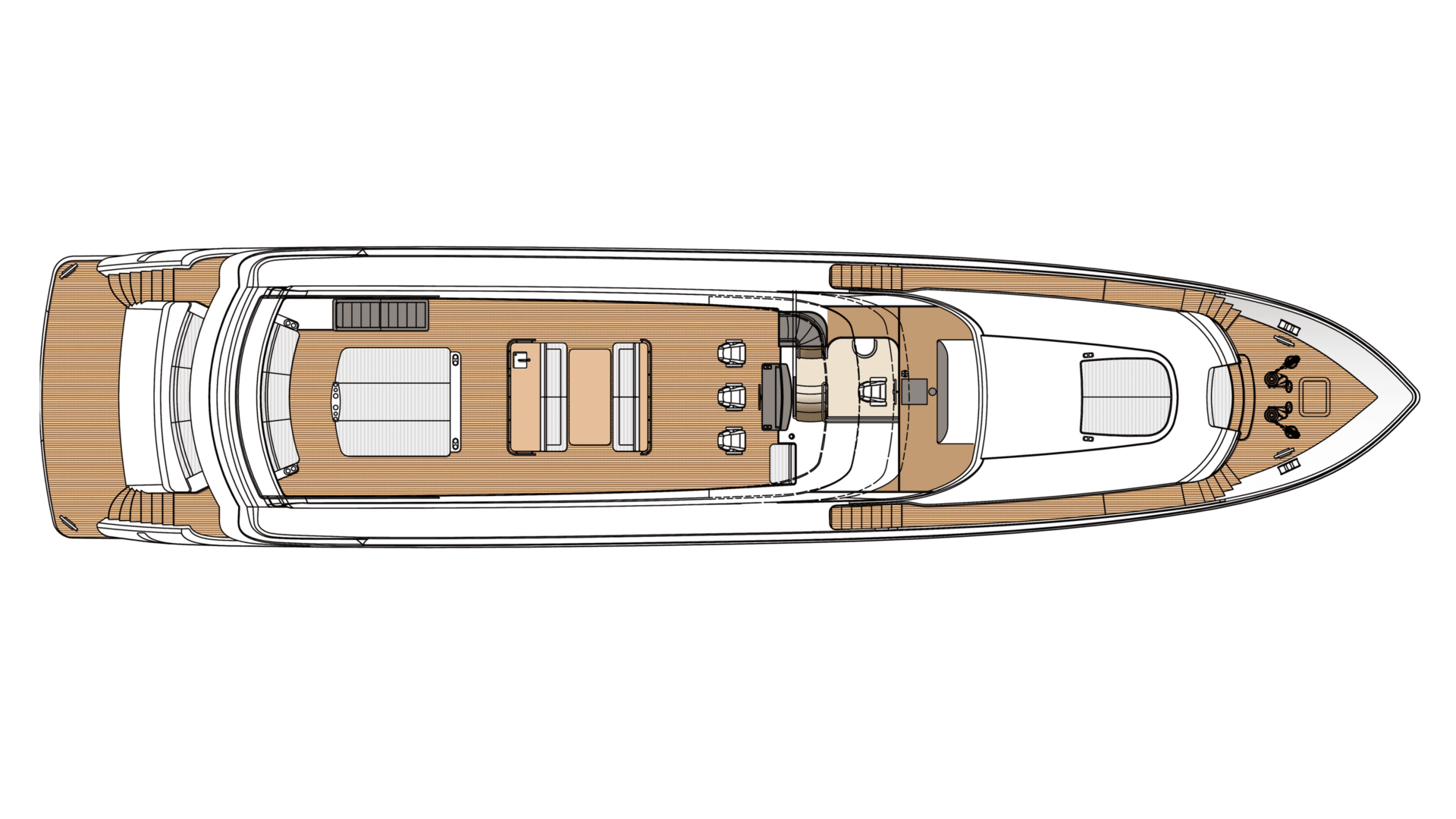

  3840X2160-CC110-ABACO-335-GA-B-1920x1080 — Horizon Yachts

•

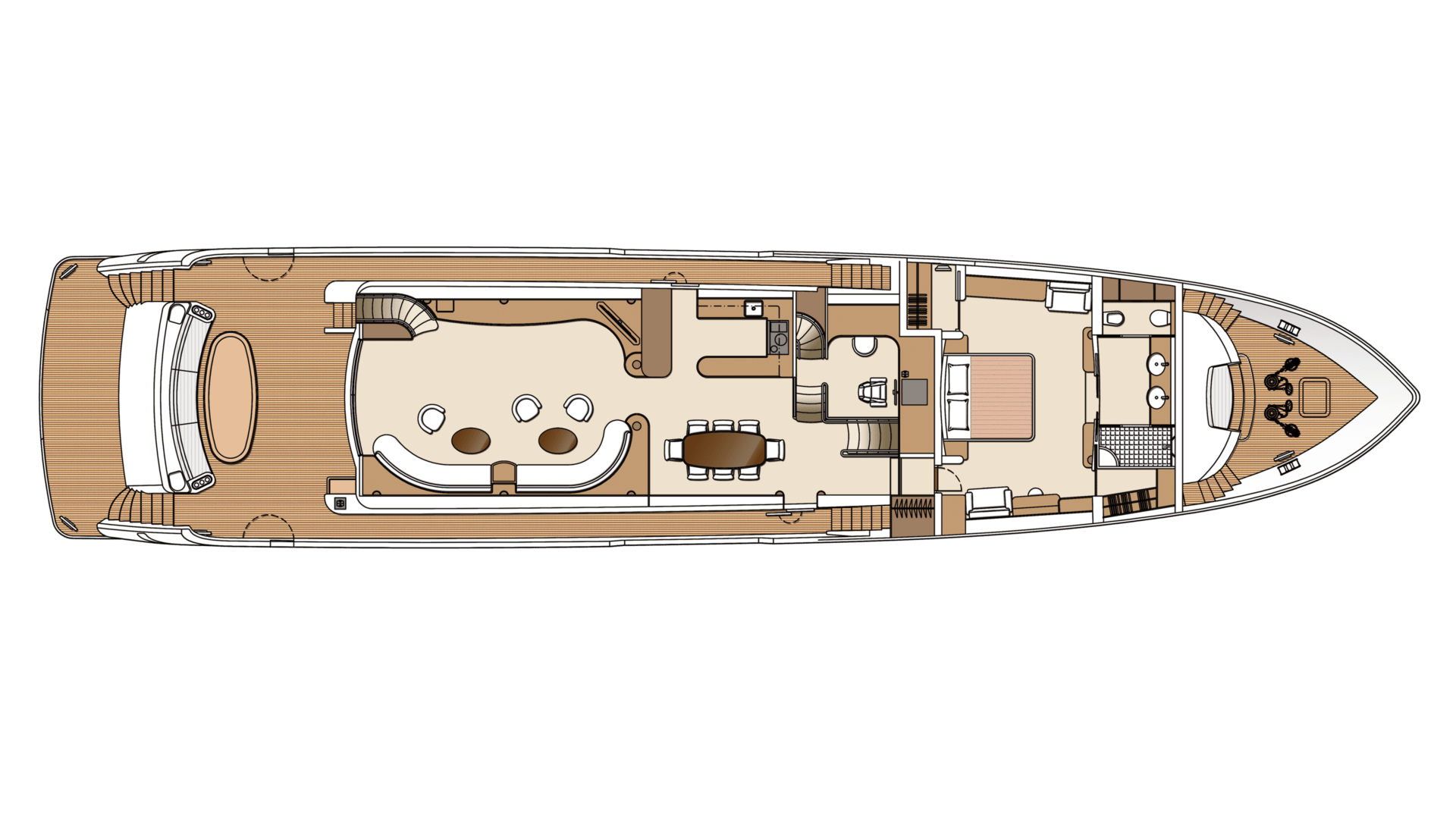

  3840X2160-CC110-ABACO-335-GA-M-1920x1080 — Horizon Yachts

•

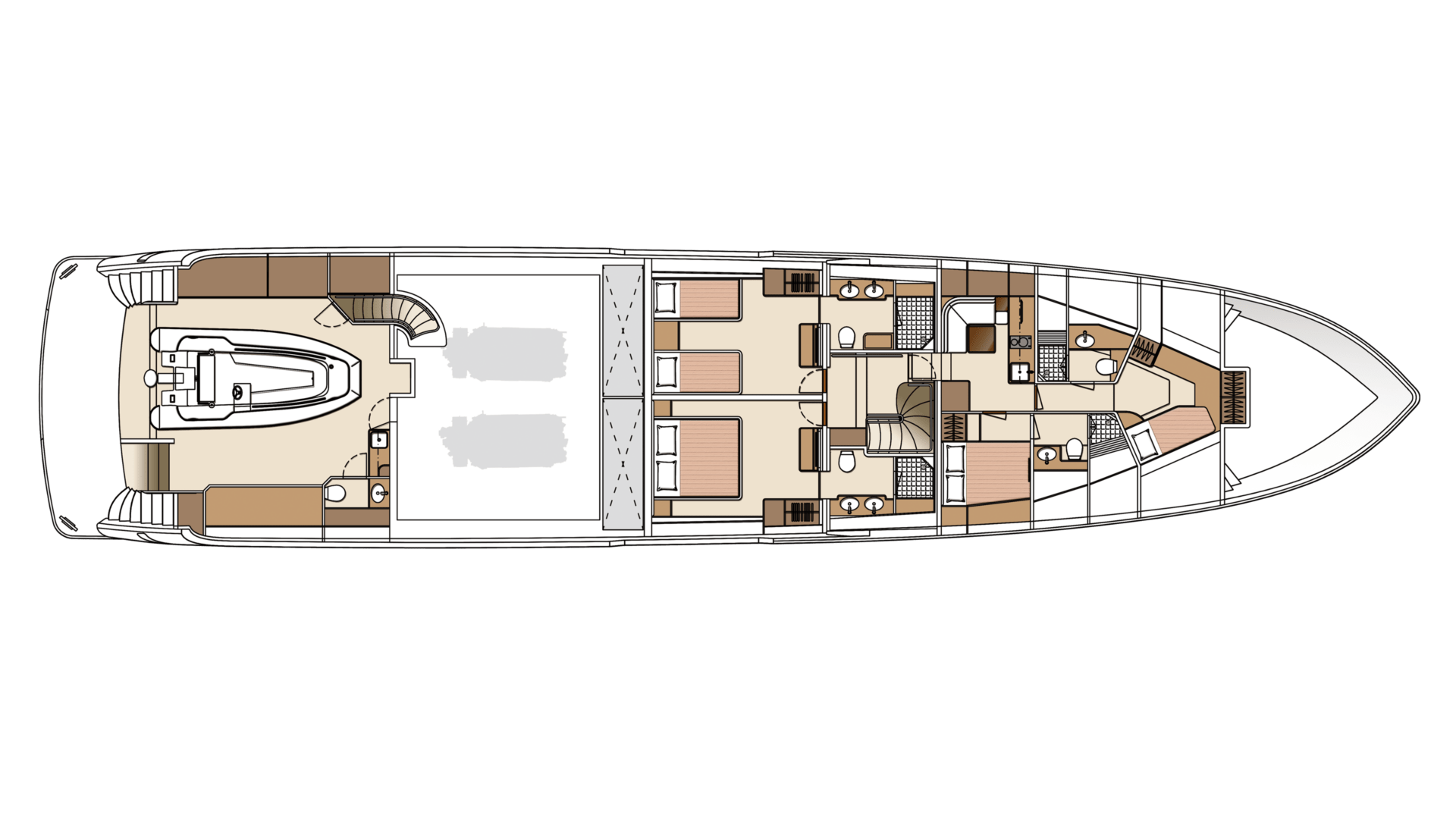

  3840X2160-CC110-ABACO-335-GA-L-1920x1080 — Horizon Yachts

About Horizon Yachts

Semi-custom

Taiwan's largest yacht builder, founded in 1987 by naval architect John Lu in Kaohsiung — semi-custom motor yachts from 62 to 150 feet across the FD (Fast Displacement), E, EP, P, RP, CC explorer, PC power-catamaran and V series, with some 900 yachts delivered and a place among the world's top ten builders.

Horizon Yacht was co-founded at Kaohsiung, Taiwan, in 1987 by John Lu, Gong Shan Chiai and Cheng Shun Hui. Lu, a naval architect by training and the company's chief executive, set out to build the yachts his clients dreamed of, and over the years reinvested in the yards -- solving problems of production scale with specialised processes, and redeveloping each facility around its own speciality. The Horizon Group grew out of that as the organisation tying four shipyards together: Horizon Yacht, Atech Composites, Vision Yachts and Premier Yacht, so that ideas and resources pass between them. A fifth was added later, the Horizon City Marina, the first facility in Taiwan accredited under the Global Gold Anchor Scheme. Horizon builds luxury yachts from 60 to 150 feet across eight series, and is the first and so far only Far Eastern member of SYBAss, the Superyacht Builders Association.

The Horizon Yachts Range

Every model Horizon Yachts publishes, by length — where this one sits in the range.

1. Horizon FD130125 ft
2. Horizon RP120120 ft
3. Horizon CC115115 ft
4. Horizon FD110111.5 ft
5. Horizon CC110· this model110 ft
6. Horizon RP110110 ft
7. Horizon FD100101.6 ft
8. Horizon E9897.9 ft
9. Horizon FD9796.5 ft
