Horizon RP120

Summary

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

120 ft (36.58 m)

Hull length

—

LWL

99.3 ft (30.27 m)

Beam

25 ft (7.62 m)

Draft (min)

6.6 ft (2.01 m)

Draft (max)

6.6 ft (2.01 m)

Air draft

—

Displacement

343,921 lb (156,000 kg)

Ballast

—

Cabins

4

Heads

—

Berths

—

Performance

Maximum speed

—

Cruising speed

—

Range

—

Guests

—

Crew

3

Engine and Tanks

Engine

1800 hp (Caterpillar)

Engine count

2

Engine manufacturer

Caterpillar

Propulsion type

—

Fuel capacity

7,001 gal (26,500 L)

Fresh water capacity

800 gal (3,030 L)

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Crew cabins

3

Cabins

4 Guest + 3 Crew (guest cabins stored; crew cabins 3)

Generator

Twin KOHLER 55kW (50Hz) or 55kW (60Hz)

Engines

Twin CAT C32A 1,800hp

Engine power basis

per engine as printed

Displacement basis

not stated; page prints 156 t 343,920 lb

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

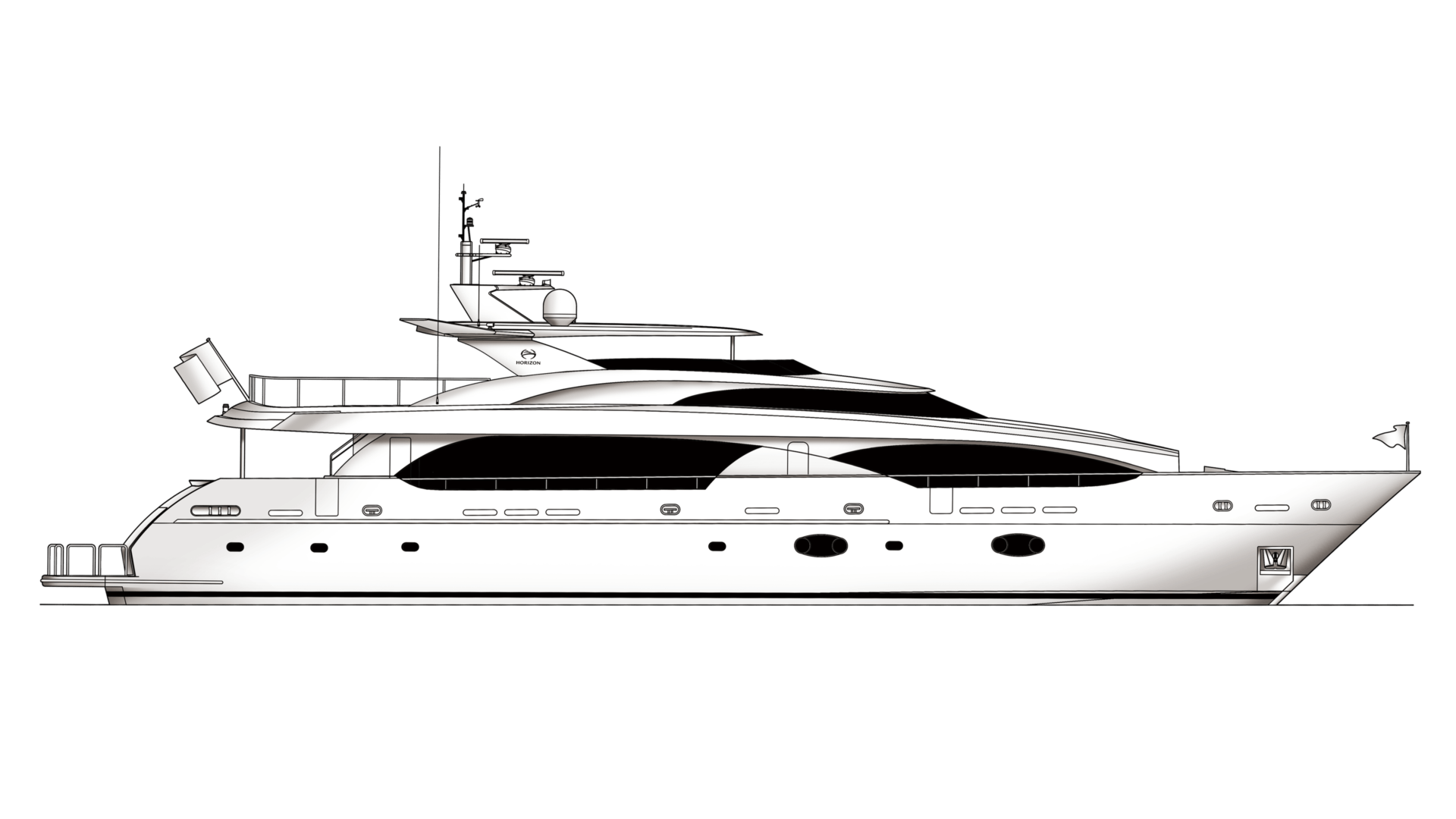

  3840X2160-RP120-STD-GA-P-1920x1080 — Horizon Yachts

•

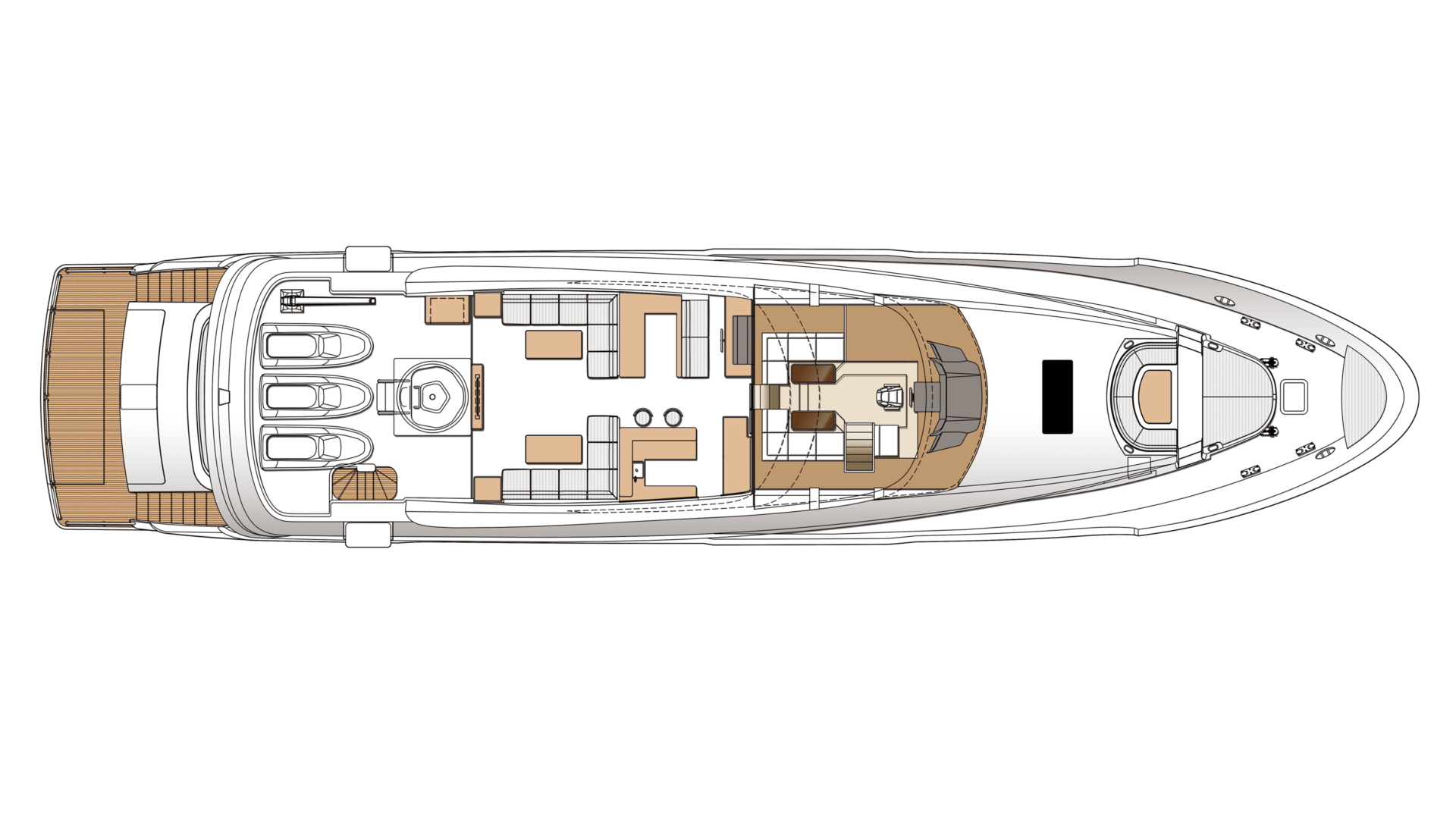

  3840X2160-RP120-STD-GA-B-1920x1080 — Horizon Yachts

•

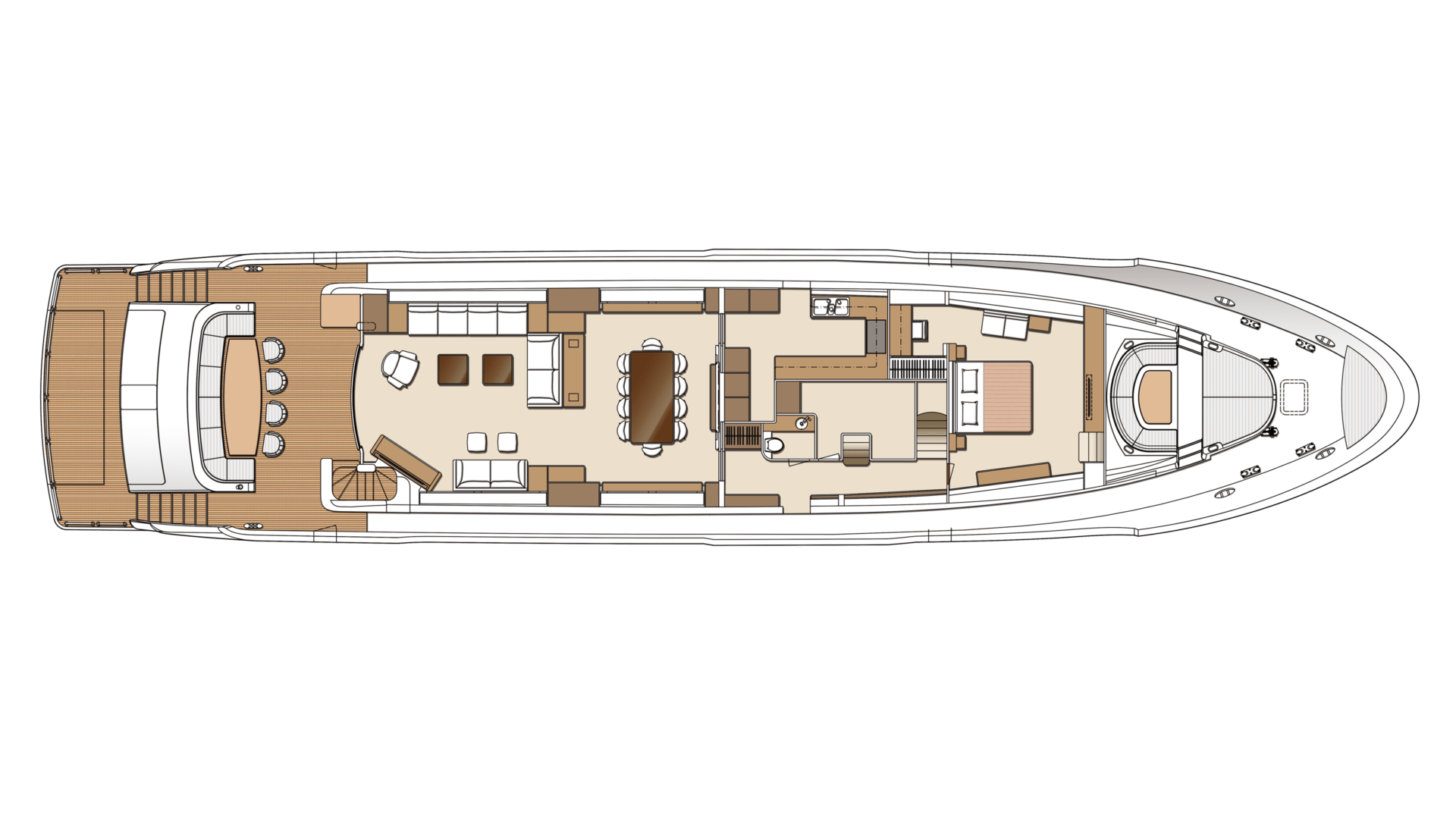

  3840X2160-RP120-STD-GA-M-1920x1080 — Horizon Yachts

•

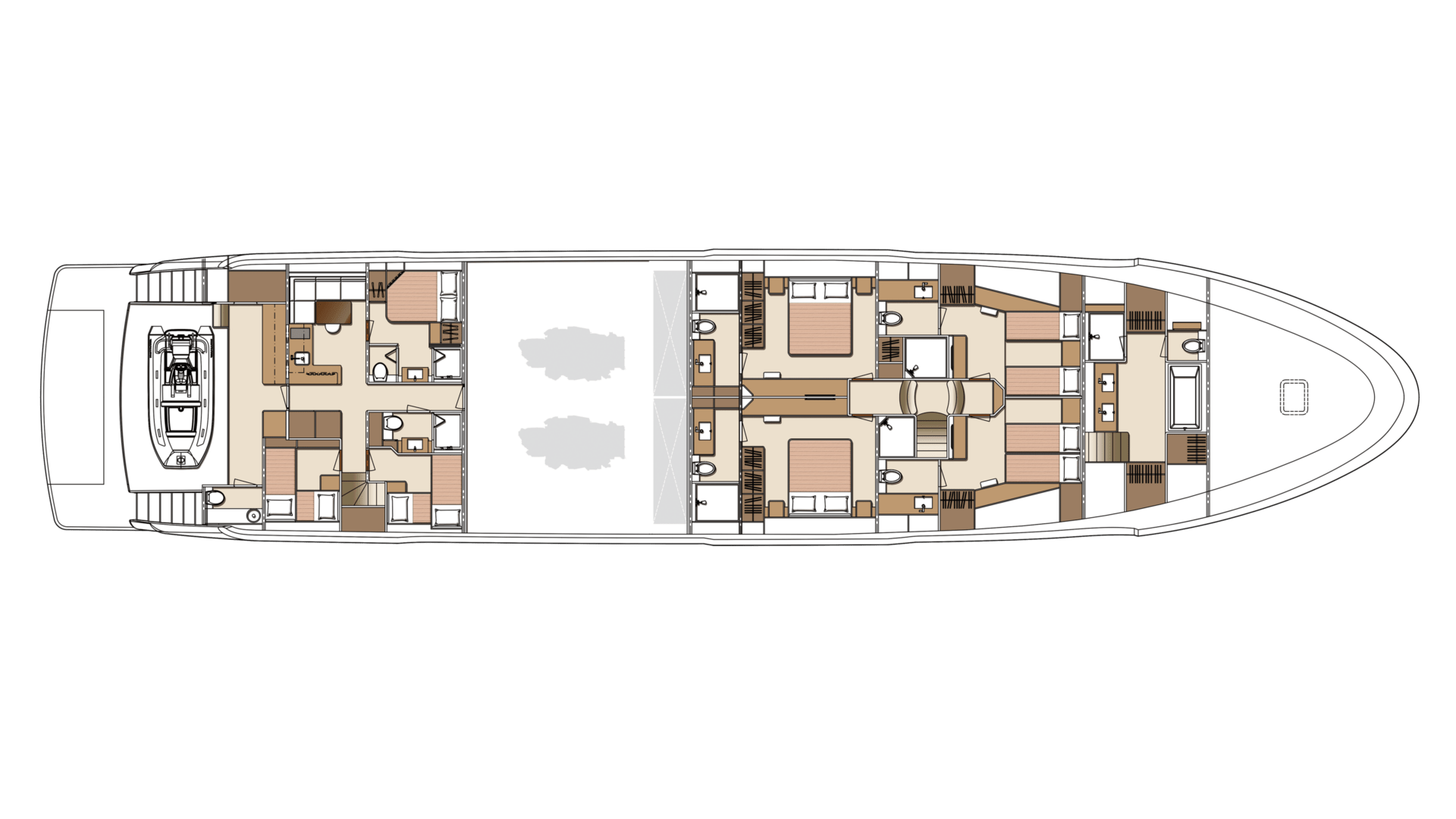

  3840X2160-RP120-STD-GA-L-1920x1080 — Horizon Yachts

About Horizon Yachts

Semi-custom

Taiwan's largest yacht builder, founded in 1987 by naval architect John Lu in Kaohsiung — semi-custom motor yachts from 62 to 150 feet across the FD (Fast Displacement), E, EP, P, RP, CC explorer, PC power-catamaran and V series, with some 900 yachts delivered and a place among the world's top ten builders.

Horizon Yacht was co-founded at Kaohsiung, Taiwan, in 1987 by John Lu, Gong Shan Chiai and Cheng Shun Hui. Lu, a naval architect by training and the company's chief executive, set out to build the yachts his clients dreamed of, and over the years reinvested in the yards -- solving problems of production scale with specialised processes, and redeveloping each facility around its own speciality. The Horizon Group grew out of that as the organisation tying four shipyards together: Horizon Yacht, Atech Composites, Vision Yachts and Premier Yacht, so that ideas and resources pass between them. A fifth was added later, the Horizon City Marina, the first facility in Taiwan accredited under the Global Gold Anchor Scheme. Horizon builds luxury yachts from 60 to 150 feet across eight series, and is the first and so far only Far Eastern member of SYBAss, the Superyacht Builders Association.

The Horizon Yachts Range

Every model Horizon Yachts publishes, by length — where this one sits in the range.

1. Horizon EP150147.6 ft
2. Horizon P140136 ft
3. Horizon FD130125 ft
4. Horizon RP120· this model120 ft
5. Horizon CC115115 ft
6. Horizon FD110111.5 ft
7. Horizon CC110110 ft
8. Horizon RP110110 ft
9. Horizon FD100101.6 ft
