Custom Line Saetta 140'

Name: Custom Line Saetta 140'
Brand: Custom Line

In production

1 / 10

82045 — Ferretti Group

Summary

Motor MonohullInboard Diesel

Length overall: 139.8 ft
Beam: 28 ft
Maximum speed: 21.5 kn
Cruising speed: 18 kn
Range: 1850 nm
Displacement: 496,039 lb
Engine power: 2638 hp
Cabins: 5

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Best Suited For

Bluewater Cruising
From the published figures: range 1850 nm

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Speed

Cruising speed18 kn
Top speed21.5 kn

Power to weight

Total engine power per tonne of published displacement — more means livelier acceleration for the hull. Drawn for motor yachts.

not published: engine count

Tanks

Fuel and water on one scale: a tank twice the height holds twice as much.

Fuel7,502 gal
Water1,057 gal

Dimensions

LOA: 139.8 ft (42.61 m)
Hull length: 139.8 ft (42.61 m)
LWL: 119.1 ft (36.3 m)
Beam: 28 ft (8.54 m)
Draft (min): 7.7 ft (2.35 m)
Draft (max): 7.7 ft (2.35 m)
Air draft: —
Displacement: 496,039 lb (225,000 kg)
Ballast: —
Cabins: 5
Heads: 6
Berths: —

Performance

Maximum speed: 21.5 kn
Cruising speed: 18 kn
Range: 1850 nm
Guests: —
Crew: —

Engine and Tanks

Engine: 2638 hp (MTU)
Engine count: —
Engine manufacturer: MTU
Propulsion type: shaft line
Fuel capacity: 7,502 gal (28,400 L)
Fresh water capacity: 1,057 gal (4,000 L)
Black water capacity: —

Construction

Hull material: —
Deck material: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Crew cabins: 4
Bathrooms: 6 (+ crew quarter 4)
Range: 1850 nm at economic cruising speed 11 kn
Laden displacement: 265000 kg 584,225 lbs
People on board: 22 (certified persons, not guests)
Engine: MTU 16V 2000 M96L -- 2638 HP each as printed; engine count not stated
Engine power basis: Engine HP as printed (per engine)
Displacement basis: unladen

Figures read fromcustomline-yacht.com/en-us/Model/p/8-288-520-PUBread 9/14/2026

Layouts & Drawings

5 drawings from the builder's page: general arrangement, sail plan, profile.

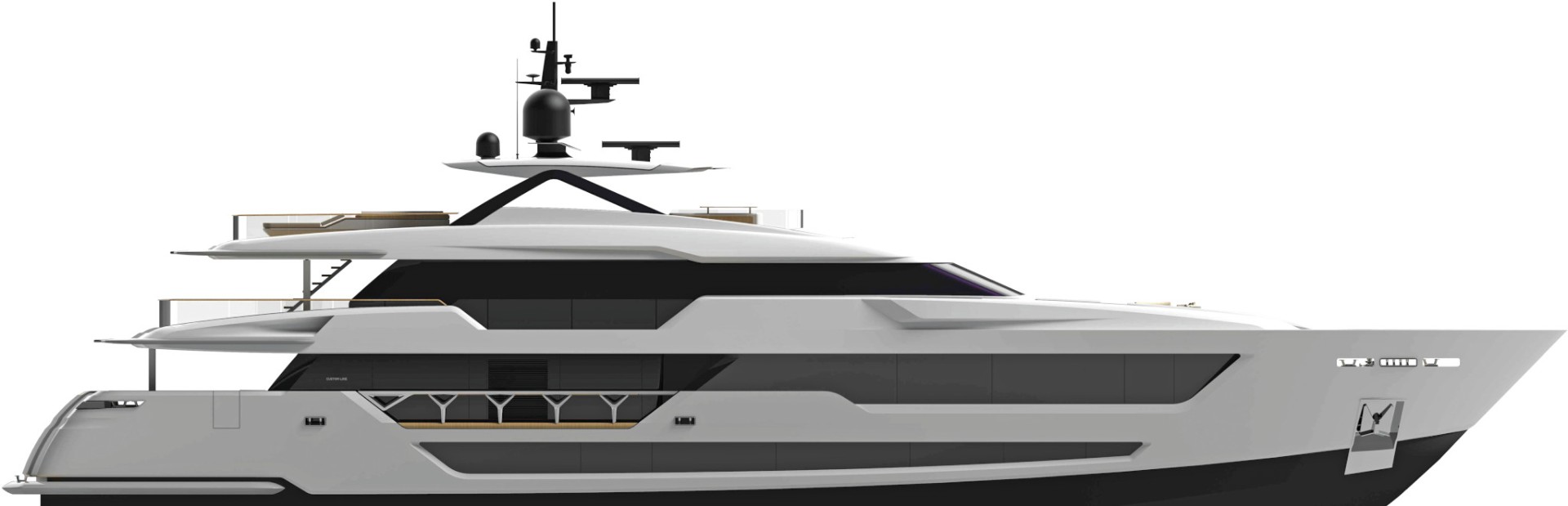

Layout 1 — Ferretti Group

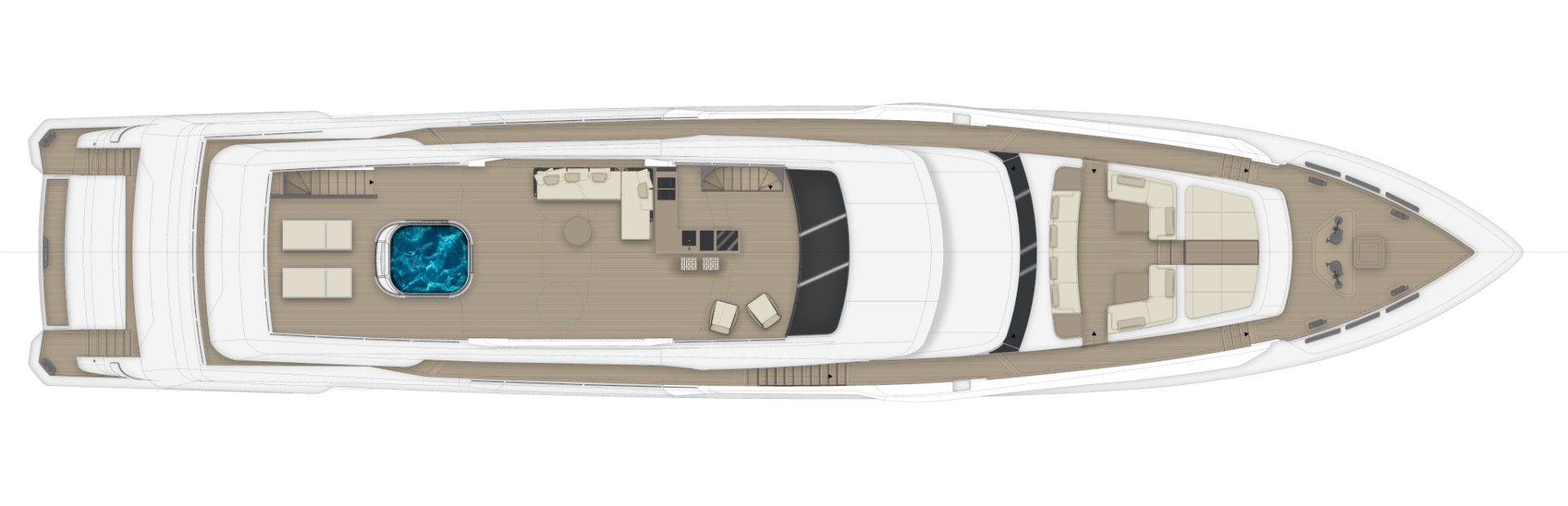

Layout 2 — Ferretti Group

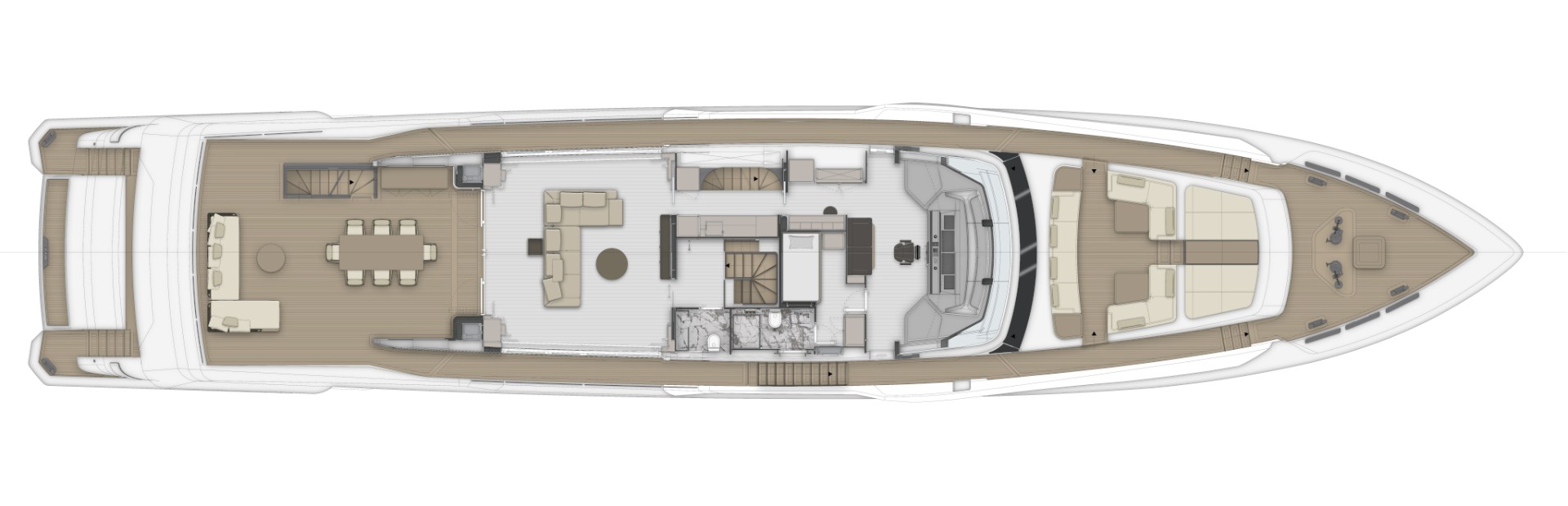

Layout 3 — Ferretti Group

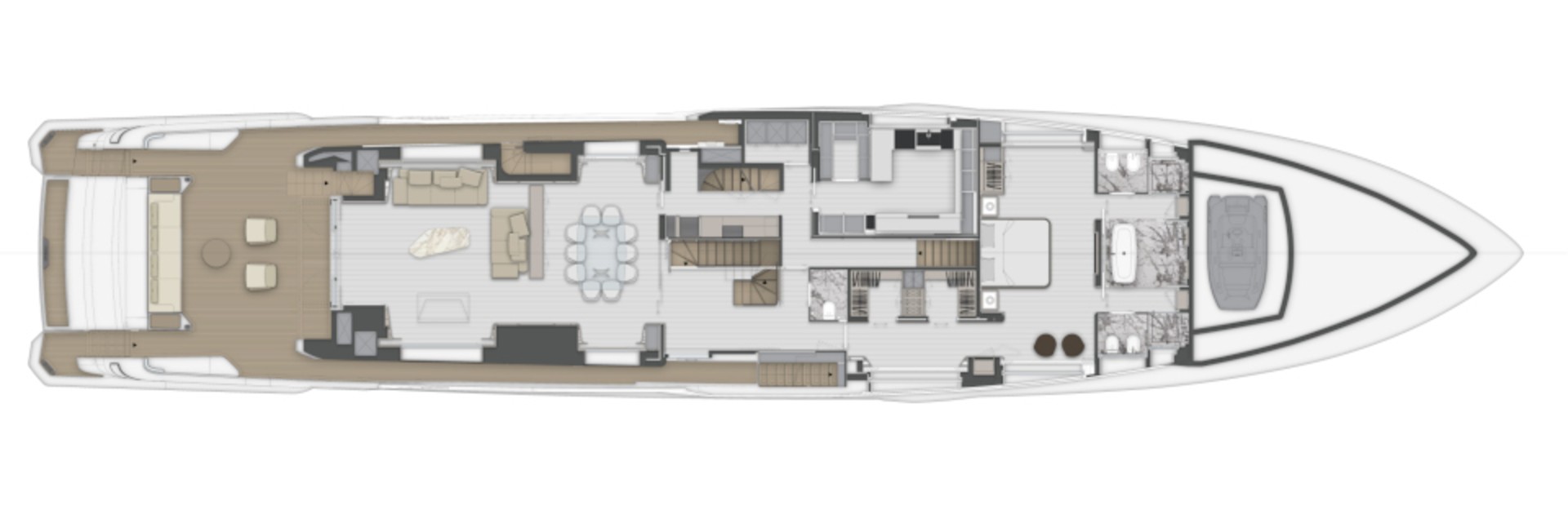

Layout 4 — Ferretti Group

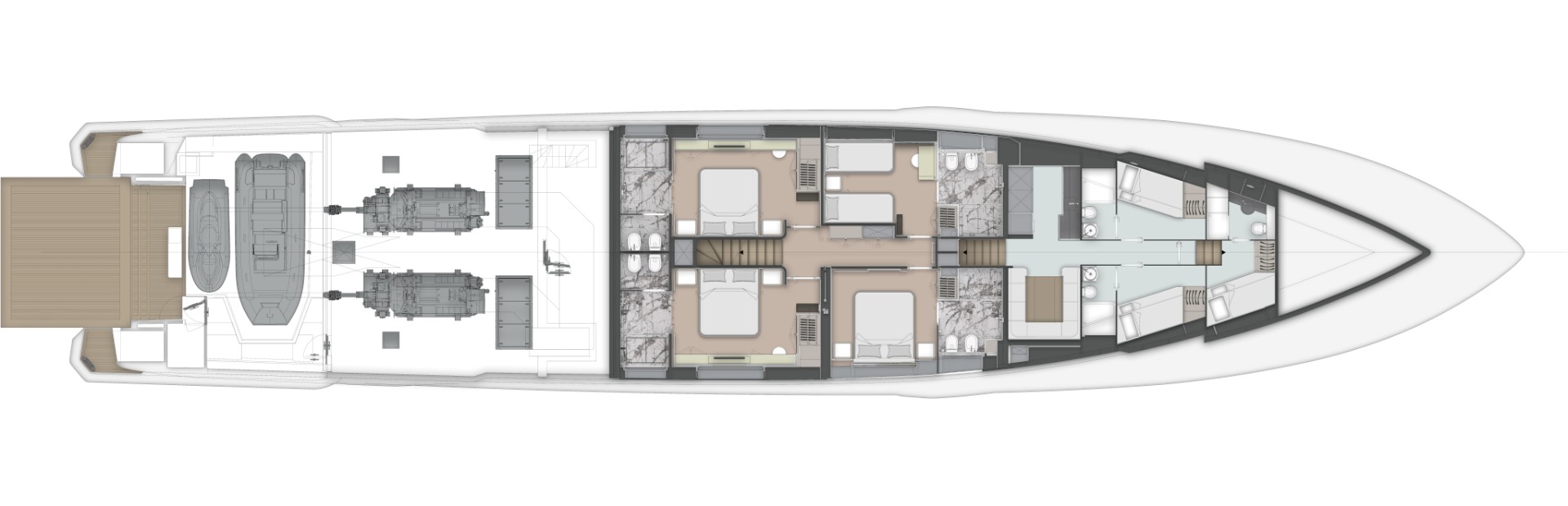

Layout 5 — Ferretti Group

About Custom Line

Semi-custom

Ferretti Group's semi-custom superyacht brand, founded in 1996 and built entirely at the group's Ancona superyacht yard — the planing Saetta line (106', 128', 140'), the displacement Navetta line (30, 35, 38, 42) and the aluminium Custom Line 50 — with almost 300 yachts at sea.
