Riviera 505 SUV

Summary

Best Suited For

• Coastal Cruising

  From the published figures: CE Category B · LOA 17.01 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

55.8 ft (17.01 m)

Hull length

50.6 ft (15.43 m)

LWL

—

Beam

16.3 ft (4.96 m)

Draft (min)

—

Draft (max)

4.5 ft (1.38 m)

Air draft

—

Displacement

54,013 lb (24,500 kg)

Ballast

—

Cabins

3

Heads

—

Berths

6

Performance

Maximum speed

—

Cruising speed

—

Range

—

Guests

—

Crew

—

Engine and Tanks

Engine

725 hp (Volvo Penta)

Engine count

2

Engine manufacturer

Volvo Penta

Propulsion type

IPS pods

Fuel capacity

872 gal (3,300 L)

Fresh water capacity

164 gal (620 L)

Black water capacity

40 gal (151 L)

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Engine options

Volvo Penta D11 IPS 950 (2×) 533 kW ea 725 hp ea

Total

12.40 m²

Cockpit Area

6.50 m²

Alfresco Deck

5.90 m²

Length basis

LOA including swim platform and bow sprit; hull length Lh to ISO 8666

Sleeping capacity as printed

6 persons

Displacement basis

dry weight, approximate

Draft basis

maximum draft including propellers

Engine power basis

per engine as printed ('hp ea'); min = first option, max = largest option

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

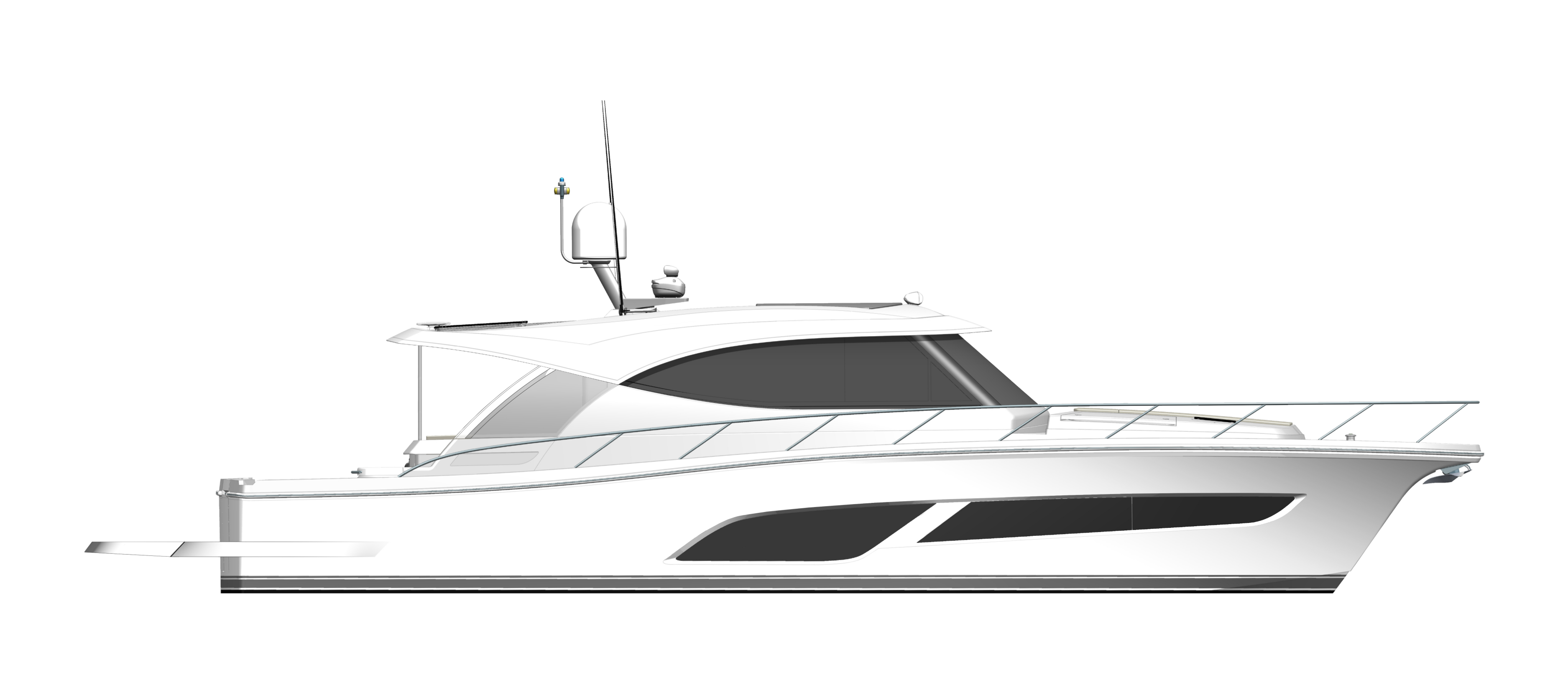

  505-SUV-GA-Profile-1 — Riviera Australia

•

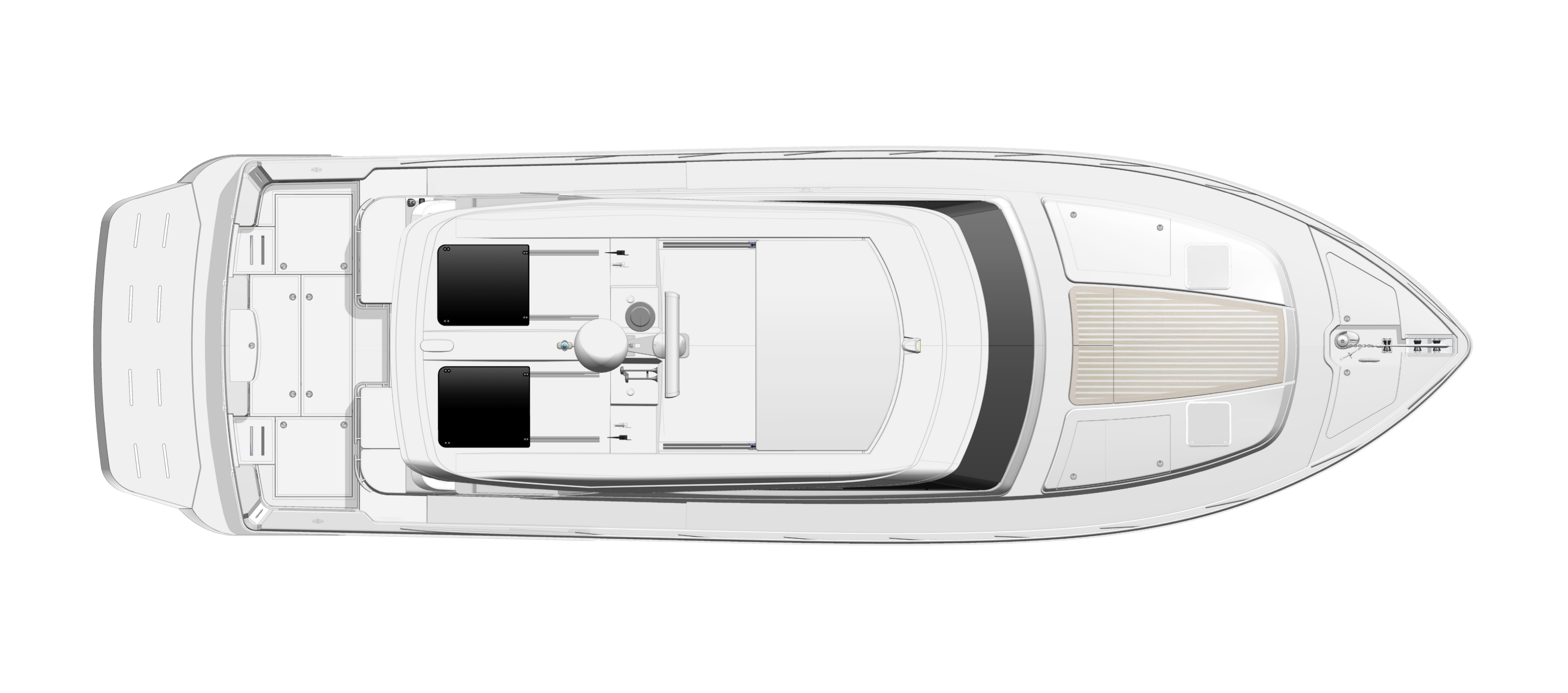

  505-SUV-GA-Hardtop-1 — Riviera Australia

•

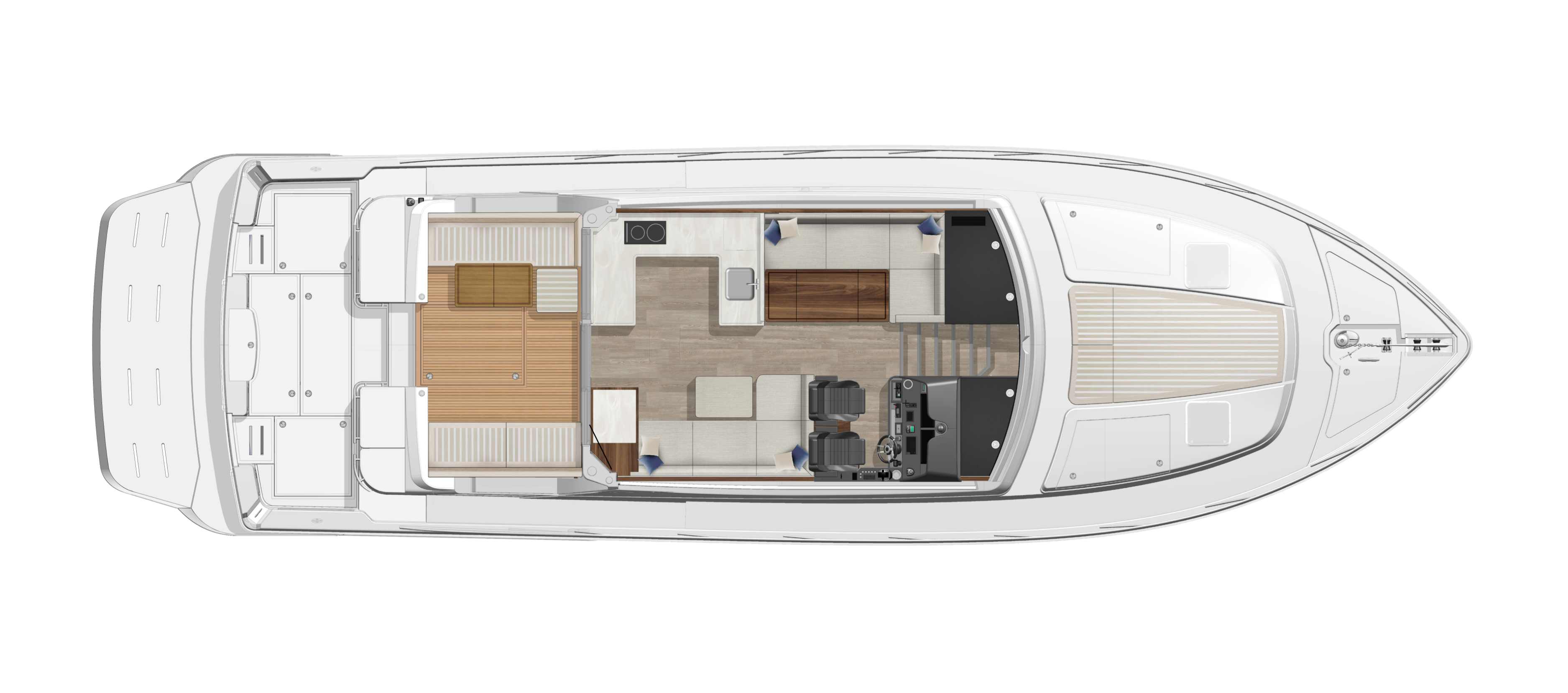

  505-SUV-GA-Saloon-Deck-1 — Riviera Australia

•

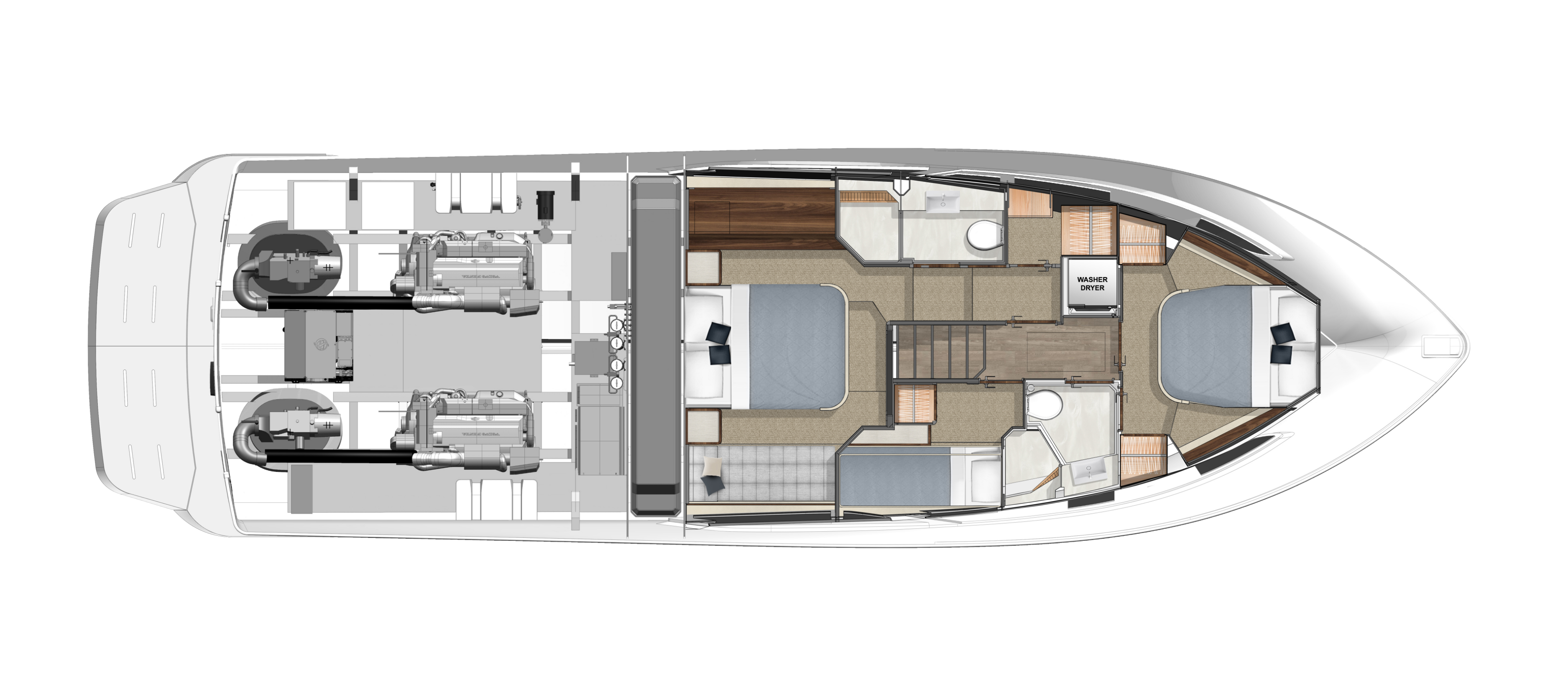

  505-SUV-GA-Accommodation-Deck-1 — Riviera Australia

About Riviera

Premium production

Australia's premium luxury motor yacht builder since 1980 — twenty-one current models in five collections from the 13.3-metre 395 SUV to the 24.8-metre 78 Motor Yacht, handcrafted at a 16.8-hectare site at Coomera on the Gold Coast for more than 6,000 owners worldwide.

Riviera launched with a single model, the 38 MKI, in Sydney in 1980, and moved the following year to the Gold Coast in Queensland with a staff of five, building eight boats that year. Through the 1980s a dozen models were designed, built and launched, and the first were exported to the United States and Europe. By the early 1990s three new models had won Modern Boating's Boat of the Year three years running. In 1998, with 280 people on the payroll, construction began on a new facility at Coomera, and many handcrafted models came out of it in the early 2000s, followed by awards and a growing international dealer network. In March 2012 Rodney Longhurst -- a Gold Coast developer, and a qualified builder and joiner by trade -- acquired the company; he is now chairman, and says his aim on buying Riviera was to make it one of the great names in boating. Under Longhurst and chief executive Wes Moxey the collections continue to be refined.
