Numarine 47MXP

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: explorer · range 6000 nm

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

153.2 ft (46.7 m)

Hull length

—

LWL

—

Beam

30.3 ft (9.25 m)

Draft (min)

7.7 ft (2.35 m)

Draft (max)

7.7 ft (2.35 m)

Air draft

—

Displacement

992,079 lb (450,000 kg)

Ballast

—

Cabins

5–6

Heads

—

Berths

—

Performance

Maximum speed

16 kn

Cruising speed

12 kn

Range

6000 nm

Guests

12

Crew

10

Engine and Tanks

Engine

1450 hp (MAN)

Engine count

2

Engine manufacturer

MAN

Propulsion type

—

Fuel capacity

15,058 gal (57,000 L)

Fresh water capacity

1,585 gal (6,000 L)

Black water capacity

1,453 gal (5,500 L)

Construction

Hull material

Steel

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Range

6,000 nm @ 9 knots

Superstructure material

Aluminium

Accommodation

10 or 12 guests + 9/10 crew

Cabins

5 or 6 guest + 5 crew

Build time

36 Months

Gross tonnage

498

Engines

Twin MAN D2868 LE 489 1450hp (1.066Kw) @2100 rpm Medium Duty IMO TIII with SCR System

Economic speed

9 kn

Hull type

Displacement

Displacement basis

full load

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

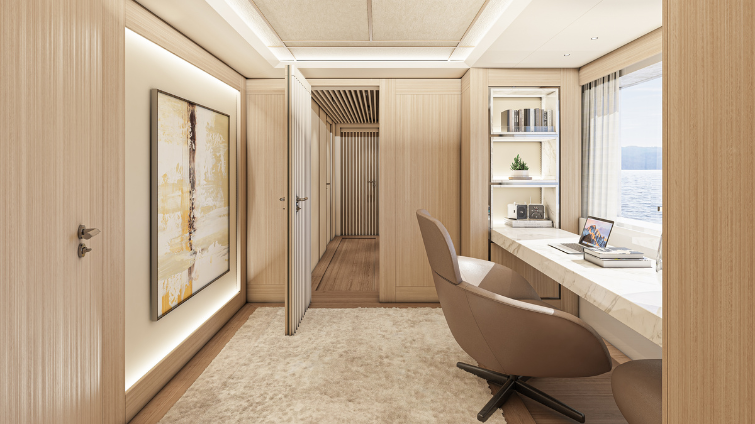

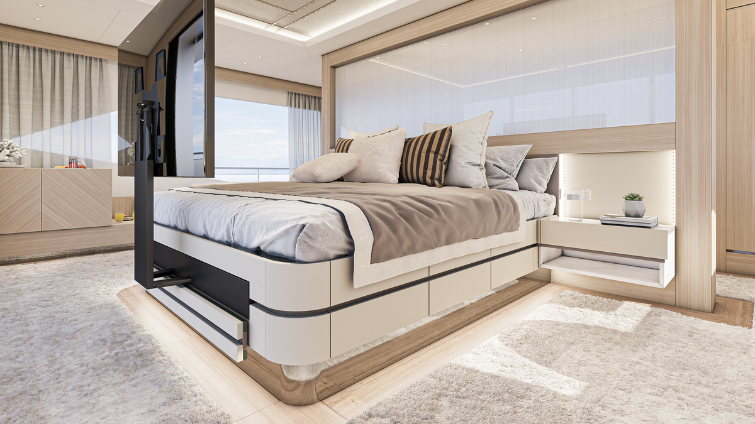

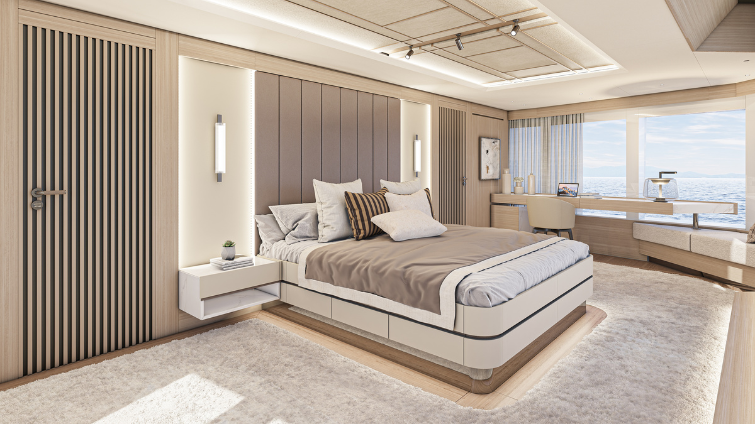

  UPPER-DECK-CABIN — Numarine

•

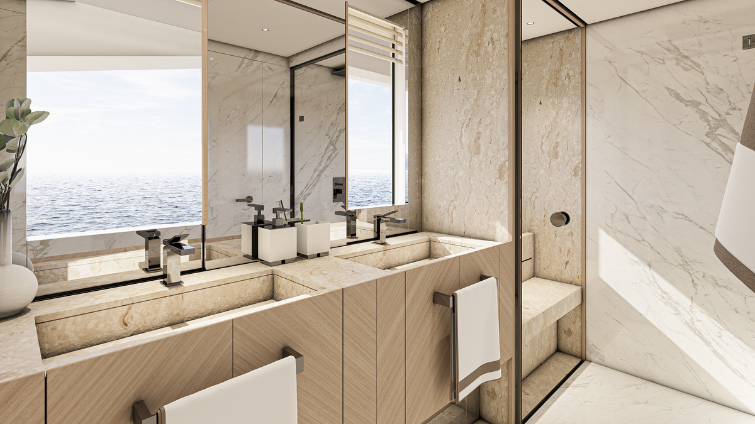

  UPPER-DECK-CABIN-BATHROOM — Numarine

•

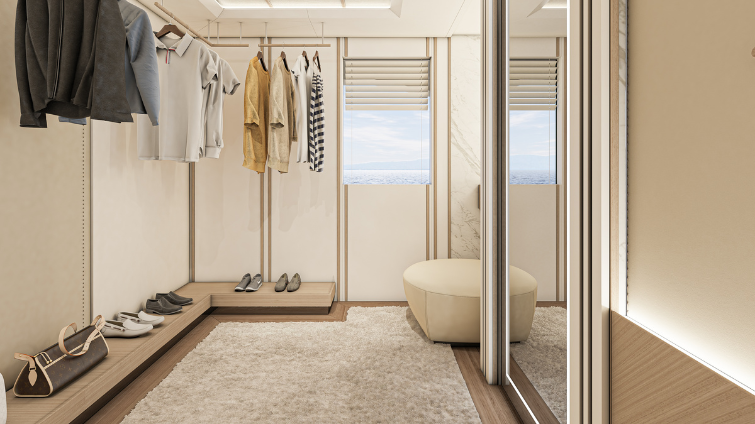

  UPPER-DECK-CABIN-CLOSET — Numarine

•

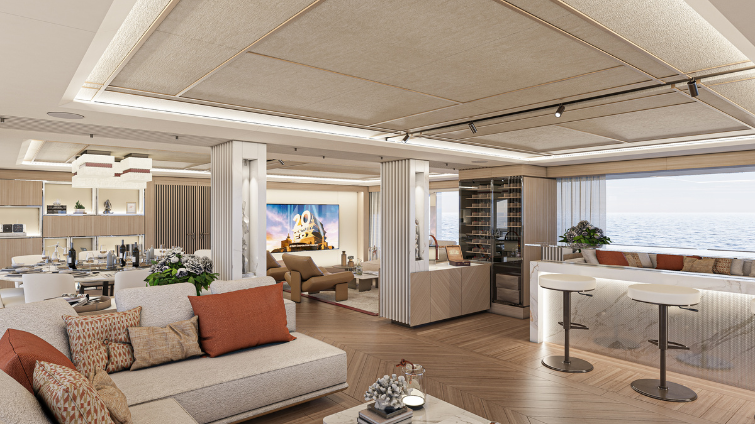

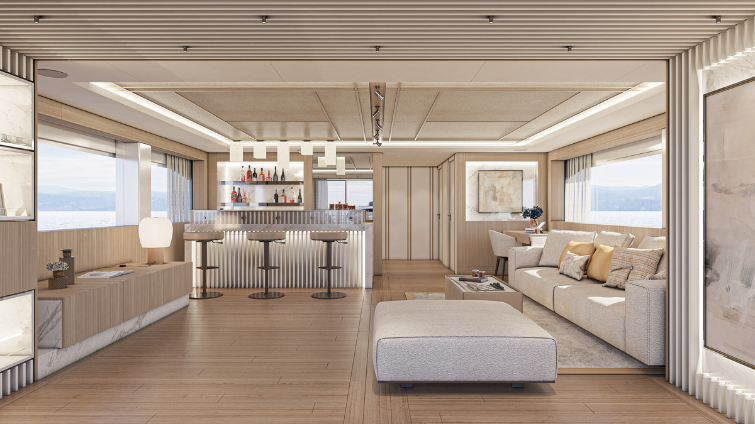

  UPPER-DECK-LOUNGE — Numarine

About Numarine

Semi-custom

Turkish builder of explorer yachts — the XP Series from the 22XP to the 47MXP and the XPC 38XPC/39MXPC — founded in 2002 by Ömer Malaz in Istanbul and building today at Gebze, Kocaeli.

Numarine was founded in Istanbul in 2002 by Ömer Malaz, who came from performance boating and set out to build explorer yachts offering more range, more comfort and more style than the type then allowed. The yard began with high-performance boats defined by engineering and striking design, and as the market turned towards long-range, self-sufficient cruising it narrowed its focus to explorer yachts alone. Close to 200 have been launched from Istanbul since, and they range from the 22XP to the 47MXP.

The Numarine Range

Every model Numarine publishes, by length — where this one sits in the range.

1. Numarine 47MXP· this model153.2 ft
2. Numarine 45XP147.6 ft
3. Numarine 40MXP129.3 ft
4. Numarine 39MXPC128.8 ft
5. Numarine 38XPC124.3 ft
6. Numarine 37XP121.9 ft
7. Numarine 32XP107.1 ft
8. Numarine 30XP101.4 ft
9. Numarine 27XP88.5 ft
10. Numarine 22XP74.1 ft
