Swan Arrow

Design

Designer

Jarkko Jämsén

Summary

Best Suited For

• Liveaboard

  From the published figures: LOA 23.2 m · 3 cabins · 3 heads

• Coastal Cruising

  From the published figures: CE Category B · LOA 23.2 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

76.1 ft (23.2 m)

Hull length

—

LWL

—

Beam

22.6 ft (6.9 m)

Draft (min)

—

Draft (max)

—

Air draft

—

Displacement

105,822 lb (48,000 kg)

Ballast

—

Cabins

2–3

Heads

2–3

Berths

—

Performance

Maximum speed

37 kn

Cruising speed

—

Range

—

Guests

6

Crew

2

Engine and Tanks

Engine

1000 hp

Engine count

2

Engine manufacturer

—

Propulsion type

—

Fuel capacity

—

Fresh water capacity

—

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

OPT ENGINES

3 x 1.000 HP

MAX SPEED STD

27 kn

Layouts & Drawings

3 drawings from the builder's page: general arrangement, sail plan, profile.

•

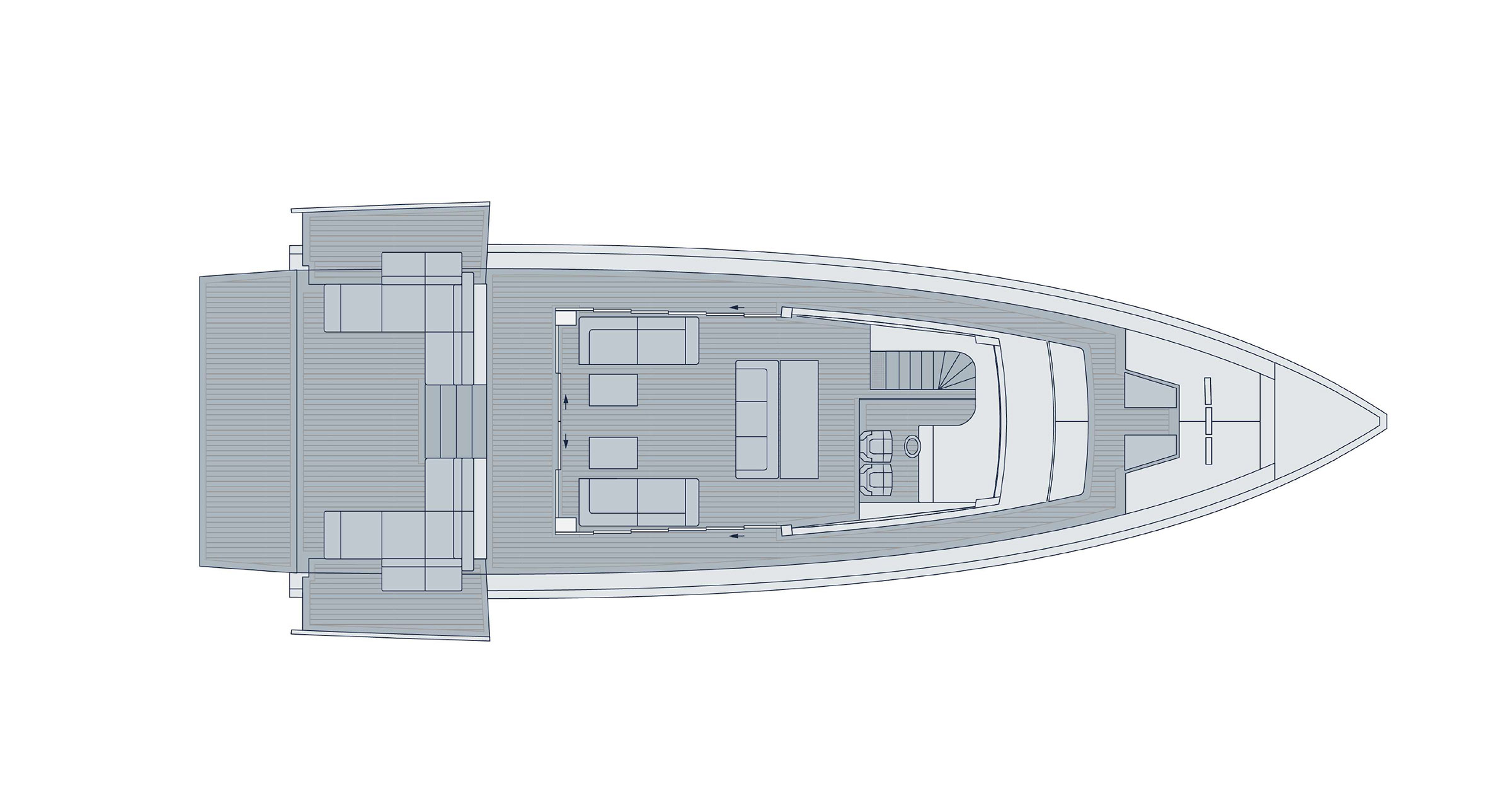

  Deck — Nautor Swan

•

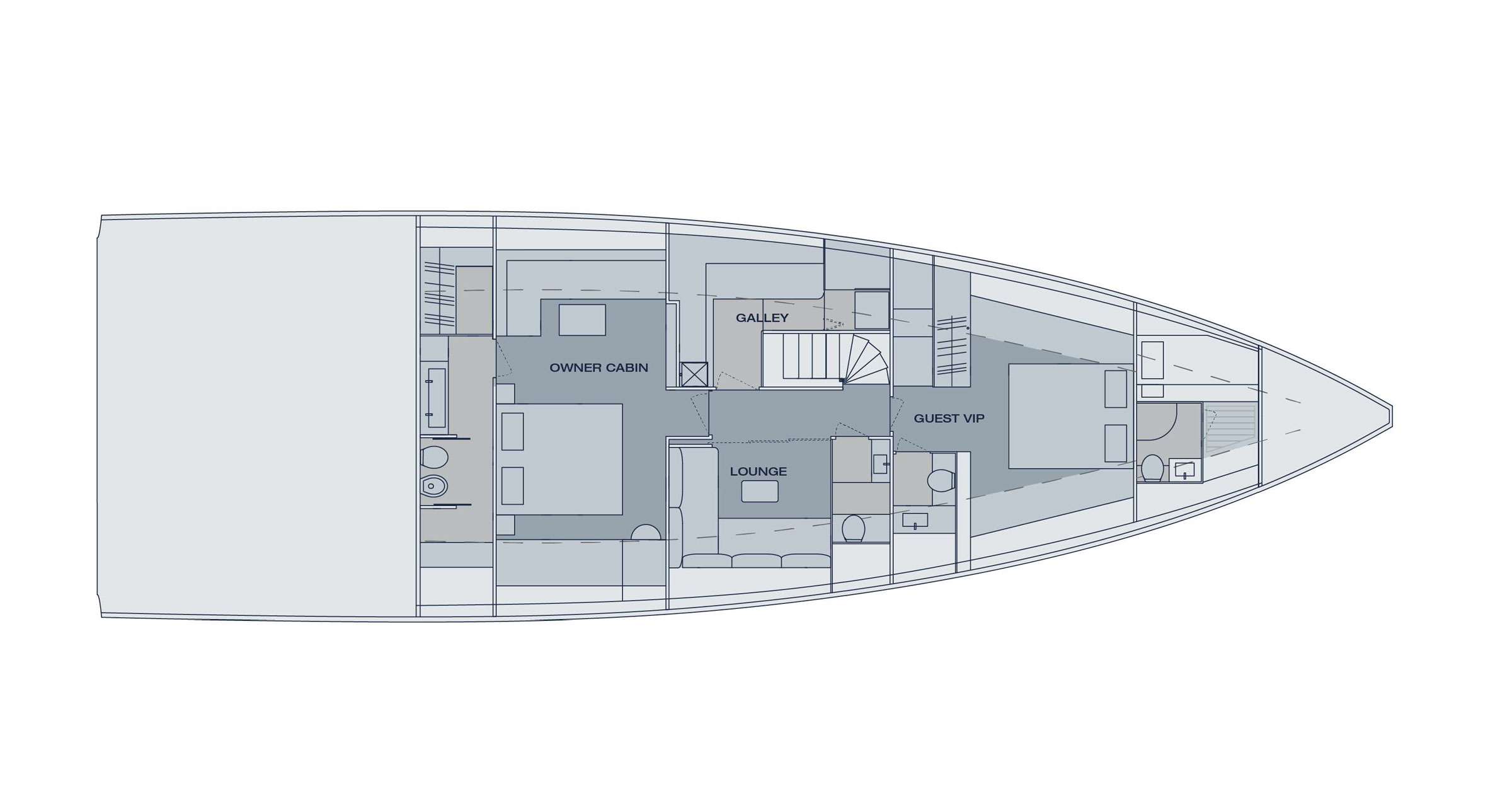

  Standard interior — Nautor Swan

•

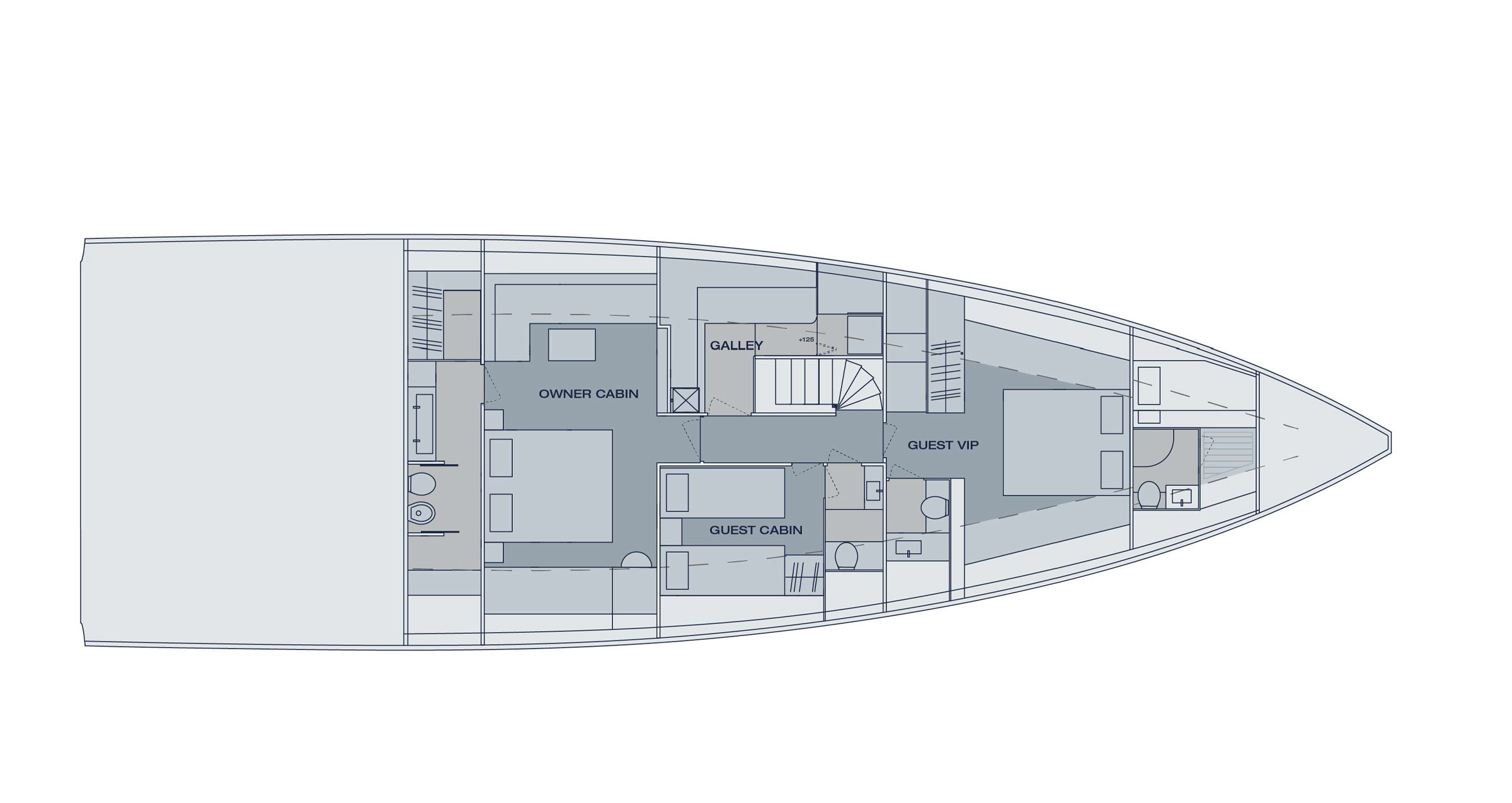

  With options — Nautor Swan

Brochure

About Nautor Swan

Premium production

Finnish builder of luxury sailing yachts, founded in 1966 in Pietarsaari and known worldwide as Nautor Swan.

Oy Nautor AB was founded in 1966 by Pekka Koskenkylä at Pietarsaari, Finland, on centuries of Finnish boatbuilding and a wish to build high-performance sailing yachts of high quality. The first was the Swan 36, whose glass-reinforced hull came with a number of other innovations: it matched the traditional wooden yacht for performance and safety while steering more steadily, weighing less and offering more room below. Sparkman & Stephens drew roughly the first thousand Swans, the Swan 38 and Swan 47 among them, and the larger, seagoing Swan 55 and Swan 65 followed -- one of them, Sayula II, winning the first Whitbread Round the World Race in 1973-74. Ron Holland designed five yachts between 1978 and 1981, including the Swan 37, 39 and 42, and Germán Frers became the principal designer through the 1980s, later opening the one-design racing division with the Swan 45 in 2001 and the ClubSwan 42 in 2005. More than 2,350 yachts between 28 and 131 feet have been built in six decades. Everything is made at Pietarsaari, where engineering sits beside production, and the range now runs across six lines: Swan, Swan Maxi, ClubSwan, Swan Alloy, SwanScape and the motor yacht division Swan Shadow.

The Nautor Swan Range

Every model Nautor Swan publishes, by length — where this one sits in the range.

1. Swan Arrow· this model76.1 ft
2. Swan Shadow43.3 ft
3. Swan OverShadow42.7 ft
