Wajer 77

Summary

Best Suited For

• Liveaboard

  From the published figures: LOA 23.45 m · 3 cabins

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

76.9 ft (23.45 m)

Hull length

—

LWL

—

Beam

19 ft (5.8 m)

Draft (min)

5.9 ft (1.8 m)

Draft (max)

—

Air draft

—

Displacement

112,436 lb (51,000 kg)

Ballast

—

Cabins

3

Heads

—

Berths

—

Performance

Maximum speed

37 kn

Cruising speed

25 kn

Range

350 nm

Guests

—

Crew

—

Engine and Tanks

Engine

900 hp (Volvo Penta)

Engine count

3

Engine manufacturer

Volvo Penta

Propulsion type

IPS pods

Fuel capacity

—

Fresh water capacity

—

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Engines

3x Volvo Penta IPS 1200 D13-900hp

Engine power basis

per engine as printed

Displacement basis

weight at half load, as printed (51 tons)

Cruising speed as printed

25 knots (IPS 1350)

Top speed as printed

37 knots (IPS 1350)

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

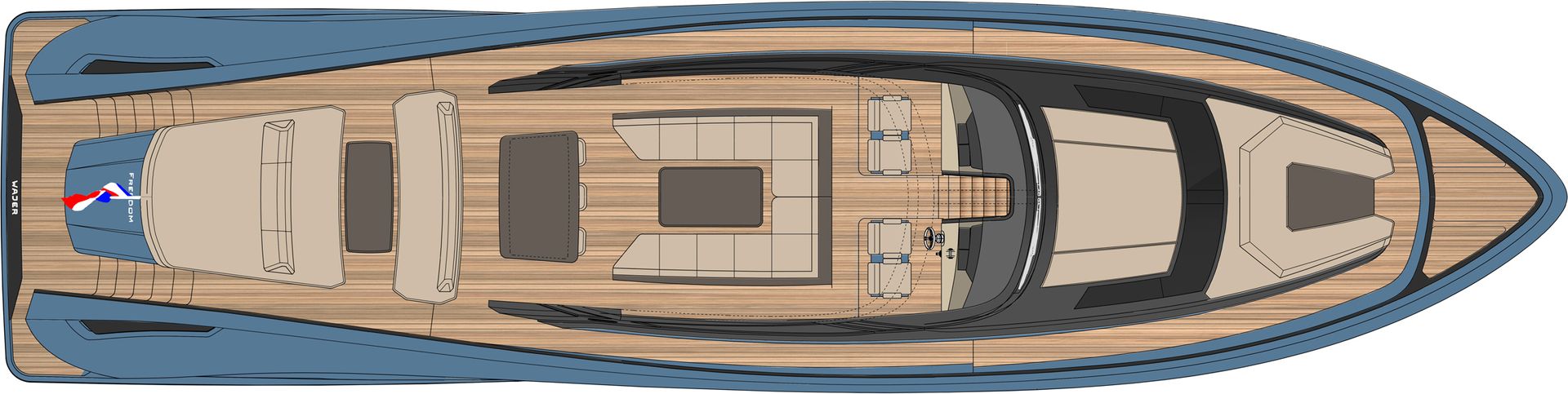

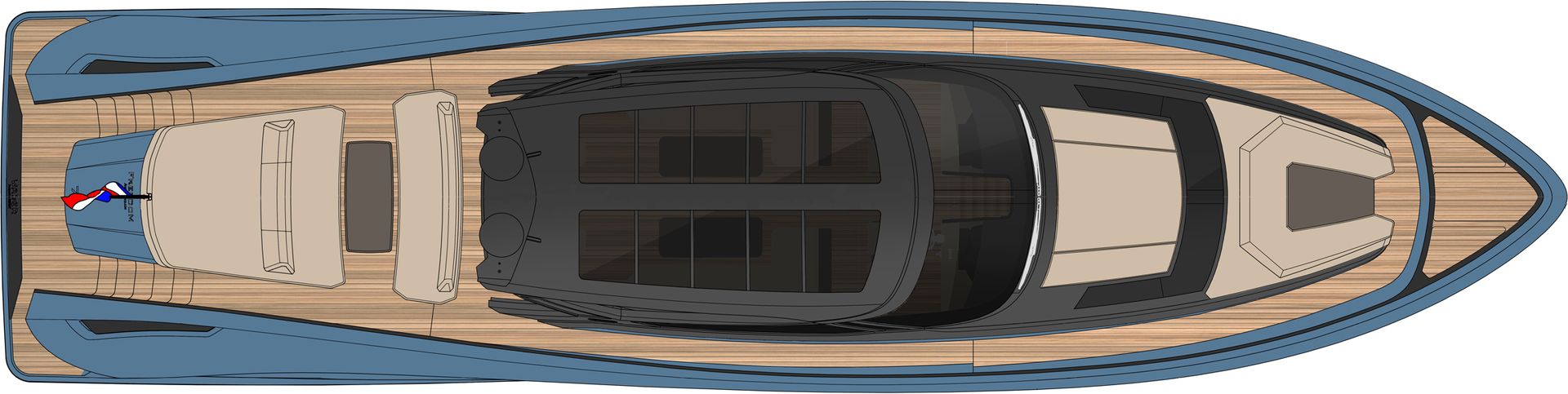

  wajer-77-ga-general-arrangement-top-view — Wajer Yachts

•

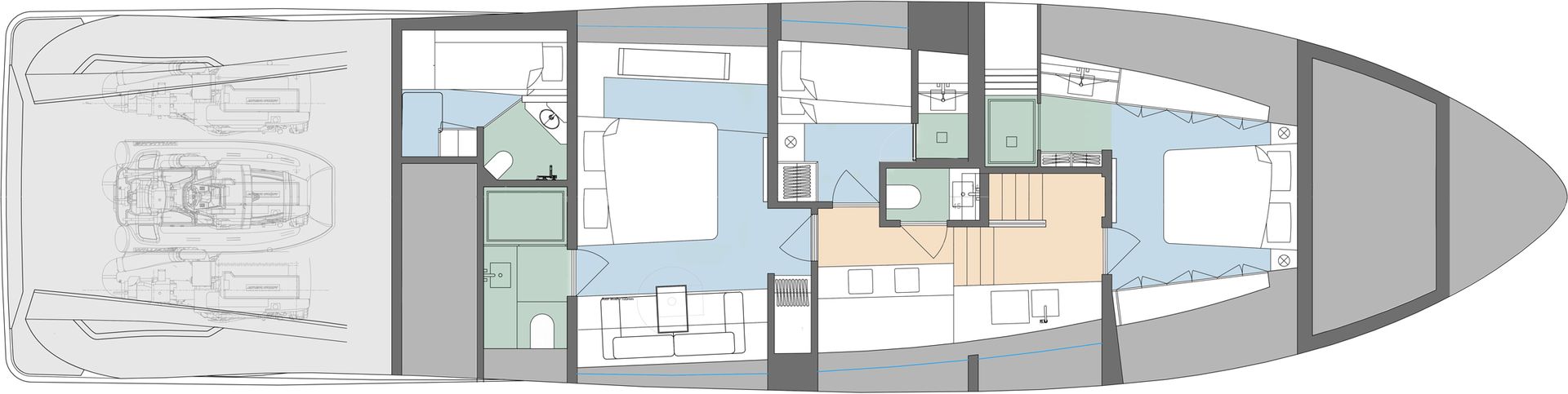

  wajer-77-ga-general-arrangement-interior-view-2 — Wajer Yachts

•

  wajer-77-ga-general-arrangement-interior-view-1 — Wajer Yachts

•

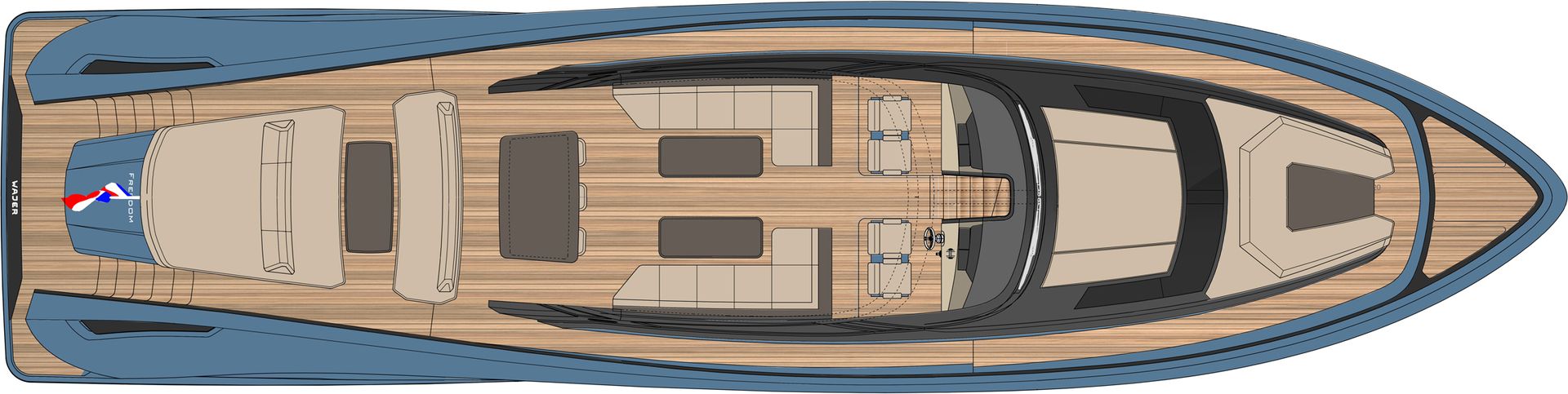

  wajer-77-ga-general-arrangement-top-view-interior — Wajer Yachts

Films of this model from the builder's official YouTube channel (Wajer Yachts). They are the builder's own; the figures above are the reference.

Videos whose title names the Wajer 77, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.

About Wajer Yachts

Premium production

Dutch family builder of luxury dayboats and weekenders from Friesland — nine Volvo Penta IPS models from the 11.8-metre Wajer 38 to the 23.5-metre Wajer 77, designed, built, sold and serviced in-house by more than 350 people, with owner hubs from Amsterdam to Miami.

Wajer describes itself as a thirty-year voyage: over two generations it went from a local builder of launches to a name known across yachting. The Captain's Launch is the boat it says started it all, followed by the Wajer 34 and then the larger Wajer 37. The yards are in Friesland, in the northern Netherlands, which the company calls the heartland of Dutch boatbuilding -- the Wajer Boathouse and Wajer Yachts at Heeg, and Wajer Super Yachts at Lemmer. More than 350 people design, build, sell and service the boats, all of it in-house, and the hulls are built by hand by specialists in woodwork, epoxy construction, systems and design. The design aim is stated plainly: keep it relentlessly simple, and hide whatever would interrupt the line.

The Wajer Yachts Range

Every model Wajer Yachts publishes, by length — where this one sits in the range.

1. Wajer 77· this model76.9 ft
2. Wajer 55 S55.2 ft
3. Wajer 5555.1 ft
4. Wajer 55 HT55.1 ft
5. Wajer 4443 ft
6. Wajer 44 HT43 ft
7. Wajer 44 S43 ft
8. Wajer 3838.8 ft
9. Wajer 38 S38.8 ft
