Panther 48

Design

Designer

McConaghy Boats

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · LOA 15.69 m · fresh water 400 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

51.5 ft (15.69 m)

Hull length

48 ft (14.62 m)

LWL

—

Beam

26.4 ft (8.05 m)

Draft (min)

3.8 ft (1.16 m)

Draft (max)

8.2 ft (2.5 m)

Air draft

68.6 ft (20.91 m)

Displacement

18,739 lb (8,500 kg)

Ballast

—

Cabins

—

Heads

—

Berths

—

Sail Plan

Main sail

—

Jib

—

Genoa

—

Sail area

—

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

—

Engine count

2

Engine manufacturer

—

Propulsion type

electric

Fuel capacity

106 gal (400 L)

Fresh water capacity

106 gal (400 L)

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Headroom saloon

2.0m – 2.3m

Certificate

CE-Category A-Ocean

Draft

1.16m boards up, 2.5m boards down

Headroom hulls

2.0m – 2.3m

Mast height

20.91m above waterline

Engine power basis

electric motors, printed in kW only

Displacement basis

lightship (8.5t (lightship))

Engines as printed

2 x 15kw

Layouts & Drawings

3 drawings from the builder's page: general arrangement, sail plan, profile.

•

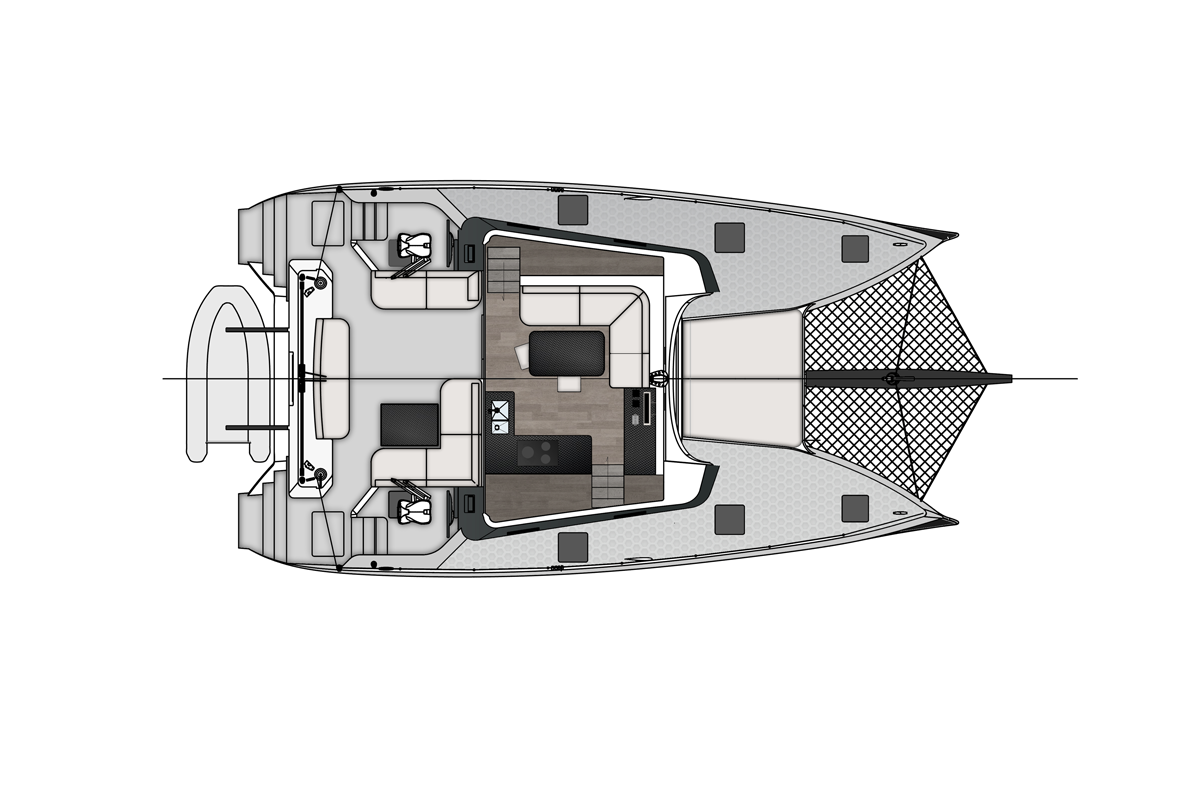

  Panther-48-GA-render-saloon-1200x800-1 — McConaghy Boats

•

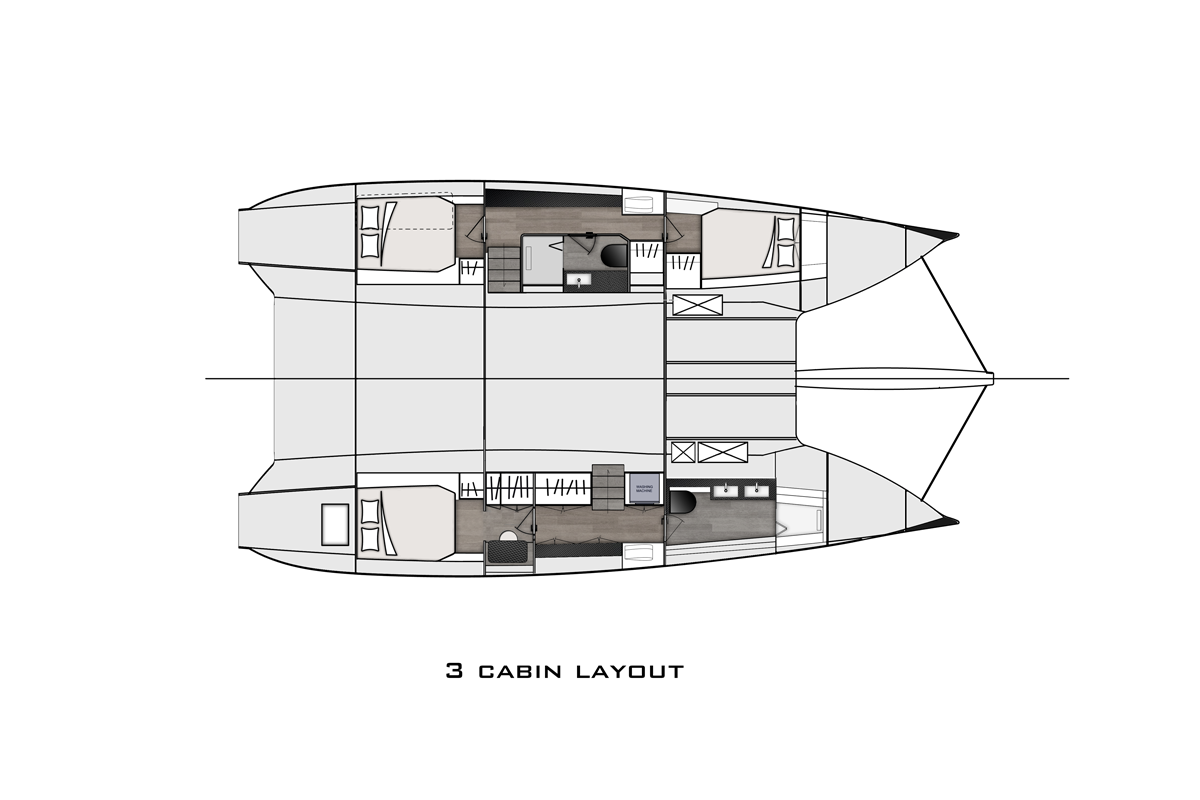

  Panther-48-GA-render-3-cabin-1200x800-1 — McConaghy Boats

•

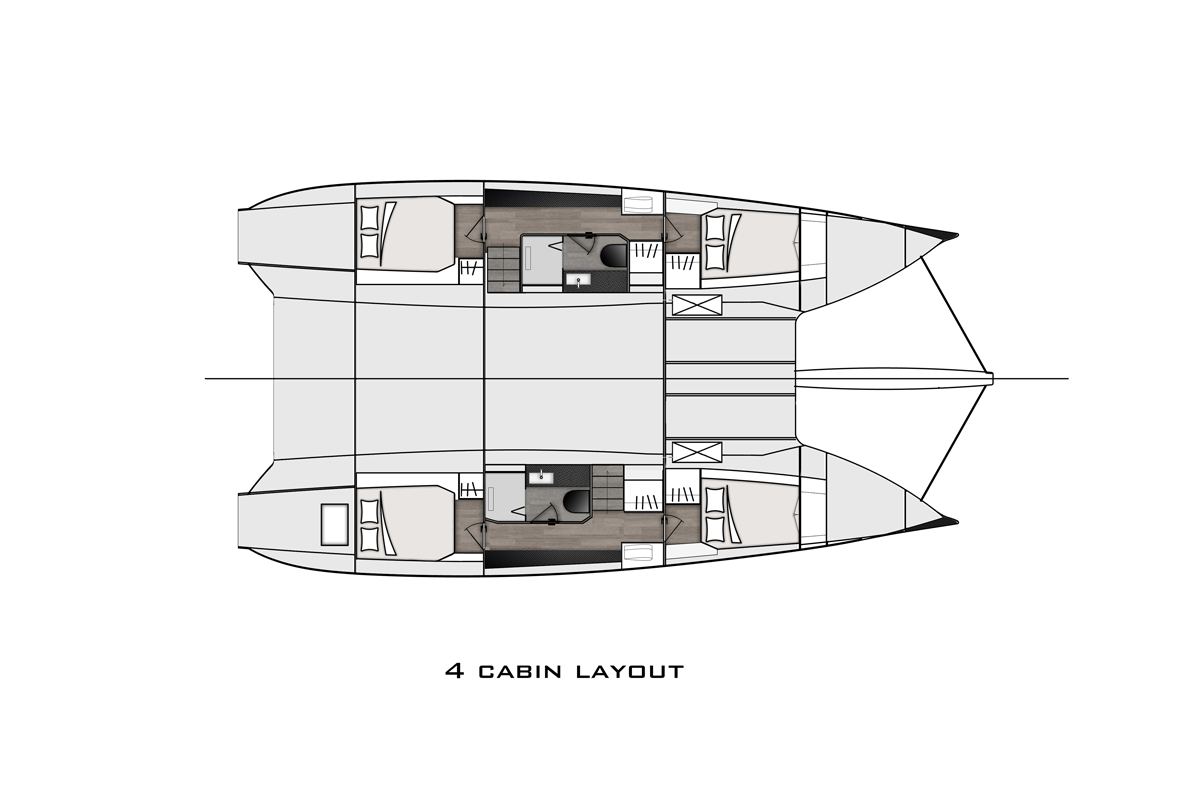

  Panther-48-GA-render-4-cabin-1200x800-1 — McConaghy Boats

About McConaghy Boats

Semi-custom

Australian composite boatbuilder founded by John McConaghy in 1967 — maxi race yachts and one-designs, and from its Zhuhai yard in China the semi-custom MC and electric Panther sailing catamarans, the Sapphire, GT, Platinum and Explorer multihulls.

John McConaghy founded the company in 1967 and set out to build skiffs, Tornado and A-class catamarans from materials never before used in boats. In the mid-1970s McConaghy was one of the first to apply prepreg carbon to sailing boat construction, and its first 18-foot prepreg carbon skiff set a benchmark for years. In 1987 it built the first prepreg Nomex-cored maxi yacht, at the time the largest composite structure in the world. In 2000 employees Jono Morris and Mark Evans took over from John McConaghy and his long-time partner Steve Moxham and went on to build some of the most successful maxis — Alfa Romeo took Sydney Hobart line honours in 2002, and Wild Oats XI won line honours from 2005, seven times in all. In 2006 the company opened a shipyard in China, which supported several semi-custom ranges; in 2012 it helped build James Cameron's DEEPSEA CHALLENGER submersible, and in 2014 it delivered the 42.5-metre trimaran Adastra from Zhuhai, its largest build. Hong Kong-based Tiger Group Investments invested in 2014. The first McConaghy catamaran was launched in February 2018. By 2020 the company, privately owned by Mark Evans and Tiger Group, had tripled in a decade to more than 200 staff in Australia, China and Hong Kong; it was chosen to build the AC40 for the 37th America's Cup in 2022 and a hydrogen chase boat in 2023.

The McConaghy Boats Range

Every model McConaghy Boats publishes, by length — where this one sits in the range.

1. S80 Sapphire78.7 ft
2. Panther 6872.3 ft
3. MC6867.9 ft
4. MC6267.3 ft
5. MC5558.9 ft
6. Panther 5658.9 ft
7. Panther 48· this model51.5 ft
8. MC3837.2 ft
9. MC3130 ft
