Mangusta 165 REV

Design

Designer

Lobanov Design / Overmarine Group

Interior designer

Overmarine Group

Summary

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

163.7 ft (49.9 m)

Hull length

—

LWL

—

Beam

30.2 ft (9.2 m)

Draft (min)

—

Draft (max)

6.6 ft (2 m)

Air draft

—

Displacement

639,340 lb (290,000 kg)

Ballast

—

Cabins

6

Heads

—

Berths

—

Performance

Maximum speed

34 kn

Cruising speed

30 kn

Range

650 nm

Guests

—

Crew

—

Engine and Tanks

Engine

2600 hp (MTU)

Engine count

4

Engine manufacturer

MTU

Propulsion type

waterjets

Fuel capacity

10,567 gal (40,000 L)

Fresh water capacity

1,057 gal (4,000 L)

Black water capacity

—

Construction

Hull material

singleskin composite hull, sandwich composite superstructure

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Guests

12 IN 6 CABINS

Transmission

2 X WATERJETS KAMEWA S4-71 + 2 X WATERJETS KAMEWA B4-71

Stabilizers

ZERO SPEED AND UNDERWAY

Crew

9/10 IN 5 CABINS

Gross tonnage

499 GT

Displacement at full load

~ 310 T

Main engines

4 X MTU 16V 2000 M96L 2600 HP @ 2450 RPM (1939 kW)

Interiors

custom interiors available

Displacement basis

at half load, approx. (~ 290 T)

Range basis

at cruising speed

Speed basis

at half load, as printed

Engine power basis

per engine as printed

Draft basis

maximum draft, as printed

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

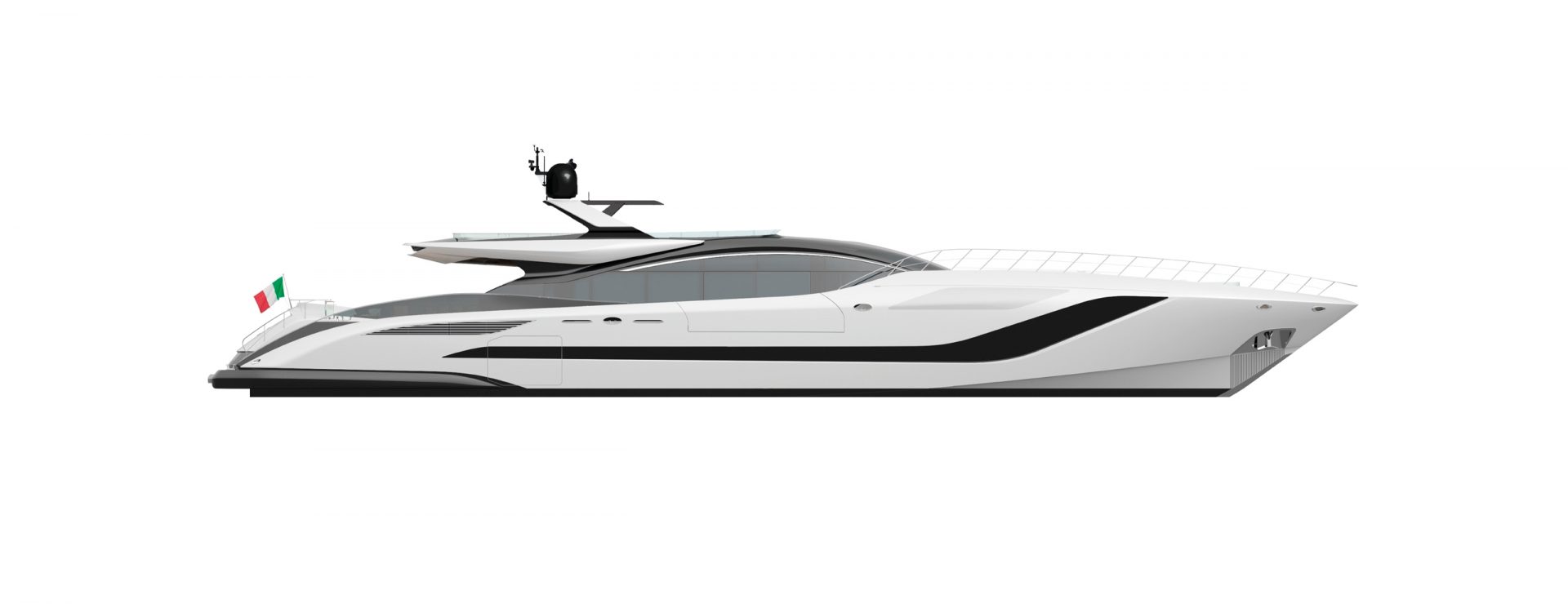

  165REV-2 — Overmarine Group

•

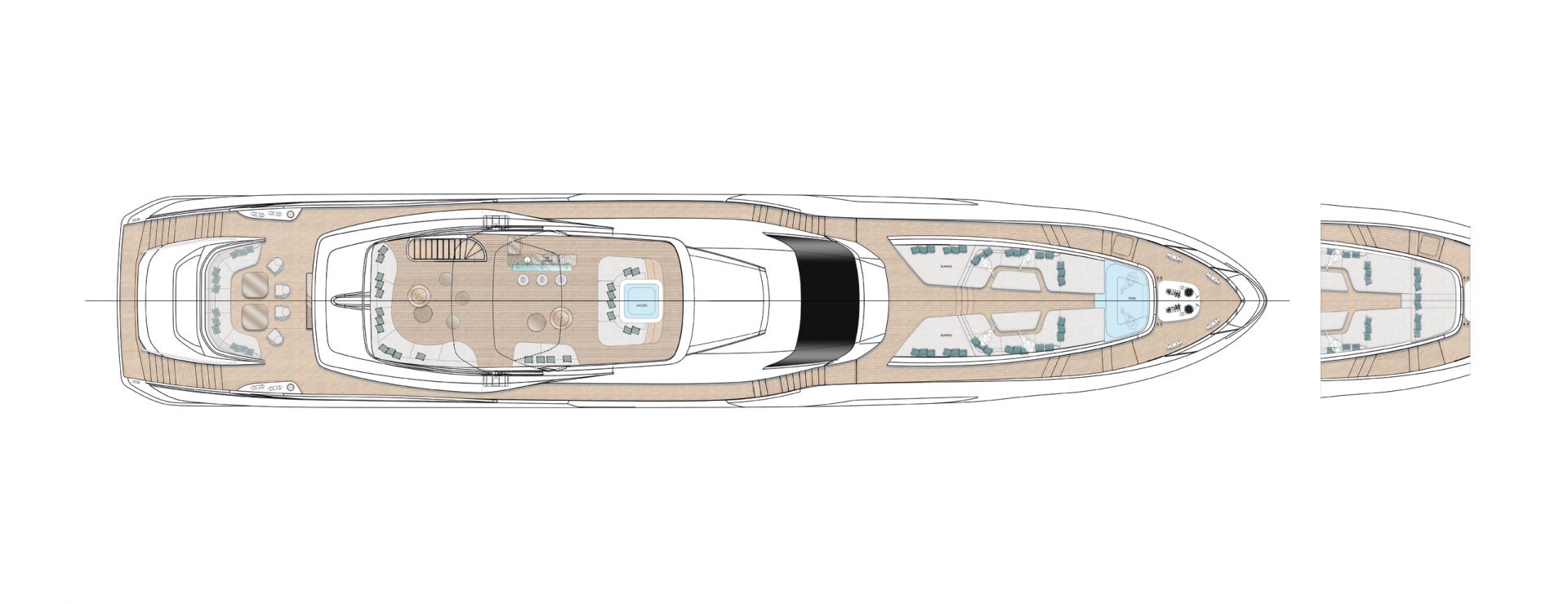

  165REV_sun_deck — Overmarine Group

•

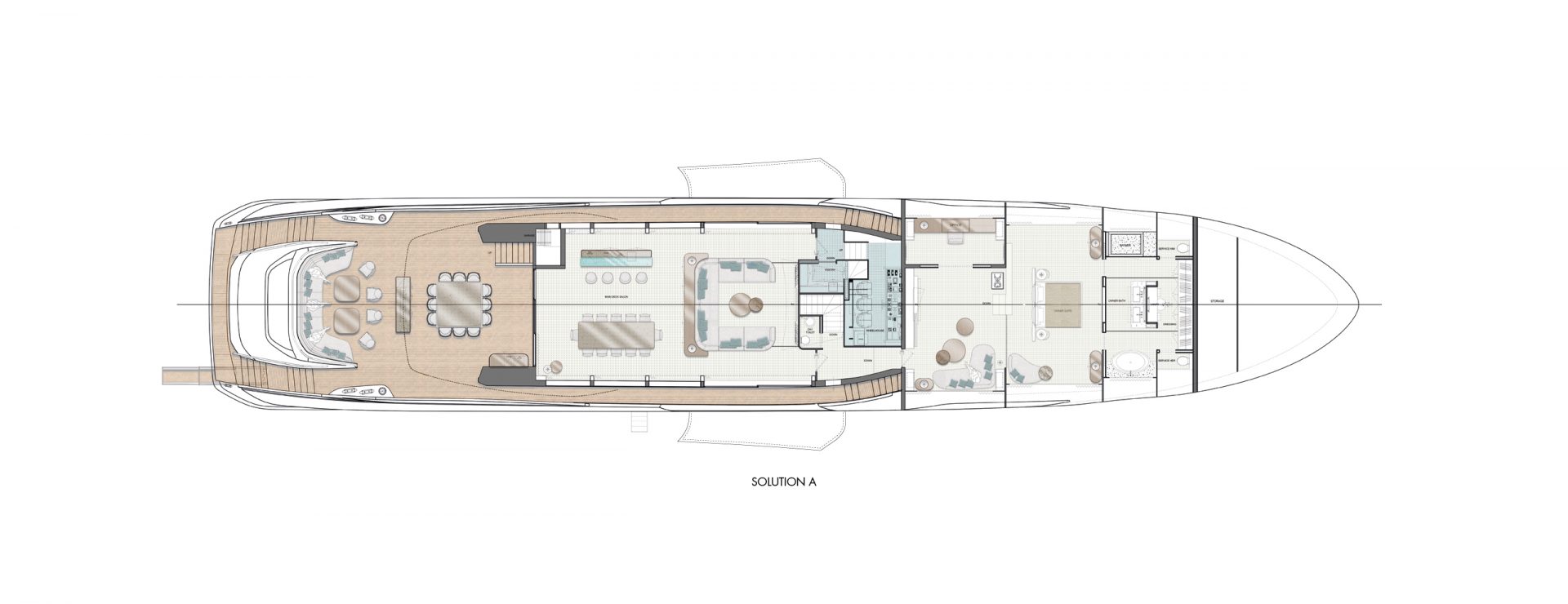

  165REV_main_deck_A — Overmarine Group

•

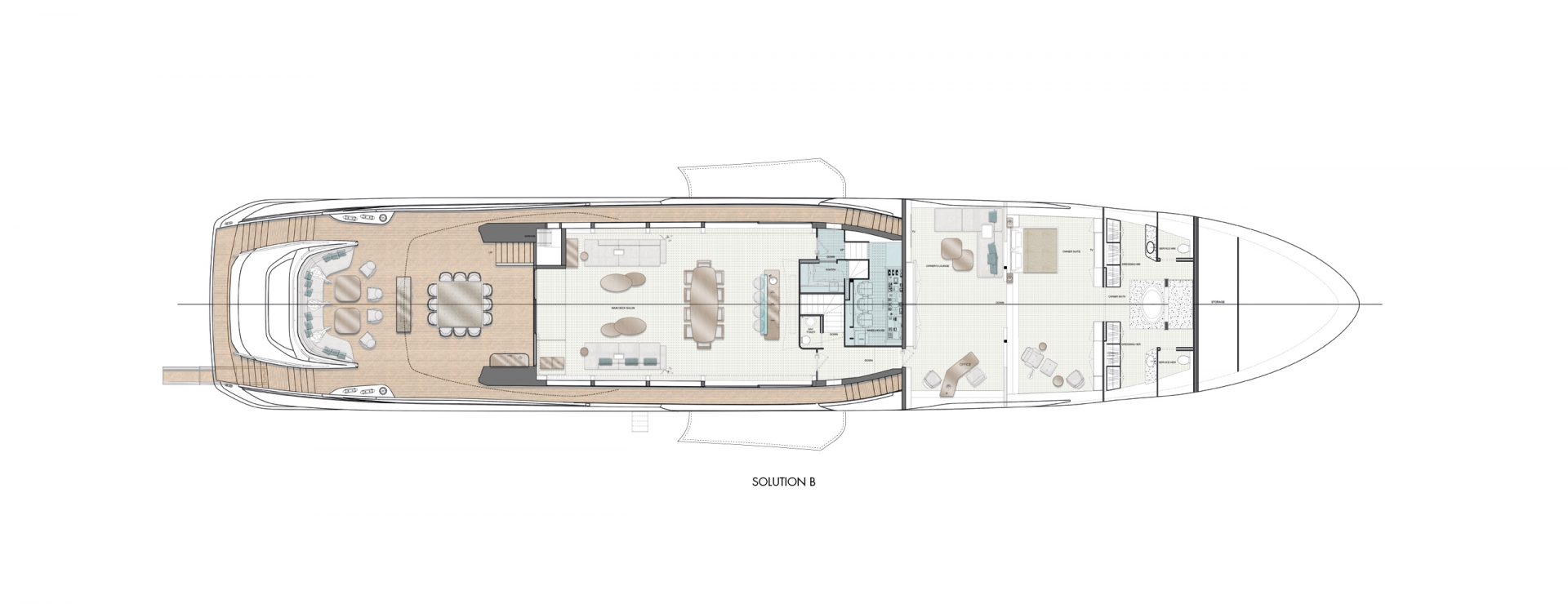

  165REV_main_deck_B — Overmarine Group

About Mangusta

Semi-custom

Overmarine Group's Tuscan superyacht brand, founded by the Balducci family in 1985 and known for its fast open yachts — today three lines from 32 to 60 metres: Maxi Open, GranSport fast-displacement and Oceano displacement yachts, built at Viareggio, Pisa and Massa.

Mangusta was founded in 1985 by Giuseppe Balducci, founder of the Overmarine Group, who chose the name -- the mongoose, which defeats the cobra -- as a challenge to the established rules of yachting; the yard traces its roots to the 1950s and says the family, now in its third generation, still runs it. The Mangusta 80 of 1990, designed by Stefano Righini, is described as the first 80-foot open yacht and stayed in production until 2018; the Mangusta 105 of 1995 was the first with waterjets and a turbine, followed by the 72, 108, 92 and 130, and in 2007 the first Mangusta 165, at over 50 metres the largest open yacht in the world, reached 44 knots on three MTU engines. A metal-working yard opened at Pisa in 2012 for the new Oceano and GranSport lines; the first Oceano, the 42-metre Namasté of 2016, began the collaboration with Alberto Mancini, and in 2018 the GranSport 54 El Leon became the first Mangusta to circumnavigate the globe, over three and a half years and more than 50,000 miles. The 104 REV of 2021 began the work with Igor Lobanov, followed by the 165 REV and the Oceano 50, 44 and 39. Giuseppe Balducci died in 2024, the year the Pisa yard was doubled to 44,000 square metres, and in 2025 the company marked forty years with more than 300 yachts delivered.

The Mangusta Range

Every model Mangusta publishes, by length — where this one sits in the range.

1. Oceano 60196.9 ft
2. GranSport 54177.2 ft
3. Mangusta 165 REV· this model163.7 ft
4. Oceano 50163.7 ft
5. Oceano 46149.3 ft
6. GranSport 45148.6 ft
7. Oceano 44145.9 ft
8. Mangusta 132E131.4 ft
9. Oceano 39128.6 ft
10. GranSport 34111.2 ft
11. Mangusta 104 REV104.3 ft
