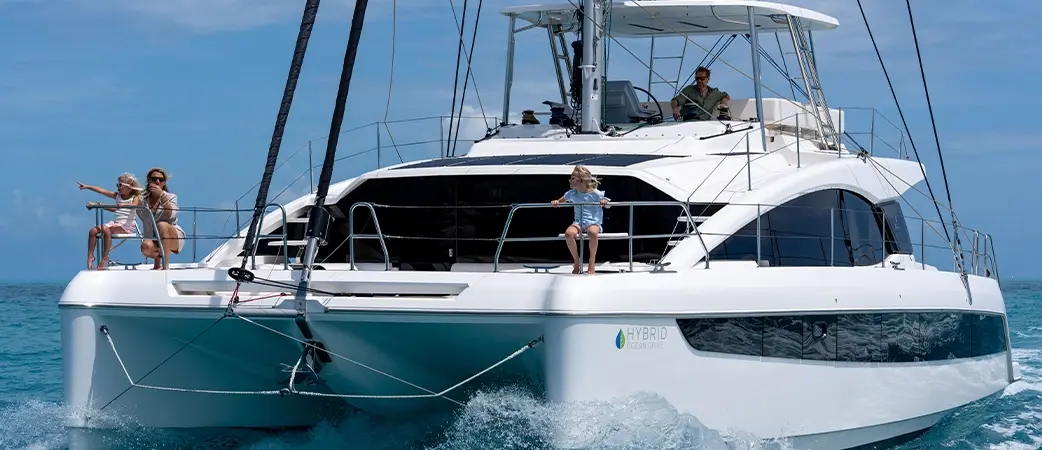

Aquila 50 Sail

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: CE Category A · LOA 14.97 m

• Liveaboard

  From the published figures: LOA 14.97 m · 6 cabins · 6 heads

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Dimensions

LOA

49.1 ft (14.97 m)

Hull length

—

LWL

—

Beam

25.8 ft (7.86 m)

Draft (min)

4.8 ft (1.45 m)

Draft (max)

4.8 ft (1.45 m)

Air draft

18.2 ft (5.55 m)

Displacement

—

Ballast

—

Cabins

4–6

Heads

4–6

Berths

—

Sail Plan

Main sail

969 ft² (90 m²)

Jib

—

Genoa

710 ft² (66 m²)

Sail area

1,679 ft² (156 m²)

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

50 hp

Engine count

2

Engine manufacturer

—

Propulsion type

saildrive

Fuel capacity

—

Fresh water capacity

—

Black water capacity

—

Construction

Mast material

—

Hull material

—

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Engines

2x 50 HP Saildrive (hp per engine as printed)

Mast height above waterline

25.15M / 82’ 6”

Utility rooms

1

Cabins/heads

cabins 4 / 5 / 6; heads 4 / 5 / 6

Draft

draft: 1.45M / 4’ 8” will vary depending on load

Maximum passengers

30 (certified persons, not guests)

CE persons

A: 12, B: 12, C: 20, D: 30

Air draft basis

height above waterline

Films of this model from the builder's official YouTube channel (Aquila Boats). They are the builder's own; the figures above are the reference.

Videos whose title names the Aquila 50 Sail, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.

About Aquila Power Catamarans

Premium production

Power-catamaran builder founded in 2012 by Lex Raas with MarineMax and the Xiong family's Sino Eagle Group — eighteen models from the 28 Molokai to the 70 Luxury across the Molokai, Sport, Coupe, Yacht and Luxury lines, plus new 45 and 50 sailing catamarans — built at Sino Eagle's yard in Hangzhou with over 1,000 boats delivered.

The Aquila Power Catamarans Range

Every model Aquila Power Catamarans publishes, by length — where this one sits in the range.

1. Aquila 50 Sail· this model49.1 ft
2. Aquila 45 Sail47.2 ft
3. Aquila 65 Saillength not published
