Sundancer 320

Summary

Best Suited For

• Coastal Cruising

  From the published figures: sport cruiser · LOA 10.01 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

32.8 ft (10.01 m)

Hull length

—

LWL

—

Beam

10.6 ft (3.23 m)

Draft (min)

2.5 ft (0.76 m)

Draft (max)

3.4 ft (1.04 m)

Air draft

—

Displacement

13,999 lb (6,350 kg)

Ballast

—

Cabins

—

Heads

—

Berths

4

Performance

Maximum speed

42.7 kn

Cruising speed

23.2 kn

Range

161 nm

Guests

—

Crew

—

Engine and Tanks

Engine

300 hp (Mercury)

Engine count

2

Engine manufacturer

Mercury

Propulsion type

sterndrive

Fuel capacity

158 gal (598 L)

Fresh water capacity

32 gal (121 L)

Black water capacity

27 gal (102 L)

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Standard propulsion

Twin Mercury® MerCruiser® 6.2L MPI ECT Bravo Three X® with Joystick Piloting (224 kW)

Persons capacity

Yacht Certified

Deadrise

21°

Sleeps

Four

Cruising speed as printed

43–47 kph

Engine power basis

horsepower from the US page (Twin Mercury® MerCruiser® 6.2L MPI ECT Bravo Three X® with Joystick Piloting (T-300 hp)); the Europe page prints kW

Displacement basis

dry weight without engine, as printed (6,350 kg)

Draft basis

drive trimmed up (min) and trimmed down (max), as printed

Speed basis

printed in kph/km, converted to knots/nautical miles

Range as printed

at cruising speed 298 km; at WOT 229 km

Top speed (WOT) as printed

76–79 kph

Layouts & Drawings

1 drawing from the builder's page: general arrangement, sail plan, profile.

•

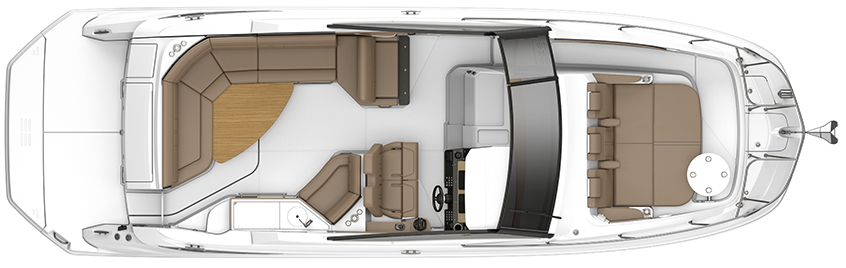

  sea-ray-320-sundancer-floorplan-deck — Sea Ray

About Sea Ray

Volume production

American sport-boat and sport-cruiser builder founded in 1959 and part of Brunswick Corporation since 1986 — thirty sterndrive, outboard and surf models from the 6.6-metre SPX 210 to the 12.9-metre SLX 400 Outboard in four series, SPX, SDX, SLX and Sundancer, built mainly in Vonore, Tennessee.

Sea Ray was founded in 1959 by C.N. Ray after he bought the assets of Carr-Craft, a small fiberglass manufacturer in Detroit; it began with three people — Ray, Carr-Craft's fiberglass specialist and designer Jerry Michalak, and Ray's business partner Arch Mehaffey. In the 1960s production ramped up in Oxford, Michigan, the first lineup was unveiled and a dealer network was built. The 1970s brought a new headquarters with production and product development in Phoenix, the Merritt Island, Florida plant that still builds Sea Rays, and the Sundancer, which the company says defined the cabin cruiser. In the 1980s it opened the Vonore, Tennessee plant, which builds most models today, joined the Brunswick family of brands in 1986, opened its first international plant and by the end of the decade offered more than fifty models. The 1990s range ran from the 16-foot Ski Ray to the 65-foot 650 Cockpit Motor Yacht; the Sea Ray Owners Club began in 1996, and all plants operated under ISO 9002. In the 2000s Sea Ray reintroduced outboard models, adopted touchscreen helms and robotic manufacturing, and moved its headquarters to Knoxville, Tennessee. After the L-Class yachts of the 2010s it refocused on sport boats and sport cruisers under 40 feet, and the Sundancer 370 launched its current design language, with each model offered in sterndrive and outboard versions.

The Sea Ray Range

Every model Sea Ray publishes, by length — where this one sits in the range.

1. Sundancer 37037.7 ft
2. SLX 35036 ft
3. Sundancer 320 Outboard34.7 ft
4. SLX 310 Outboard33.8 ft
5. Sundancer 320· this model32.8 ft
6. SLX 31031.5 ft
7. SLX 280 Outboard31.4 ft
8. SDX 290 Outboard31.2 ft
9. SDX 270 Outboard29.9 ft
