RM 1080

Design

Naval architect

Marc Lombard Design Group

Summary

Best Suited For

• Short-Handed

  From the published figures: hull length 10.8 m · upwind 74.5 m²

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Sailing Ratios

Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.

Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

—

Hull length

35.4 ft (10.8 m)

LWL

—

Beam

13.1 ft (4 m)

Draft (min)

5.8 ft (1.76 m)

Draft (max)

6.7 ft (2.05 m)

Air draft

56.4 ft (17.2 m)

Displacement

13,095 lb (5,940 kg)

Ballast

—

Cabins

2

Heads

—

Berths

—

Sail Plan

Main sail

404 ft² (37.5 m²)

Jib

—

Genoa

398 ft² (37 m²)

Sail area

802 ft² (74.5 m²)

Downwind sail area

—

Rig type

—

Engine and Tanks

Engine

—

Engine count

1

Engine manufacturer

—

Propulsion type

saildrive

Fuel capacity

21 gal (80 L)

Fresh water capacity

53 gal (200 L)

Black water capacity

9 gal (35 L)

Construction

Mast material

—

Hull material

plywood-epoxy

Deck material

—

Keel type

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Fuel

the page says 'oil tank capacity' (French 'gasoil') for the diesel tank

Hull material

plywood-epoxy (site: 'plywood-epoxy sailboat construction'; the page itself prints no material)

Conception

Edouard Delamare Deboutteville

Sail plan

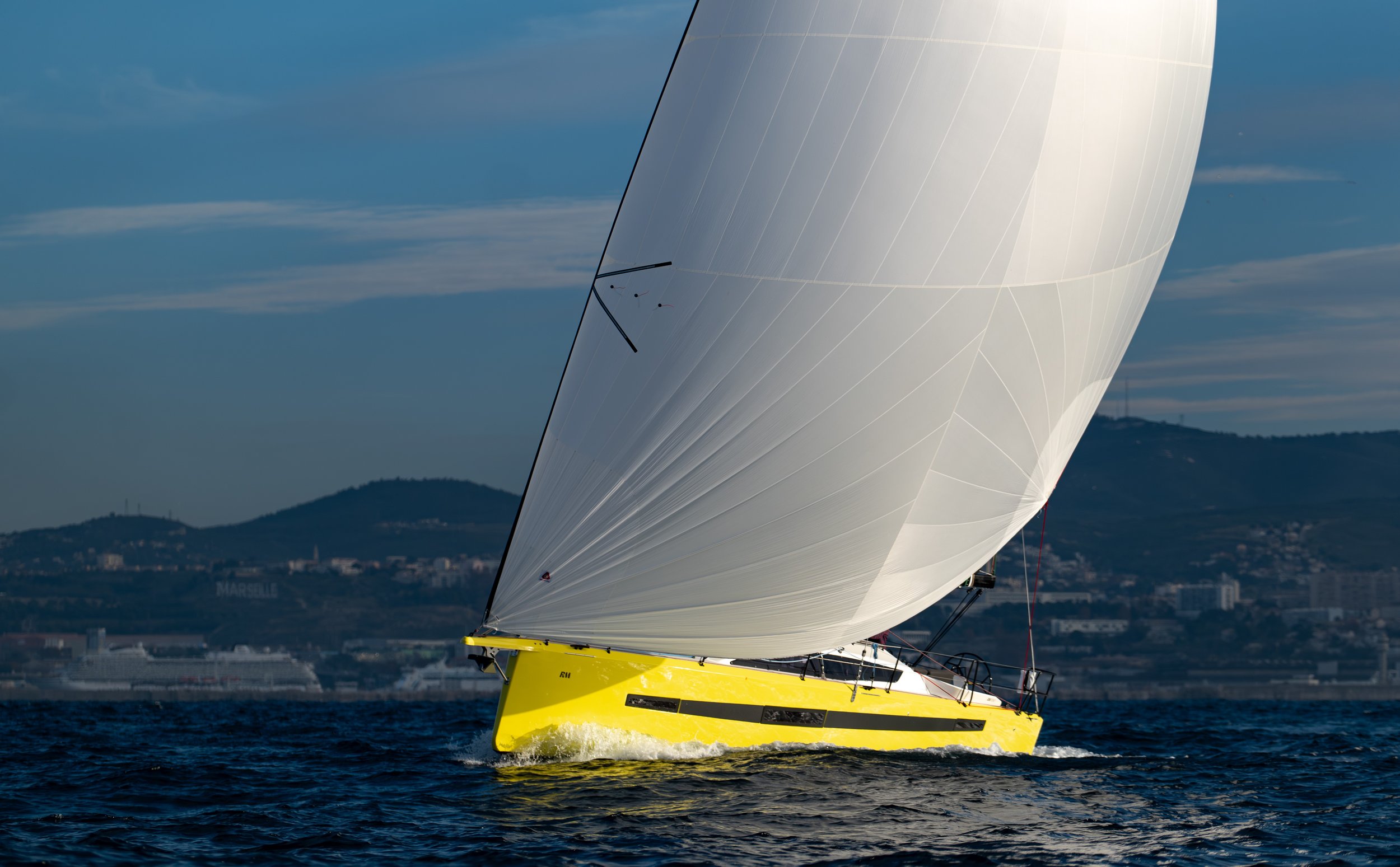

mainsail 37,5 M²; furling genoa 37 M²; assymetric spinnaker 130 M²

Engine

30 CV (CV = metric horsepower; not entered as hp)

Keel options

single keel draft: 2,05 M; twin keels draft: 1,76 M

Upwind sail area

mainsail + genoa

Architect

Marc Lombard Design Group

Length

the page labels 10,80 m simply 'length'; RM names the boat by hull length, stored as such

Displacement basis

light displacement -- 5940 KG (single keel) ; 6150 KG ( twin keels)

About RM Yachts

Semi-custom

French builder of plywood-epoxy performance cruising yachts from 30 to 45 feet — the RM 890+, 980, 1080, 1180 and 1380, all drawn by Marc Lombard — building at La Rochelle since 1989, with more than 600 boats sailing.

RM has been building since 1989, and the yard's own archive of every model it has made since then counts more than 600 RM sailing today, around the world.

The RM Yachts Range

Every model RM Yachts publishes, by length — where this one sits in the range.

1. RM 138043.6 ft
2. RM 118038.7 ft
3. RM 1080· this model35.4 ft
4. RM 98032.2 ft
5. RM 890+29.2 ft
