Ocean Alexander 30R

Design

Designer

Evan K. Marshall

Summary

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

97.4 ft (29.7 m)

Hull length

—

LWL

86.3 ft (26.3 m)

Beam

21.8 ft (6.64 m)

Draft (min)

6.4 ft (1.96 m)

Draft (max)

—

Air draft

—

Displacement

265,877 lb (120,600 kg)

Ballast

—

Cabins

—

Heads

—

Berths

—

Performance

Maximum speed

—

Cruising speed

—

Range

—

Guests

—

Crew

—

Engine and Tanks

Engine

2000 hp (MAN)

Engine count

2

Engine manufacturer

MAN

Propulsion type

—

Fuel capacity

3,600 gal (13,627 L)

Fresh water capacity

450 gal (1,704 L)

Black water capacity

200 gal (757 L)

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Gross tonnage

206 GT

Standard generator

Twin Kohler 40 KW

Standard power

Twin MAN 12V 2000HP

Engine power basis

per engine as printed

Draft basis

approximate (builder's figure)

Displacement basis

approximate (builder's figure)

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

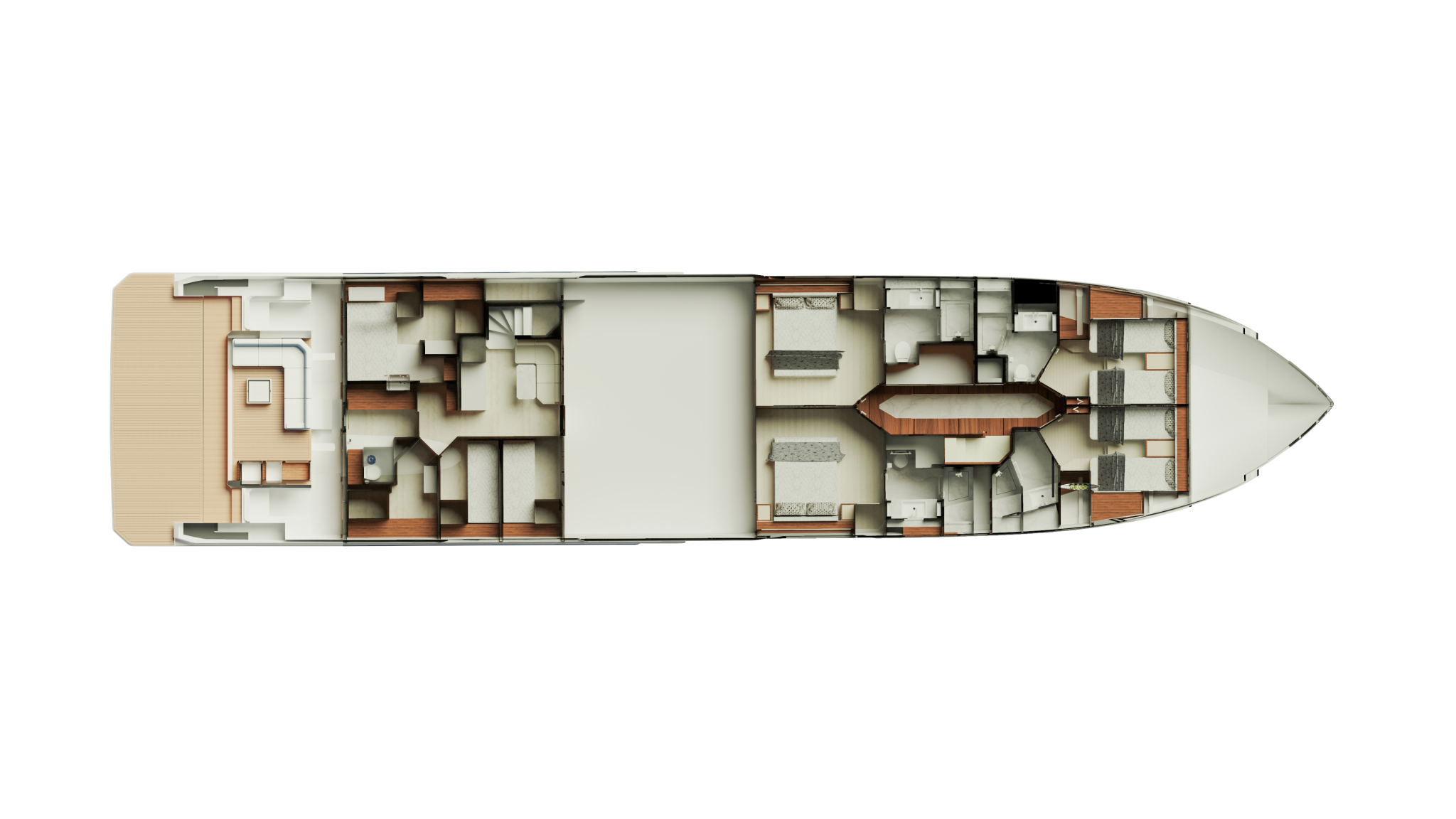

  30R-SKY-4_Lower-Deck-2048x1152 — Ocean Alexander

•

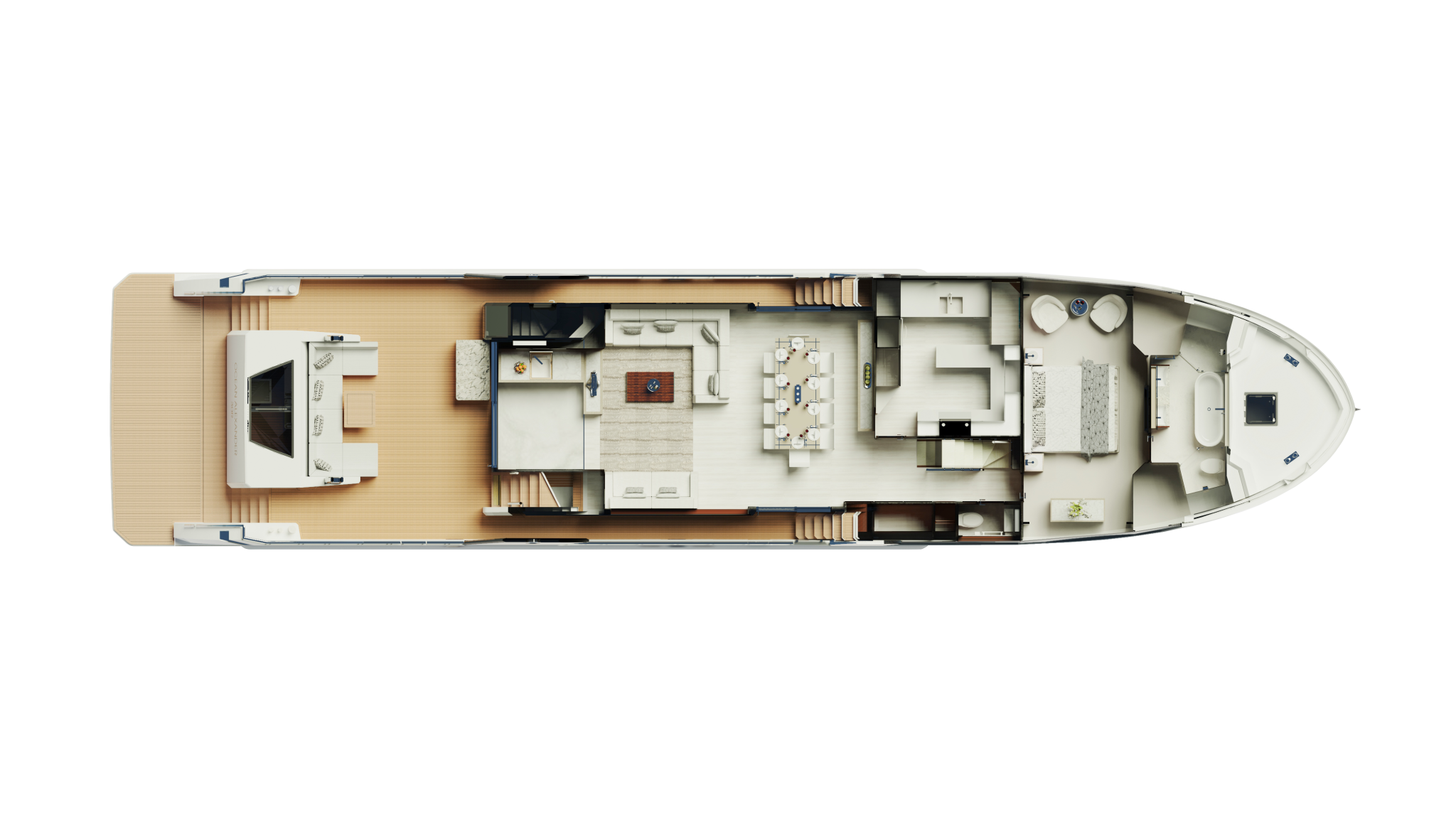

  30R-SKY-3_Main-Deck-2048x1152 — Ocean Alexander

•

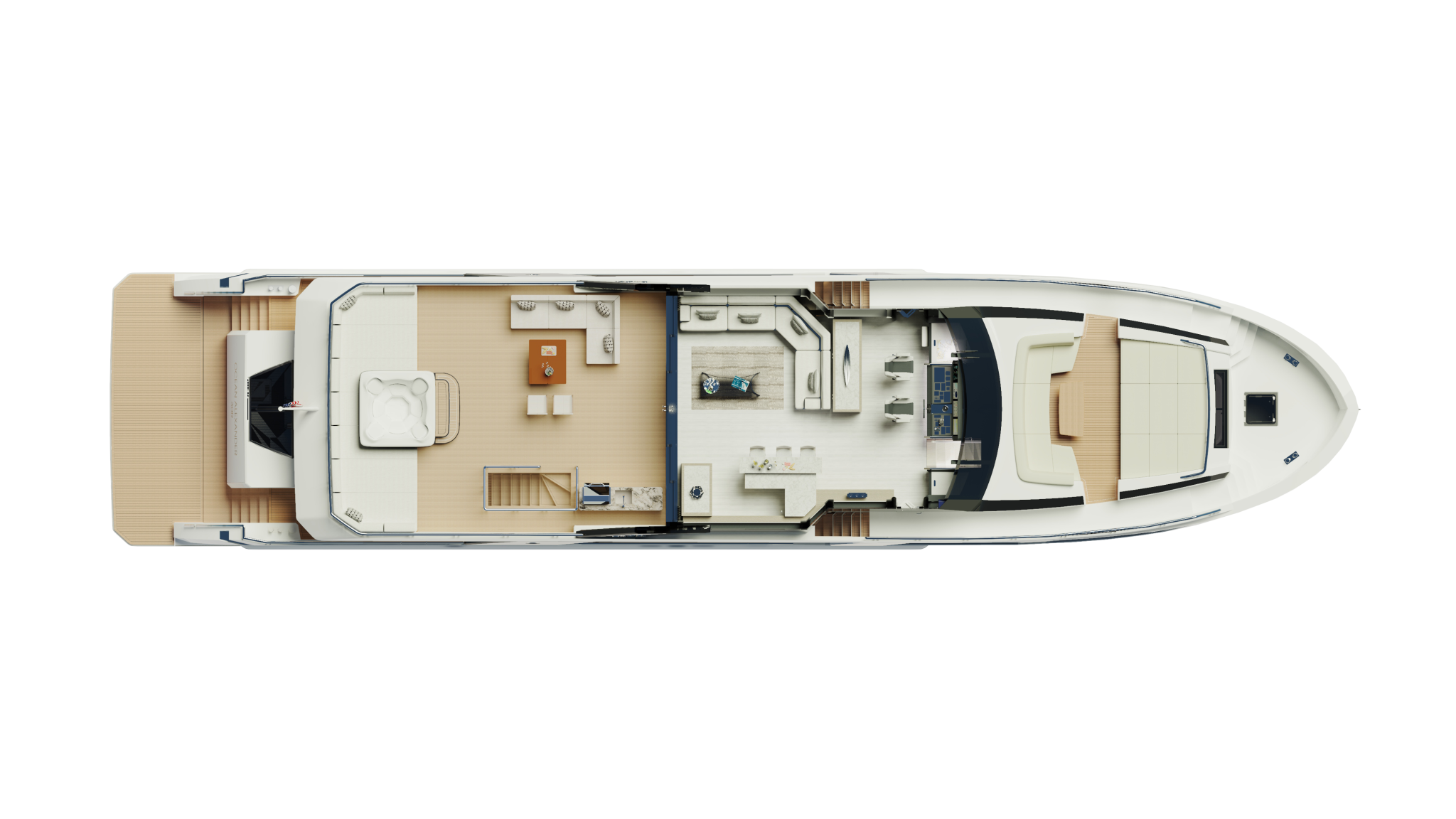

  30R-SKY-2_Skylounge-Deck-2048x1152 — Ocean Alexander

•

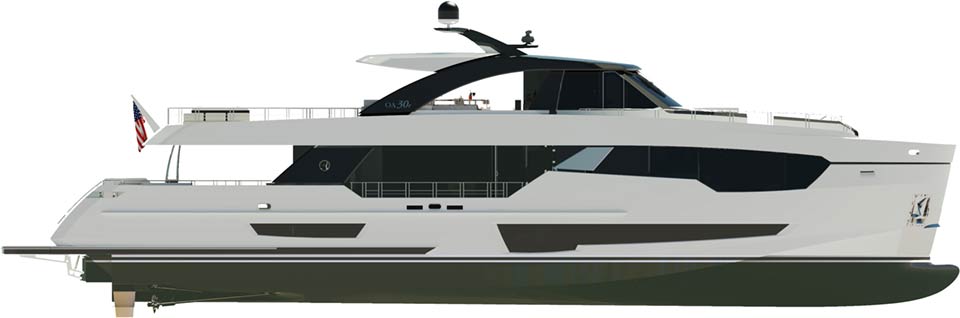

  30R-NGP-1_Profile — Ocean Alexander

About Ocean Alexander

Semi-custom

Taiwanese builder of semi-custom motor yachts that Alex Chueh named in 1977 — nine models from the 26.9-metre 27R to the 40.3-metre 40P in the Revolution, Legend and Puro series, designed with Evan K. Marshall and Giorgio M. Cassetta and built by Alexander Marine in Kaohsiung.

Ocean Alexander says that in 1977 Alex Chueh gave the company his name, his steely endurance and his insistence on engineering that leads the industry, and that the first boats he produced now sell for triple their original price. Building began in 1978 with the Mark I, which the yard calls a sought-after classic that defined its early look; in 1984 the 71-foot custom yacht Night Hawk set a size record for Asian boatbuilding, and in 1986 the production facility doubled. The factory gained ISO-9002 certification in 1998, vacuum infusion of fibreglass components followed in 2004, the first 100-foot megayacht in 2005, and in 2011 a polyurethane skin replaced gelcoat. The 120, designed with Evan K. Marshall, arrived in 2014; in 2016 a U.S. factory opened on Merritt Island, Florida, where the first 70e was built; the 112-foot tri-deck followed in 2017, the Revolution series with the 90R at FLIBS in 2018, the 45-foot Divergence centre console in 2019, a Best of Show award for the 35R at the 2021 Fort Lauderdale show, and in 2022 the Puro series with Italian designer Giorgio Cassetta. Now led by Alex's son Johnny Chueh, the company describes growing from its Taiwan roots into U.S. manufacturing, worldwide service and alliances with leading architects and designers.

The Ocean Alexander Range

Every model Ocean Alexander publishes, by length — where this one sits in the range.

1. Ocean Alexander 40P132.3 ft
2. Ocean Alexander 37L116.5 ft
3. Ocean Alexander 35R115.5 ft
4. Ocean Alexander 35P113.5 ft
5. Ocean Alexander 32L106.6 ft
6. Ocean Alexander 30P103.6 ft
7. Ocean Alexander 30R· this model97.4 ft
8. Ocean Alexander 28L95.3 ft
9. Ocean Alexander 27R88.3 ft
