Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 20.2· Performance
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
published upwind sail area
1 / 7

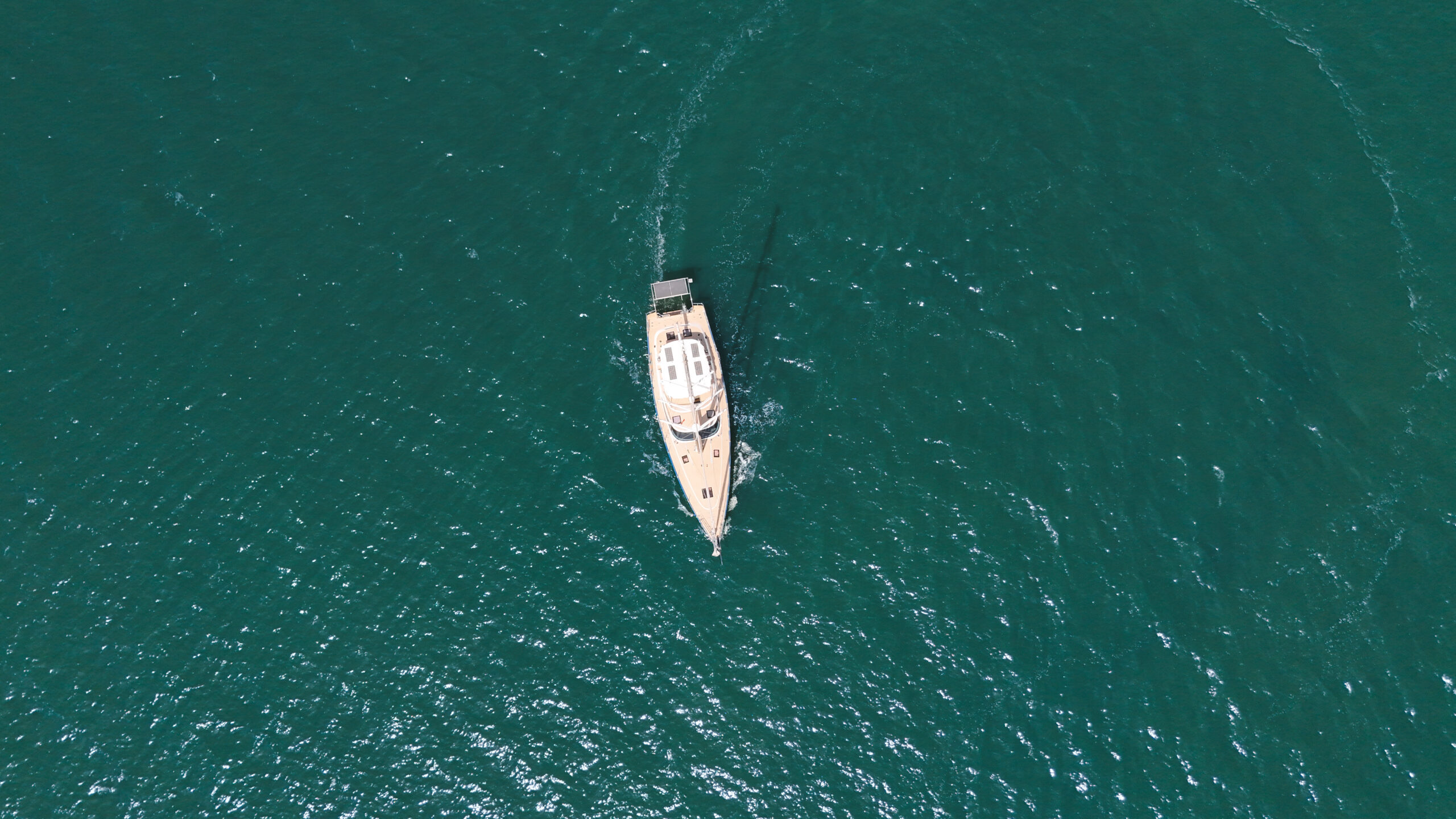

DJI_20250831134922_0089_D-scaled — Kraken Yachts
Summary
Sailing MonohullSail
- Length overall
- 58 ft
- Beam
- 17.1 ft
- Draft
- 7.5 ft
- Air draft
- 98.4 ft
- Displacement
- 60,627 lb
- Sail area (upwind)
- 1,947 ft²
- Cabins
- 4
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Best Suited For
- Liveaboard
From the published figures: LOA 17.67 m · 4 cabins · fresh water 950 L
Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- 193· Moderate
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Ballast ratio
The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.
- 37· Moderate
How it is worked out
ballast ÷ displacement × 100
Comfort ratio
Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.
- 39.6· Moderate offshore
How it is worked out
displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft
Capsize screening
A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.
- 1.74· Below 2
How it is worked out
beam (ft) ÷ (displacement as ft³ of seawater)^⅓
Hull speed
Roughly the speed a displacement hull reaches before it has to climb its own bow wave.
- 9.7 kn
How it is worked out
1.34 × √(waterline length in ft), in knots
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Fuel and water on one scale: a tank twice the height holds twice as much.
- Fuel423 galWater251 gal
Dimensions
- LOA
- 58 ft (17.67 m)
- Hull length
- —
- LWL
- 51.9 ft (15.83 m)
- Beam
- 17.1 ft (5.2 m)
- Draft (min)
- 7.5 ft (2.3 m)
- Draft (max)
- —
- Air draft
- 98.4 ft (30 m)
- Displacement
- 60,627 lb (27,500 kg)
- Ballast
- 22,267 lb (10,100 kg)
- Cabins
- 4
- Heads
- —
- Berths
- —
Sail Plan
- Main sail
- 1,174 ft² (109.09 m²)
- Jib
- 772 ft² (71.75 m²)
- Genoa
- 1,302 ft² (121 m²)
- Sail area
- 1,947 ft² (180.84 m²)
- Downwind sail area
- —
- Rig type
- Solent rig
Engine and Tanks
- Engine
- 150 hp
- Engine count
- 1
- Engine manufacturer
- —
- Propulsion type
- —
- Fuel capacity
- 423 gal (1,600 L)
- Fresh water capacity
- 251 gal (950 L)
- Black water capacity
- 63 gal (240 L)
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- Zero Keel (integral, part of the hull)
- Rudder type
- Alpha Rudder (skeg-hung)
- Steering wheels
- —
Builder's Own Figures
- Beam waterline
- 4.1 m
- Sail area / displacement ratio
- 19.3
- Engine power
- 112 kW
- Ballast ratio
- 34.4%
- STIX
- 89.7
- Grey water
- 500 L
- Displacement (full load)
- 31,300 kg
- Displacement basis
- light ship
Figures read fromkrakenyachts.com/kraken58/· Design specificationread 9/13/2026
Layouts & Drawings

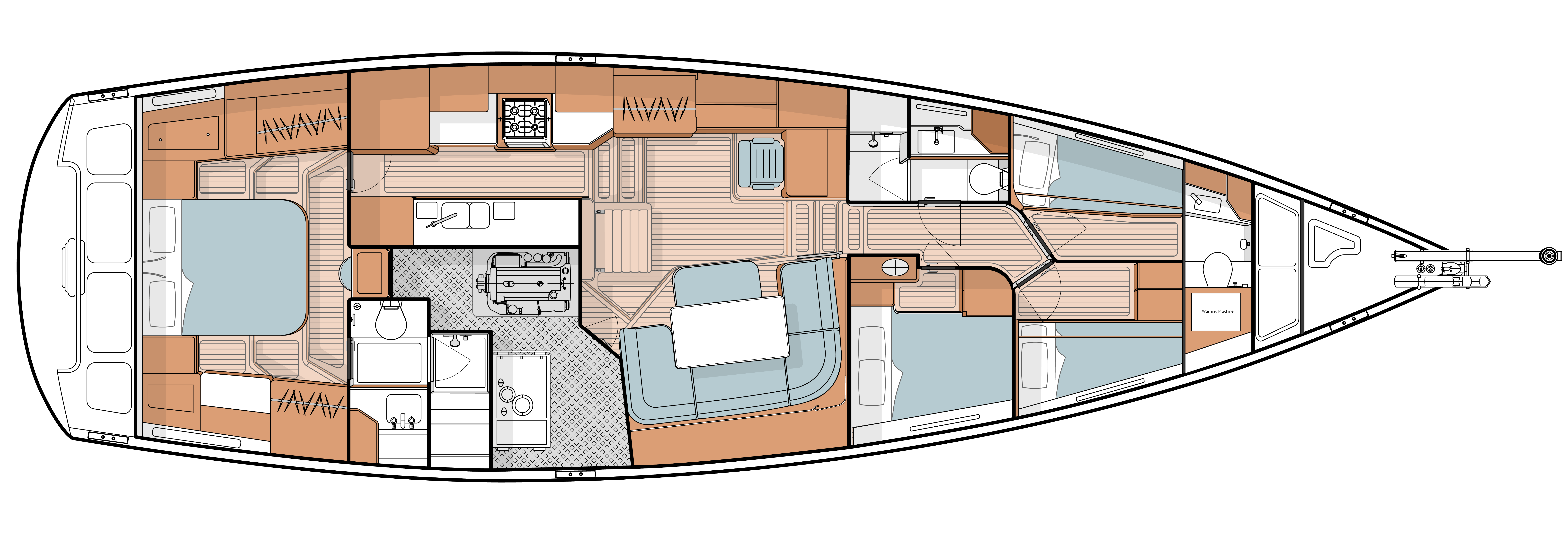

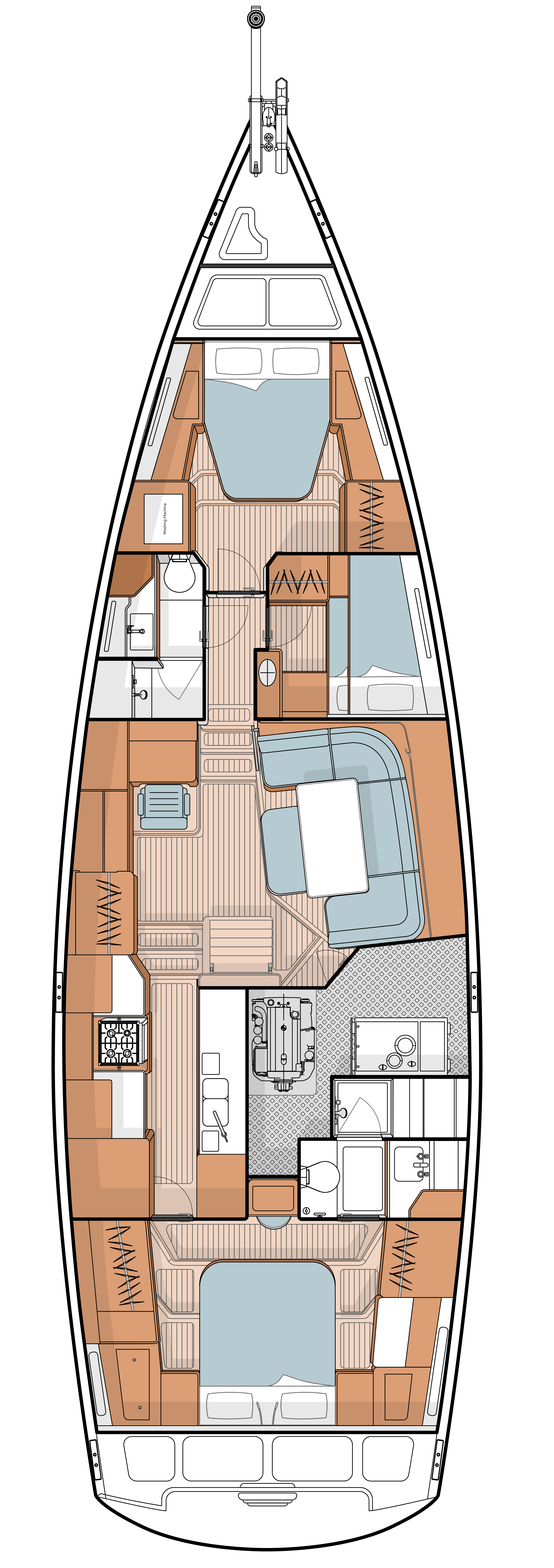

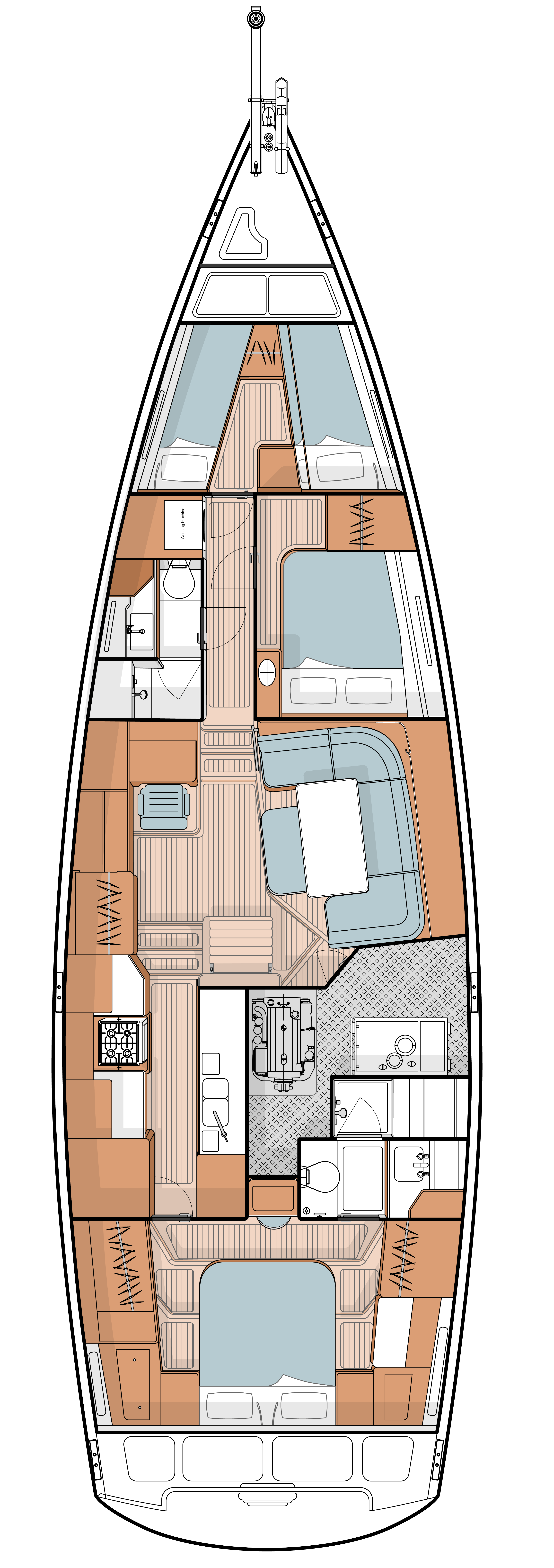

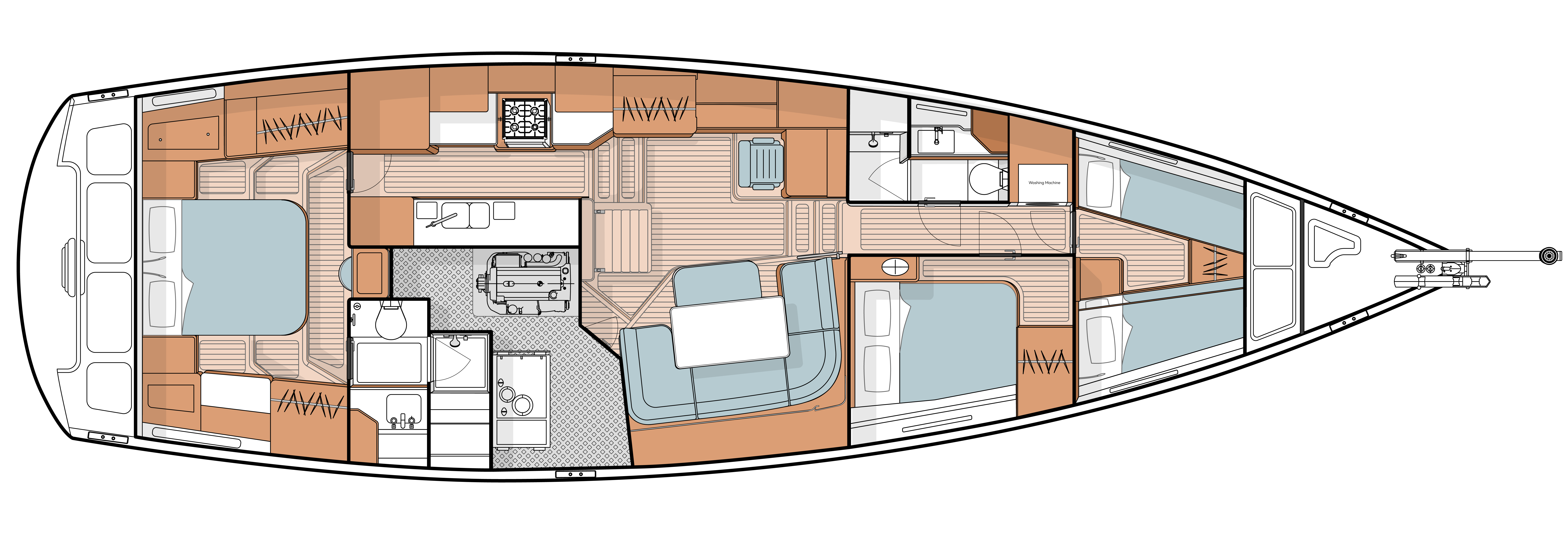

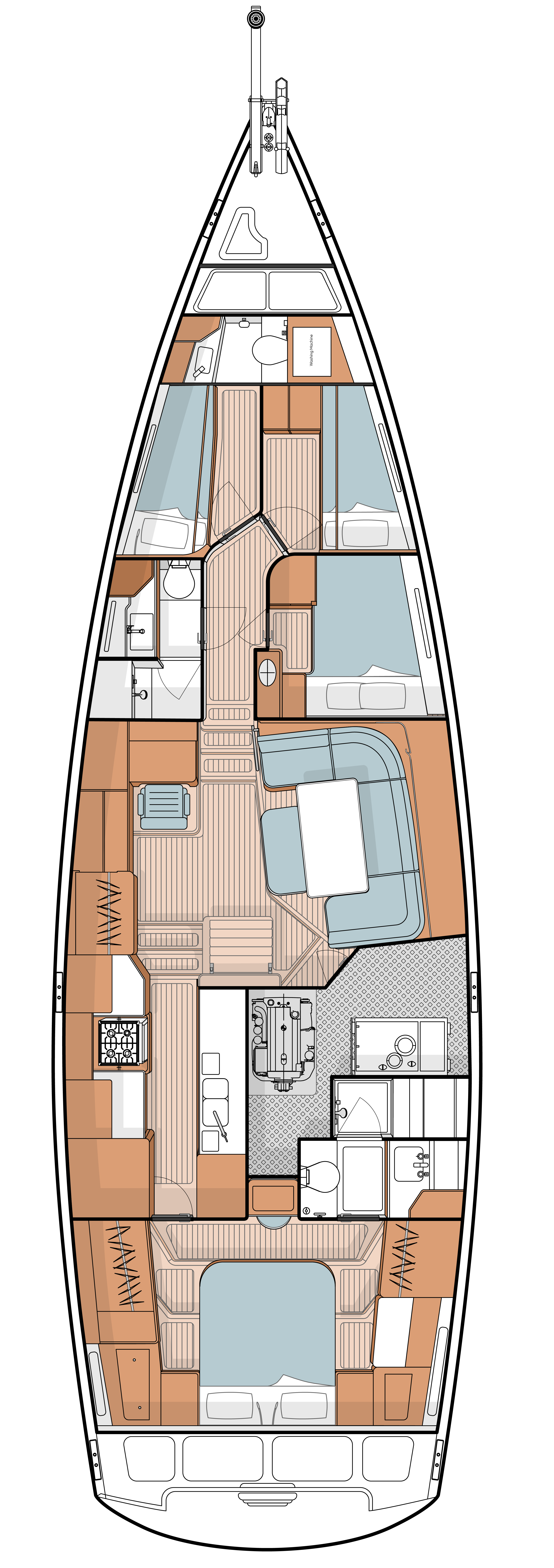

6 drawings from the builder's page: general arrangement, sail plan, profile.
K58_001-GA-June-2024 — Kraken Yachts
K58_002-GA-June-2024 — Kraken Yachts
K58_003-GA-2024 — Kraken Yachts
K58_001-GA-June-2024-Vertical — Kraken Yachts
K58_002-GA-June-2024-Vertical — Kraken Yachts
K58_003-GA-2024-Vertical — Kraken Yachts
Videos
External contentFilms of this model from the builder's official YouTube channel (Kraken Yachts). They are the builder's own; the figures above are the reference.
Kraken DNA - Kraken 58 Under Sail - Discover the Solent Rig
Kraken Yachts · 8/1/2026
Kraken DNA - Kraken 58 Interior Walkthrough with Dick Beaumont
Kraken Yachts · 6/12/2026
Kraken DNA - Kraken 58 Deck Walkthrough with Dick Beaumont
Kraken Yachts · 4/30/2026
Kraken 58 Sails to the European Yacht of the Year Competition
Kraken Yachts · 12/11/2025
Videos whose title names the Kraken 58, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.
About Kraken Yachts
Semi-custom
Builder of heavy-displacement bluewater cruising yachts — the Kraken 44, 50 and 58 — designed around an integral 'Zero Keel' and a skeg-hung 'Alpha Rudder' for ocean passages.
Visit brand pageThe Kraken Yachts Range
Every model Kraken Yachts publishes, by length — where this one sits in the range.
- Kraken 58· this model58 ft
- Kraken 5050 ft
- Kraken 4444.4 ft
