Fairline Squadron 50

Summary

Best Suited For

• Liveaboard

  From the published figures: LOA 15.64 m · 3 cabins · fresh water 482 L

• Coastal Cruising

  From the published figures: CE Category B · LOA 15.64 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

51.3 ft (15.64 m)

Hull length

—

LWL

—

Beam

14.2 ft (4.32 m)

Draft (min)

3.8 ft (1.17 m)

Draft (max)

3.8 ft (1.17 m)

Air draft

—

Displacement

29,762 lb (13,500 kg)

Ballast

—

Cabins

2–3

Heads

—

Berths

4–7

Performance

Maximum speed

32 kn

Cruising speed

—

Range

—

Guests

16

Crew

—

Engine and Tanks

Engine

960–1100 hp (Volvo Penta)

Engine count

2

Engine manufacturer

Volvo Penta

Propulsion type

IPS pods

Fuel capacity

346 gal (1,309 L)

Fresh water capacity

127 gal (482 L)

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Engine options

Twin Volvo Penta IPS650 D6-480, diesel (960hp) - 31 knots / Twin Volvo Penta IPS700 D8-550, diesel (1100hp) - 32 knots

Dry weight (approx.)

13,500kg (13.28 imp. tons / 14.88 US tons)

Capacity

16 persons

Max speed basis

the page's estimate for the most powerful option

Engine power basis

per installation as printed (e.g. Twin ... (680hp) is both engines)

Displacement basis

dry weight, approx.

Draft basis

unloaded

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

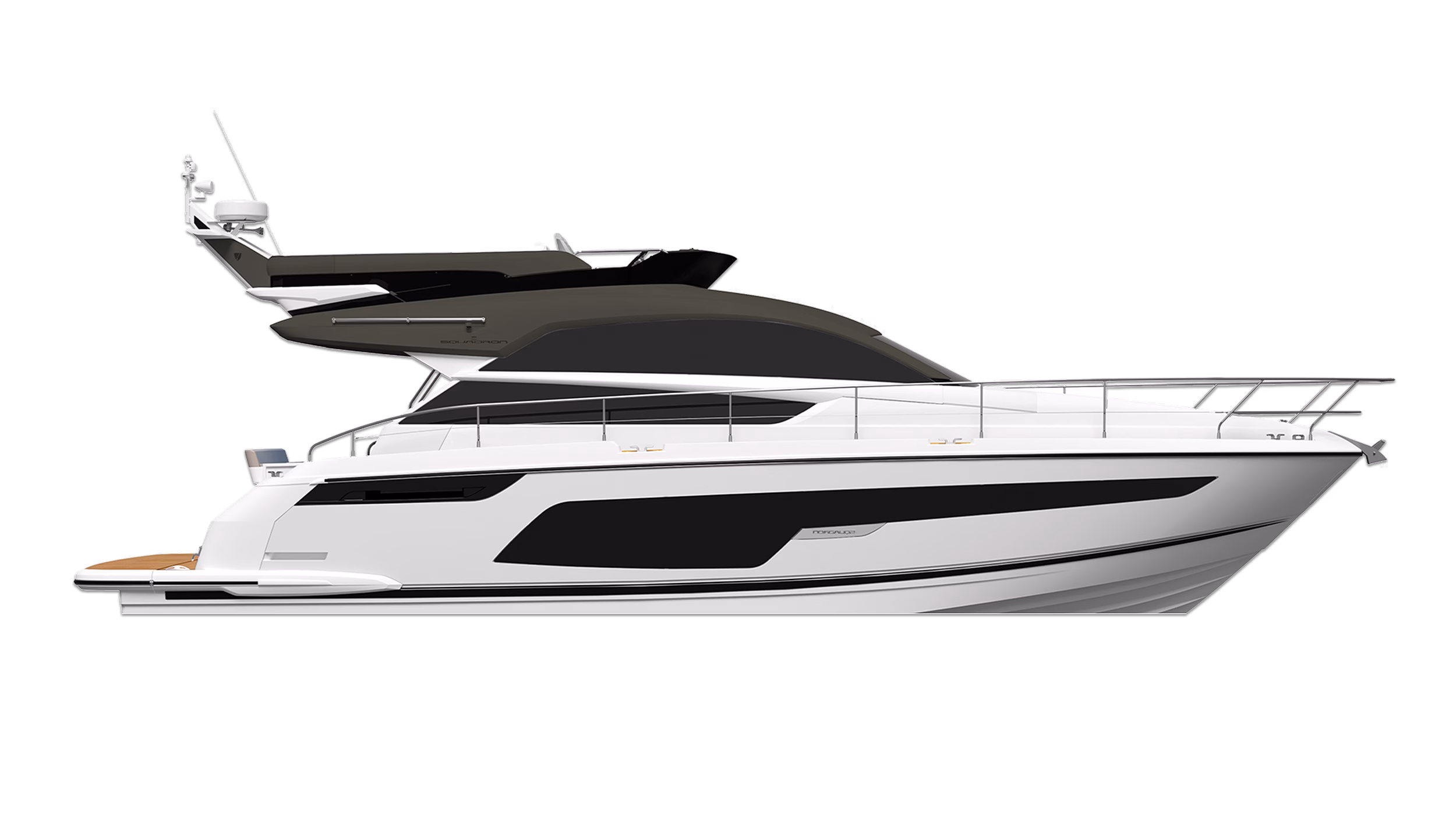

  Squadron-50-Profile — Fairline Yachts

•

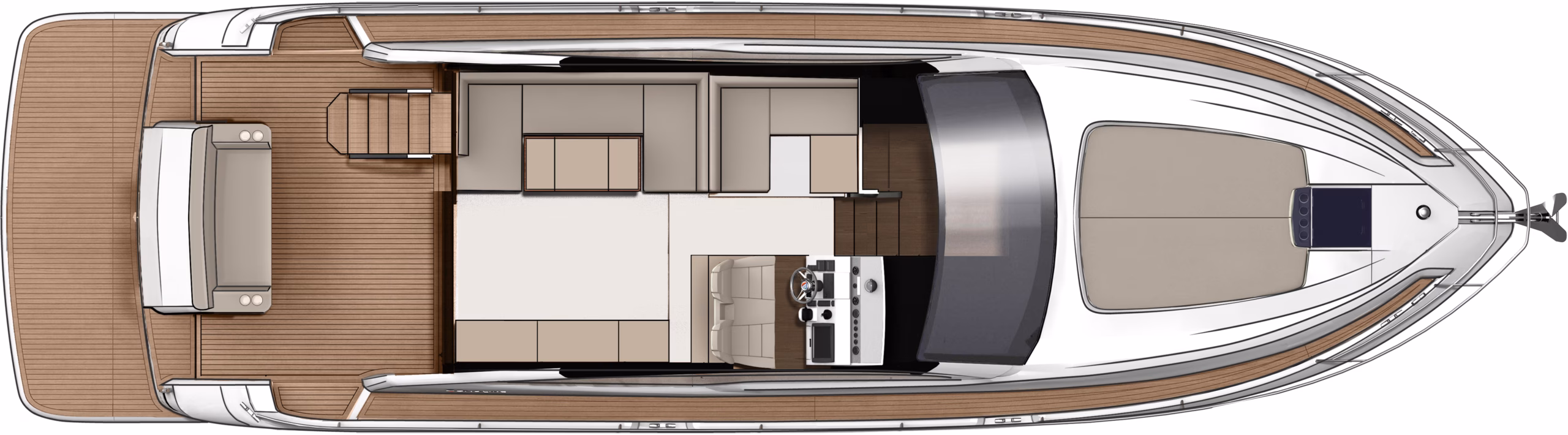

  Squadron_50_Main_Deck_GA-scaled — Fairline Yachts

•

  Squadron-50-2-Cabin — Fairline Yachts

•

  Squadron_50_Flybridge_GA_Cutout-scaled — Fairline Yachts

About Fairline Yachts

Premium production

British builder of hand-built motor yachts from 33 to 65 feet — the F//LINE, Targa, Squadron and Phantom ranges — founded in 1967 at Oundle Marina on the River Nene, where every boat is still built.

Fairline began in 1963, when Jack Newington bought disused gravel pits by the River Nene at Oundle, cut a channel through to the river and built workshops, offices, a chandlery and a slipway. The first boat, the Fairline 19 river cruiser of 1967, blended handcraft with the GRP construction of the day; the Phantom 32 of 1974 gave its name to three decades of family cruisers, the Fairline 40 of 1977 stayed in production a record eleven years, the Turbo 36 of 1981 became an enduring favourite, and the Targa 33 of 1985 set the benchmark for the modern express cruiser. The Queen's Award for Export followed in 1986, the Squadron range opened the large-yacht market with the Squadron 62 in 1991, a purpose-built 60,000 square foot factory opened in Oundle in 2001, and the 10,000th Fairline, a Squadron 65, left the yard in 2003. Gran Turismo versions of the Targa with a powered retractable hardtop came in 2004, the Queen's Award for Enterprise in 2008, and the Targa 63 GTO marked the fiftieth anniversary in 2017; the Targa 43 Open and Squadron 68 took World Yacht Trophies in 2018 and 2019, the F//LINE 33 was 'Superboat' at the 2020 Motorboat of the Year awards, and the Phantom 65 won Motorboat of the Year in 2023.

The Fairline Yachts Range

Every model Fairline Yachts publishes, by length — where this one sits in the range.

1. Fairline Phantom 6565.5 ft
2. Fairline Targa 58 GTO58.4 ft
3. Fairline Squadron 5858.4 ft
4. Fairline Squadron 50· this model51.3 ft
5. Fairline Targa 50 Edition51.3 ft
6. Fairline Targa 47 GT48.3 ft
7. Fairline Targa 47 Open48.3 ft
8. Fairline Targa 4039.3 ft
9. Fairline F//LINE 33 Outboard33.7 ft
10. Fairline F//LINE 3332.8 ft
