Delphia 12 Flylounge

Design

Designer

Andrzej Skrzat / Tony Castro Yacht Design

Summary

Best Suited For

• Coastal Cruising

  From the published figures: CE Category B · LOA 13.4 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

44 ft (13.4 m)

Hull length

39.4 ft (12 m)

LWL

—

Beam

14 ft (4.26 m)

Draft (min)

2.8 ft (0.84 m)

Draft (max)

2.8 ft (0.84 m)

Air draft

11.9 ft (3.63 m)

Displacement

19,290 lb (8,750 kg)

Ballast

—

Cabins

2

Heads

—

Berths

—

Performance

Maximum speed

10.5 kn

Cruising speed

—

Range

—

Guests

—

Crew

—

Engine and Tanks

Engine

110–230 hp (Yanmar (diesel) / Torqeedo (electric))

Engine count

—

Engine manufacturer

Yanmar (diesel) / Torqeedo (electric)

Propulsion type

inboard diesel or electric

Fuel capacity

159 gal (600 L)

Fresh water capacity

132 gal (500 L)

Black water capacity

66 gal (250 L)

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Grey water tank

150 L

Fuel tank

300 L + 300 L (summed)

CE persons

category B 8; category C 12 (certified persons, not guests)

Fresh water tank

200 L + 300 L (summed)

Speed basis

max. speed (diesel) 19.5 km/h as printed -> 10.5 kn

Engine power basis

diesel range as printed in the brochure (110-230 hp); the web page headline says '110HP - 250HP'

Displacement basis

light displacement as printed

Cabins basis

brochure: 'The two cabins have plenty of storage space'

Layouts & Drawings

2 drawings from the builder's page: general arrangement, sail plan, profile.

•

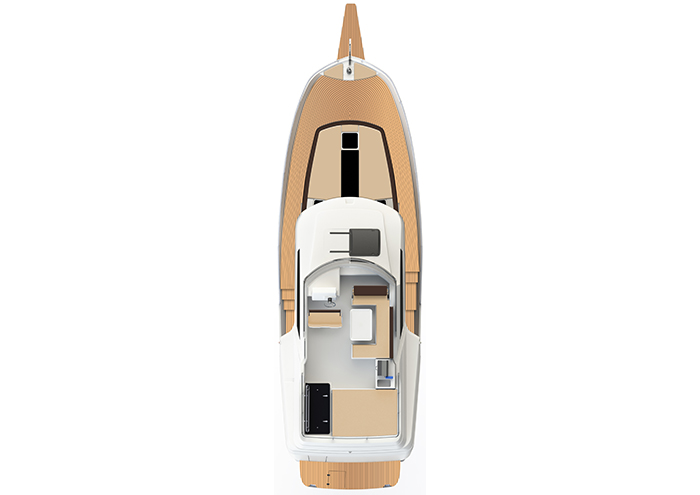

  DELPHIA_12_FLYLOUNGE_LAYOUT_EXTERIOR — Delphia (Groupe Beneteau)

•

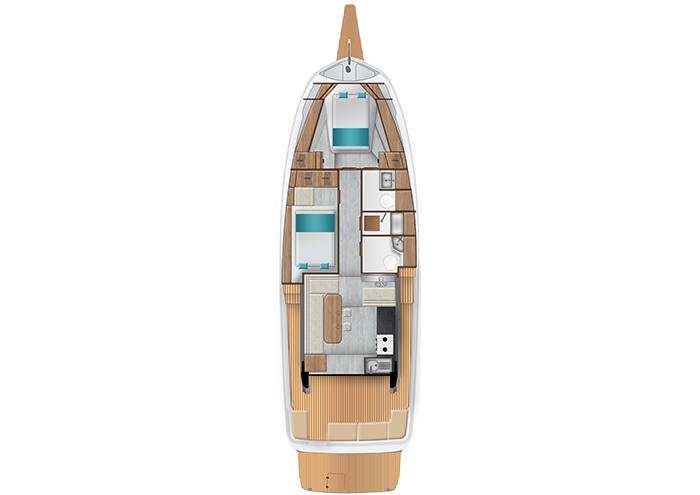

  DELPHIA_12_FLYLOUNGE_LAYOUT_INTERIOR — Delphia (Groupe Beneteau)

About Delphia

Volume production

Groupe Beneteau's 'mindful cruising' marque, born on Poland's Masurian lakes in 1990 — seven displacement motor cruisers of 9.8 to 13.4 m for canals, rivers and sheltered coasts, on Yanmar diesels of 45 to 230 hp or Torqeedo electric drive, designed by Vripack and Tony Castro.

Delphia was born among the Masurian lakes of Poland and has more than thirty years of boatbuilding behind it. Since 2018 it has been part of Groupe Bénéteau, and with that backing set itself a particular ambition: to lead electric boating on inland waters and along the coast, with ranges wholly electric by 2025. What it builds is meant for slow, quiet sailing -- time taken rather than distance covered.

The Delphia Range

Every model Delphia publishes, by length — where this one sits in the range.

1. Delphia 12 Flylounge· this model44 ft
2. Delphia 12 Sedan44 ft
3. Delphia 11 Flylounge35.3 ft
4. Delphia 11 Sedan35.3 ft
5. Delphia 10 Lounge32.1 ft
6. Delphia 10 LoungeTop32.1 ft
7. Delphia 10 Sedan32.1 ft
