Delphia 11 Sedan

Design

Designer

Tony Castro Yacht Design

Summary

Best Suited For

• Coastal Cruising

  From the published figures: CE Category B · LOA 10.77 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

35.3 ft (10.77 m)

Hull length

32.8 ft (9.99 m)

LWL

—

Beam

12.6 ft (3.85 m)

Draft (min)

2.6 ft (0.8 m)

Draft (max)

2.6 ft (0.8 m)

Air draft

10.8 ft (3.3 m)

Displacement

15,024 lb (6,815 kg)

Ballast

—

Cabins

1–3

Heads

1–2

Berths

—

Performance

Maximum speed

9.4 kn

Cruising speed

—

Range

—

Guests

—

Crew

—

Engine and Tanks

Engine

57–150 hp (Yanmar (diesel) / Torqeedo (electric))

Engine count

—

Engine manufacturer

Yanmar (diesel) / Torqeedo (electric)

Propulsion type

inboard diesel or electric

Fuel capacity

106 gal (400 L)

Fresh water capacity

100 gal (380 L)

Black water capacity

45 gal (170 L)

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Layouts

1 cabin(s) & 1 bathroom(s); 2 cabin(s) & 2 bathroom(s); 3 cabin(s) & 2 bathroom(s); 2 cabin(s) & 1 bathroom(s)

Grey water tank

170 L

Air draught

2,95 m / 3,30 m as printed (the larger is stored)

CE persons

category B 10; category C 14; category D 14 (certified persons, not guests)

Electric version

max. engine power 80 hp (55,10kW) (Torqeedo)

Speed basis

max. speed (diesel) 17.5 km/h as printed -> 9.4 kn; electric 16.5 km/h

Engine power basis

diesel range as printed in the brochure (57-150 hp); the web page headline says '57HP - 250HP'

Displacement basis

light displacement as printed

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

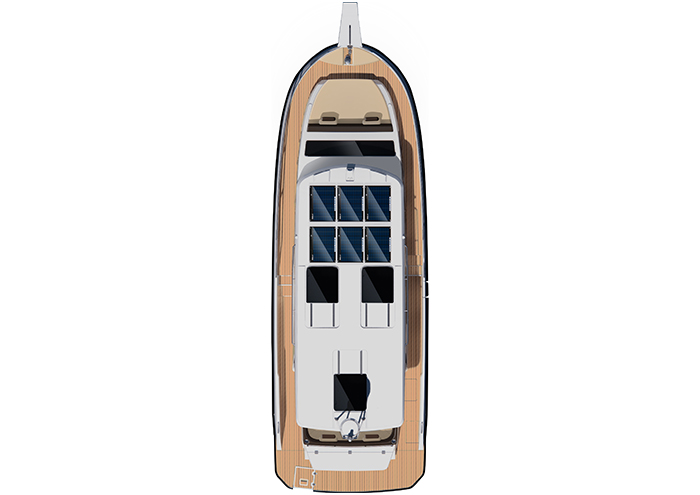

  DELPHIA_11_SEDAN_LAYOUT_ROOF — Delphia (Groupe Beneteau)

•

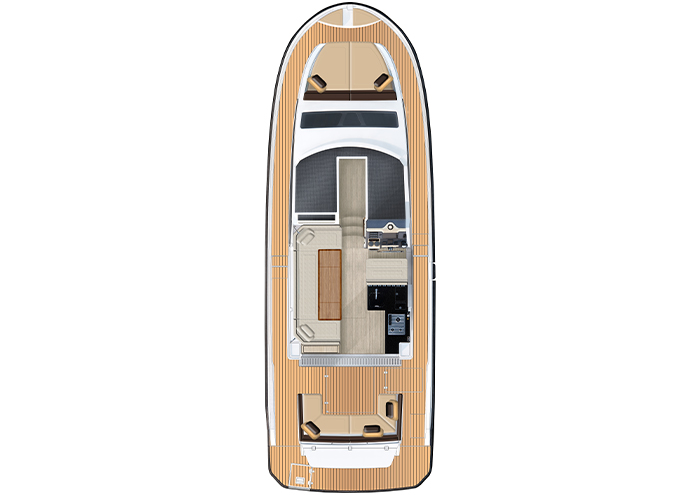

  DELPHIA_11_SEDAN_LAYOUT_MAINDECK — Delphia (Groupe Beneteau)

•

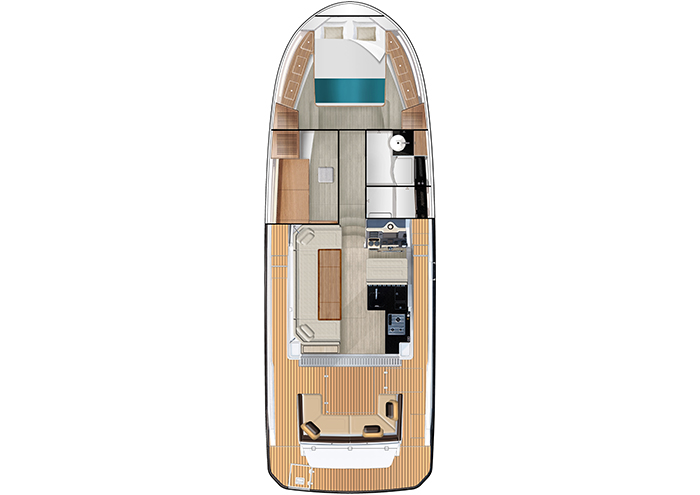

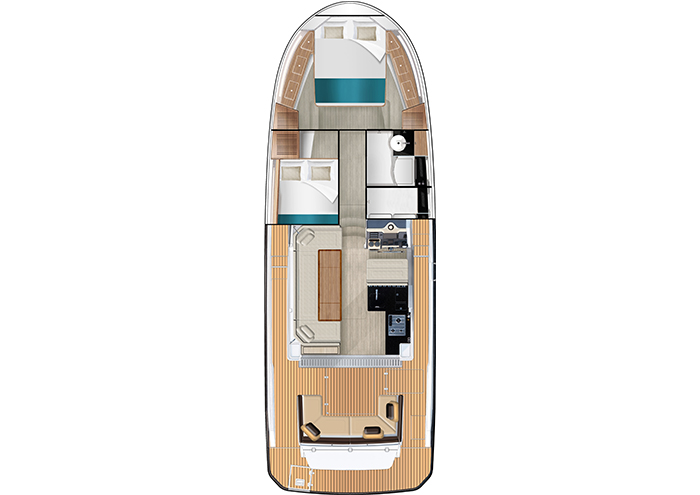

  DELPHIA_11_SEDAN_LAYOUT_1CABIN%261BATHROOM — Delphia (Groupe Beneteau)

•

  DELPHIA_11_SEDAN_LAYOUT_2CABINS%261BATHROOM — Delphia (Groupe Beneteau)

Films of this model from the builder's official YouTube channel (DelphiaYachtsTV). They are the builder's own; the figures above are the reference.

•

  Delphia 11 Sedan electric - Walkthrough

  DelphiaYachtsTV · 1/9/2023

Videos whose title names the Delphia 11 Sedan, from the channel the builder's site links; last checked 9/30/2026. Playing one loads YouTube's player, which may set cookies.

About Delphia

Volume production

Groupe Beneteau's 'mindful cruising' marque, born on Poland's Masurian lakes in 1990 — seven displacement motor cruisers of 9.8 to 13.4 m for canals, rivers and sheltered coasts, on Yanmar diesels of 45 to 230 hp or Torqeedo electric drive, designed by Vripack and Tony Castro.

Delphia was born among the Masurian lakes of Poland and has more than thirty years of boatbuilding behind it. Since 2018 it has been part of Groupe Bénéteau, and with that backing set itself a particular ambition: to lead electric boating on inland waters and along the coast, with ranges wholly electric by 2025. What it builds is meant for slow, quiet sailing -- time taken rather than distance covered.
