Arksen 75

Design

Designer

Humphreys Yacht Design

Naval architect

Humphreys Yacht Design

Interior designer

Design Unlimited

Summary

Best Suited For

• Bluewater Cruising

  From the published figures: explorer · range 6500 nm

• Liveaboard

  From the published figures: LOA 23.9 m · 4 cabins · fresh water 4000 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

78.4 ft (23.9 m)

Hull length

—

LWL

—

Beam

20.8 ft (6.35 m)

Draft (min)

4.8 ft (1.46 m)

Draft (max)

—

Air draft

—

Displacement

—

Ballast

—

Cabins

3–4

Heads

—

Berths

8

Performance

Maximum speed

—

Cruising speed

9 kn

Range

6500 nm

Guests

—

Crew

—

Engine and Tanks

Engine

301 hp

Engine count

2

Engine manufacturer

—

Propulsion type

twin diesel; serial hybrid optional

Fuel capacity

3,857 gal (14,600 L)

Fresh water capacity

1,057 gal (4,000 L)

Black water capacity

—

Construction

Hull material

aluminium (70% recycled content)

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Engines

2 x 224 kW (301 hp), maker not named; hybrid optional

Classification

UK MCA Category 0 (Unrestricted)

Hull form

Modeshift hullform by Humphreys Yacht Design

Accommodation

three or four cabin layout; berths up to 8

Cruising speed as printed

9–11 knots

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

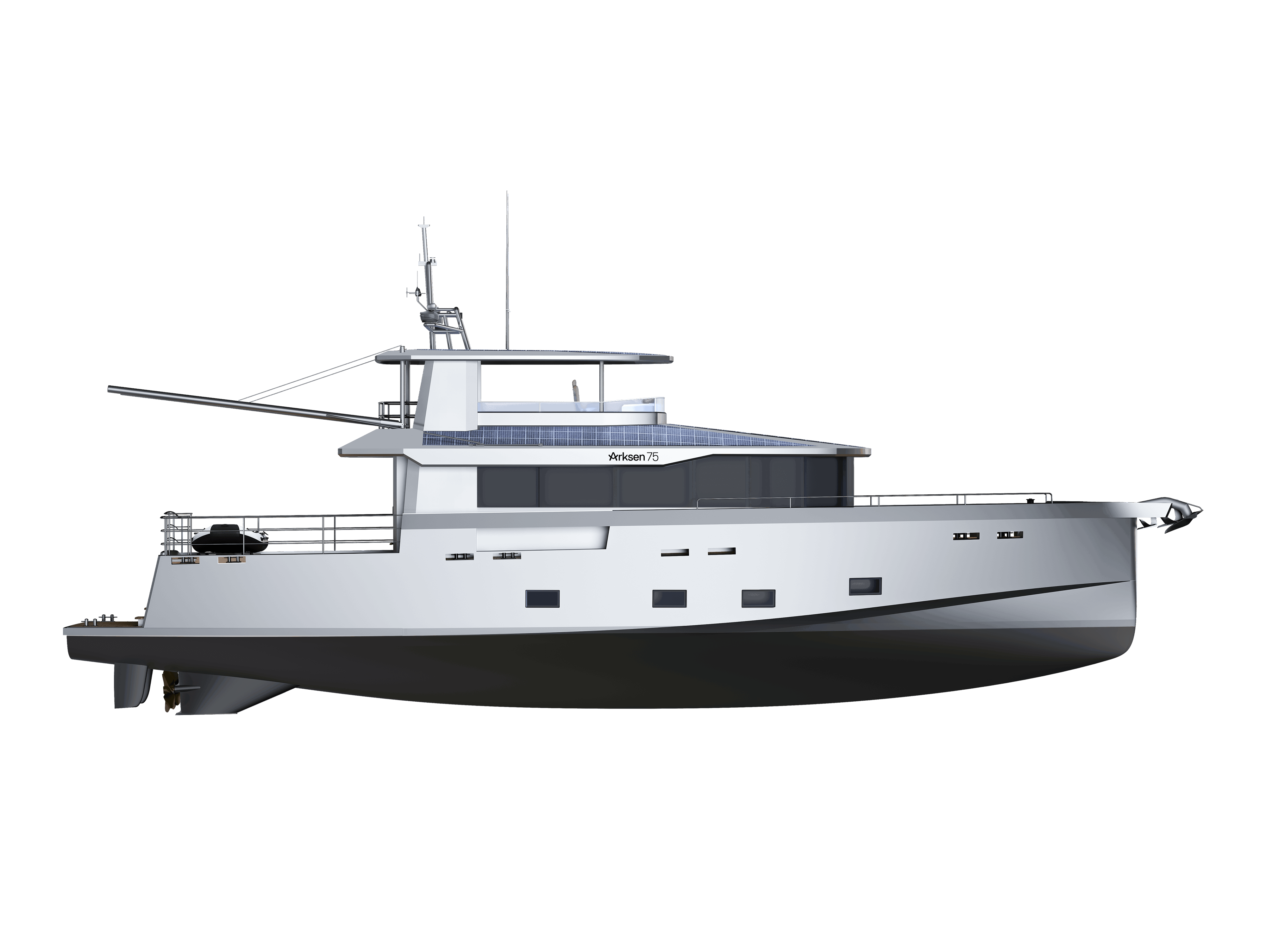

  75-render_side_inventory_1 — Arksen

•

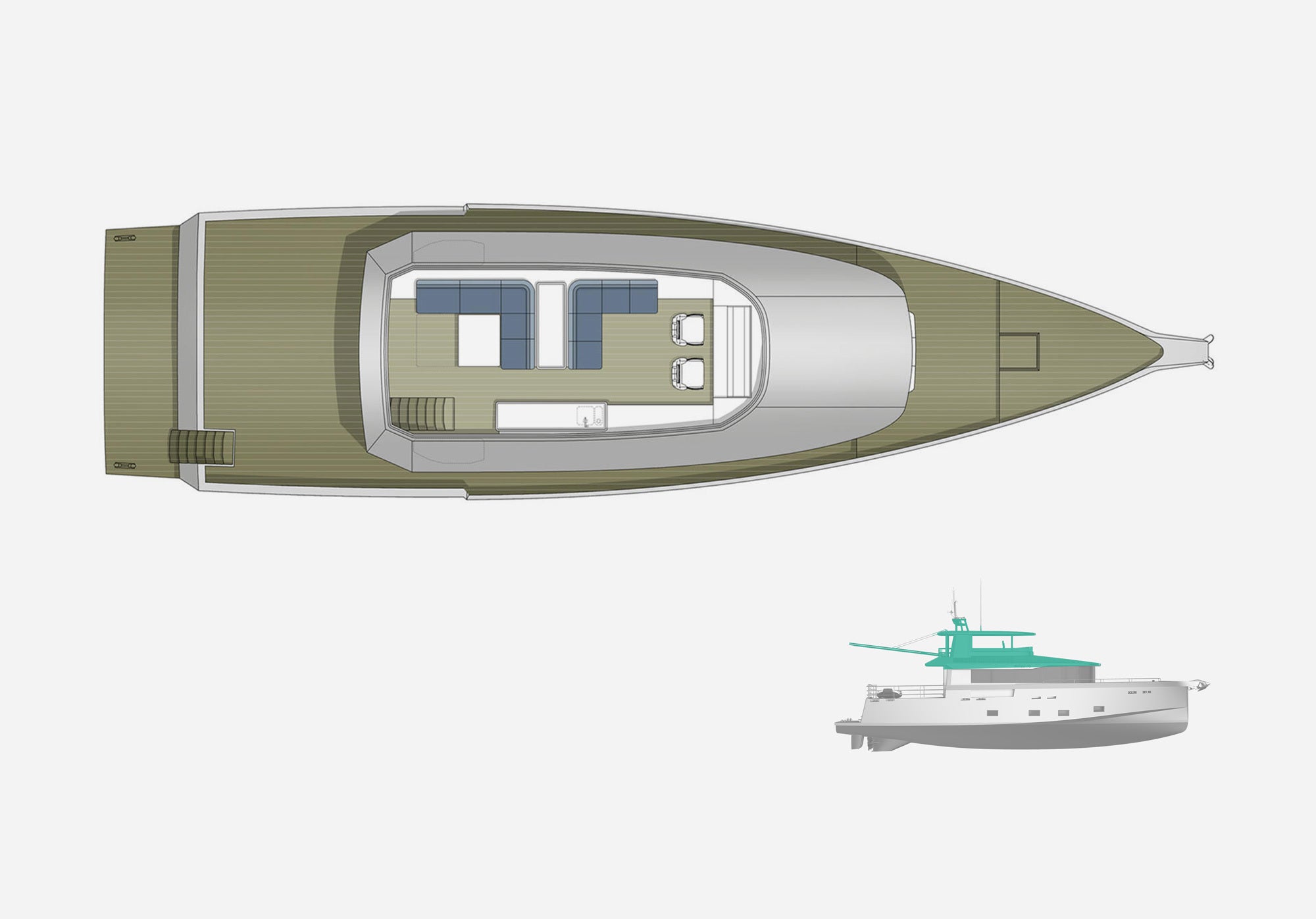

  Arksen-75-Upper_Deck_Standard — Arksen

•

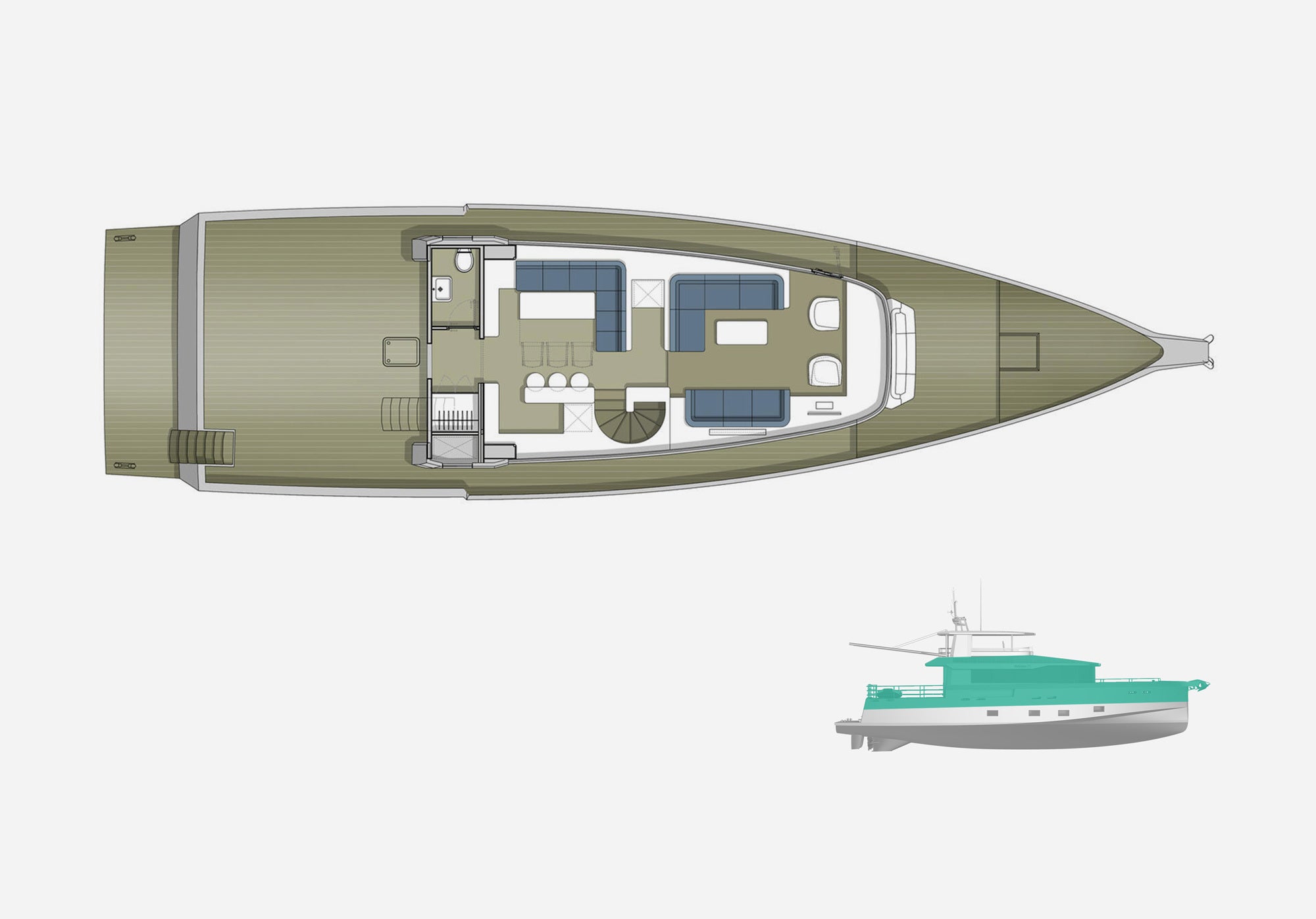

  Arksen-75-Main_Deck_Galley_Down — Arksen

•

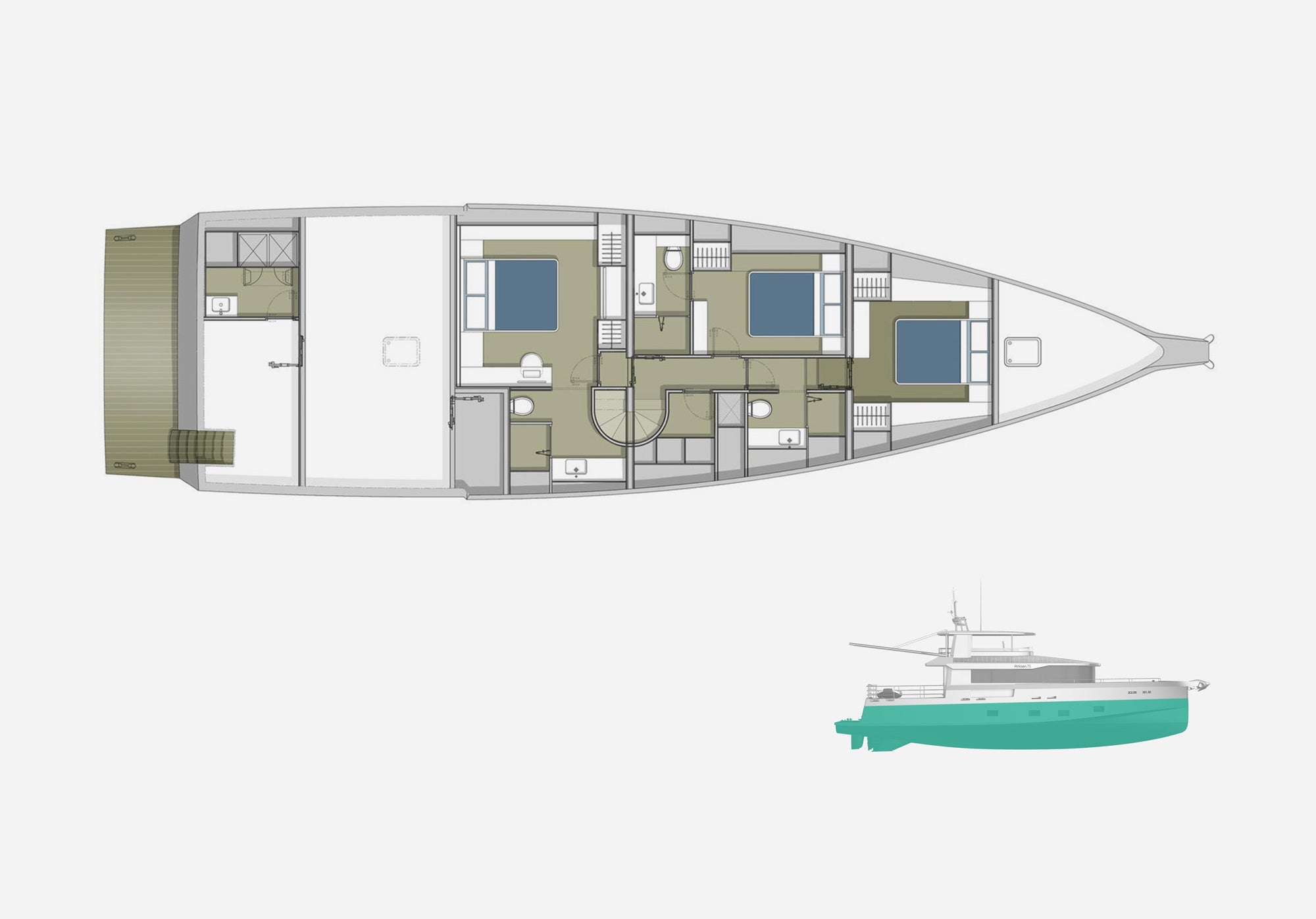

  Arksen-75-Lower_Deck_Standard — Arksen

About Arksen

Semi-custom

British adventure company founded by Jasper Smith that builds aluminium explorer yachts and boats — the Humphreys-designed Arksen 85, 75 and 65 with ranges of 3,700 to 7,000 nautical miles, the Finnish-built Adventure Series 55 and 35, and the Discovery Series RIBs 10 and 8.

Arksen's founder traces the company to a voyage in 1994, when he sailed Ardevora, a 55-foot Ron Holland ketch, from Hong Kong to Alaska by way of Japan, Kamchatka and the Aleutian Islands, reaching Sitka in the autumn seven months later; after a decade of mountaineering and climbing, he writes, it was that trip more than any other that changed him, and the film the crew shot sat on a shelf for decades. The company itself, the about page says, began at sea in 2016, when Jasper Smith and his son Stormy were sailing off Greenland and the scale and fragility of the ice cap turned a sailor's conviction into a company; having spent years climbing and sailing with his other son Harper as well, they set out to share that experience. Arksen describes itself as a young company whose team has crossed every ocean, working with long-standing partners that include Humphreys Yacht Design, Wight Shipyard Co., Kewatec, Design Unlimited and Aivan, and building explorer vessels, performance apparel and expeditions; its founder also established the charity 10% for the Ocean, which pools charitable giving across a coalition of brands for marine conservation.

The Arksen Range

Every model Arksen publishes, by length — where this one sits in the range.

1. Arksen 8589.9 ft
2. Arksen 75· this model78.4 ft
3. Arksen 6569.9 ft
4. Arksen 5556.8 ft
5. Arksen 3536.4 ft
6. Arksen 1035.4 ft
7. Arksen 826.2 ft
