A105

Name: A105
Brand: Arcadia Yachts

In production

1 / 9

2-1-1 — Arcadia Yachts

Summary

Motor MonohullInboard Diesel

Length overall: 103.6 ft
Beam: 25.5 ft
Maximum speed: 16 kn
Cruising speed: 14 kn
Guests: 8
Crew: 5
Displacement: 319,670 lb
Engine power: 1000 hp
Cabins: 4

* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Speed

Cruising speed14 kn
Top speed16 kn

Power to weight

Total engine power per tonne of published displacement — more means livelier acceleration for the hull. Drawn for motor yachts.

13.8 hp/t

2 × 1,000 hp · 145 t

Tanks

Fuel and water on one scale: a tank twice the height holds twice as much.

Fuel4,121 gal
Water740 gal

Dimensions

LOA: 103.6 ft (31.57 m)
Hull length: 96.2 ft (29.32 m)
LWL: 91.2 ft (27.81 m)
Beam: 25.5 ft (7.76 m)
Draft (min): 7.1 ft (2.16 m)
Draft (max): —
Air draft: —
Displacement: 319,670 lb (145,000 kg)
Ballast: —
Cabins: 4
Heads: —
Berths: —

Performance

Maximum speed: 16 kn
Cruising speed: 14 kn
Range: —
Guests: 8
Crew: 5

Engine and Tanks

Engine: 1000 hp (MAN)
Engine count: 2
Engine manufacturer: MAN
Propulsion type: —
Fuel capacity: 4,121 gal (15,600 L)
Fresh water capacity: 740 gal (2,800 L)
Black water capacity: 159 gal (600 L)

Construction

Hull material: GRP
Deck material: —
Rudder type: —
Steering wheels: —

Builder's Own Figures

Maximum Speed: ± 16 kN
Solar panel energy: ± 4,4 KW
Gross tonnage: 199 GT
Guest beds: 8 beds in 4 cabins
Grey water: 600 L
Hull and main deck: Fiberglass
Cruise Speed: ± 14 kN
Mediterranean version Generator(s): 2 x 45 kW - 50 Hz
Tropical version Generator(s): 2 x 55 kW- 60 Hz
Veranda material: Aluminium
Crew beds: 5 beds in 3 cabins
Main engines: 2x MAN V8-1.000 hp
Mediterranean version Air Conditioning: 216.000 Btu/h
Tropical version Air Conditioning: 240.000 Btu/h
Engine power basis: per engine as printed
Displacement basis: under full load, as printed (145 tons / 320.000 lb)

Figures read fromarcadiayachts.it/en/yachts/a105-technical-data-en/· Technical Dataread 10/17/2026

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

a105-1-1 — Arcadia Yachts

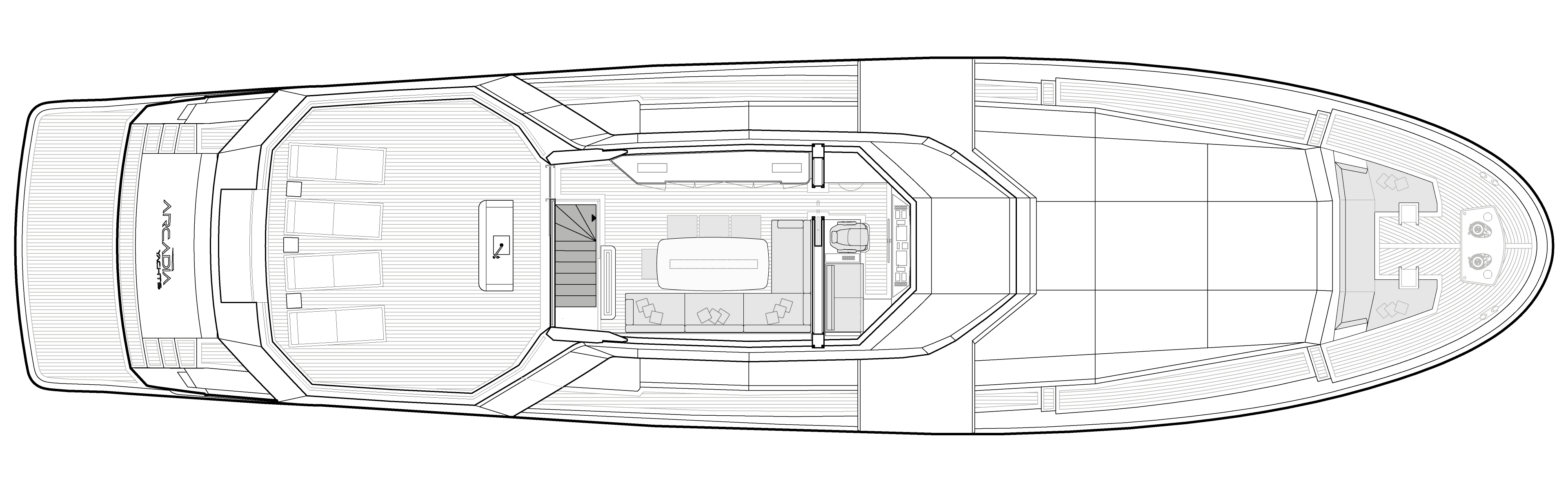

a105-upper-deck — Arcadia Yachts

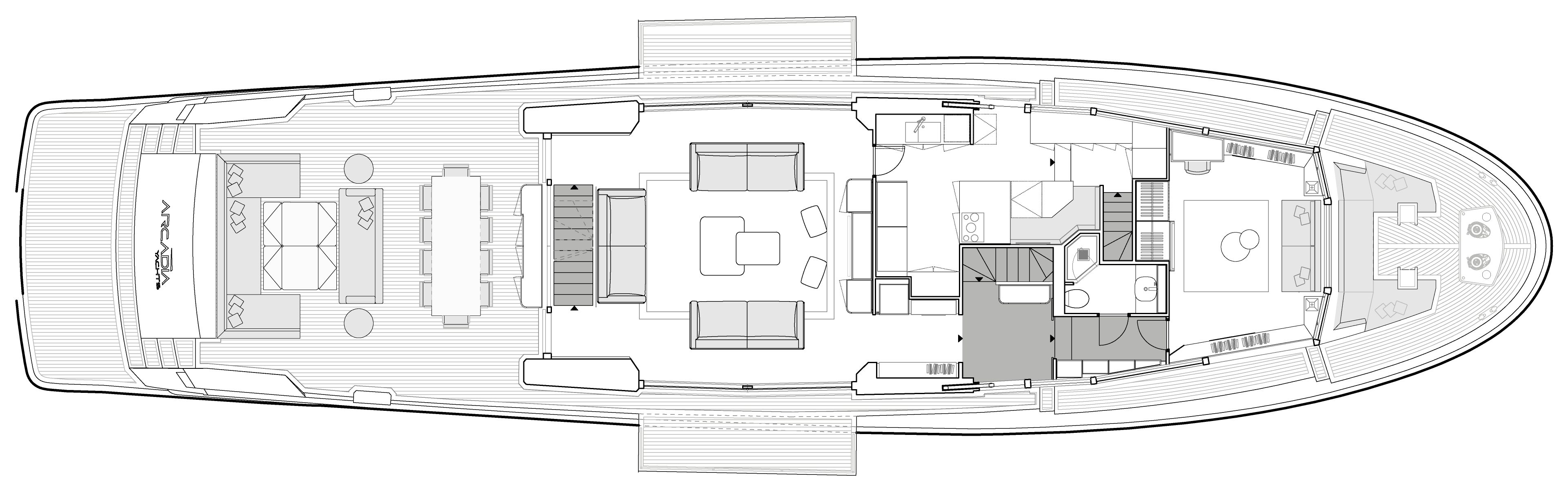

a105-main-deck — Arcadia Yachts

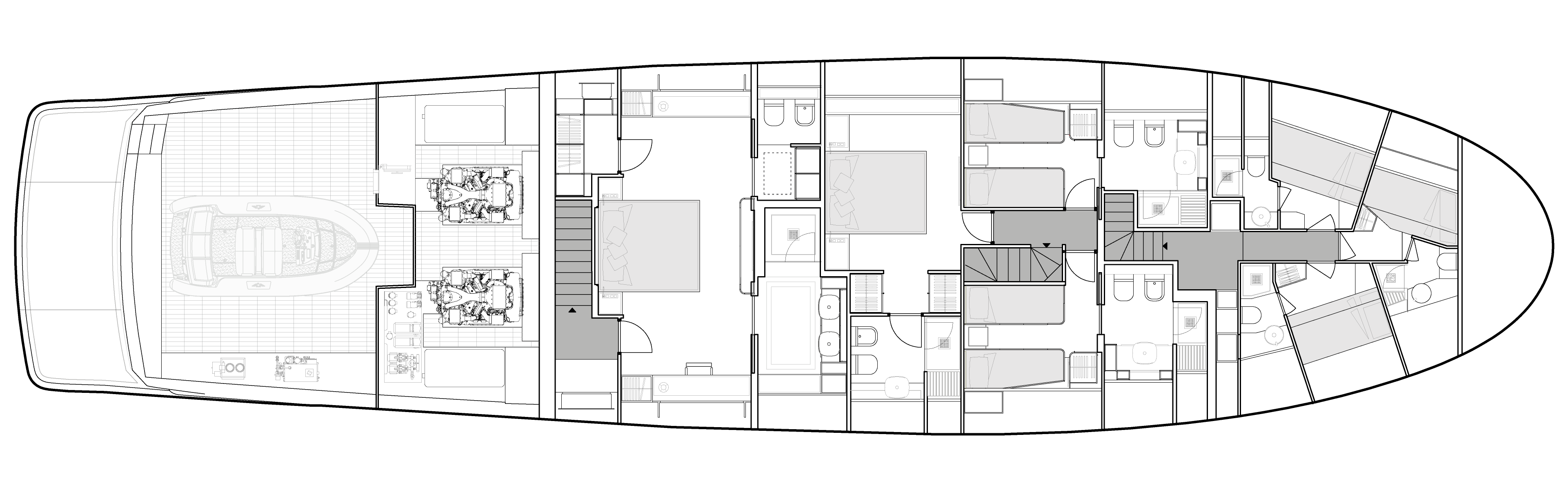

a105-lower-deck — Arcadia Yachts

About Arcadia Yachts

Semi-custom

Neapolitan builder of glass-walled, solar-roofed semi-displacement motor yachts — seven models in the A and Sherpa collections, from the 18.7-metre Sherpa 60 to the 35-metre A115, built at Torre Annunziata on the Bay of Naples.

Arcadia Yachts places its roots in the culture around Naples — from ancient Pompeii and the Maritime Republic of Amalfi to the Neapolitan Renaissance and the city's cooking — and says its yachts carry on that long love story with the sea. The page marks one date: 22 December 2009, the launch of the first Arcadia 85, bound for Düsseldorf, under a line from Ugo Pellegrino: 'When there's an idea, you're halfway through the journey.' The yard calls its approach the 'Yachting Renaissance', a way of cruising built around people rediscovering a more natural harmony with the sea, with large spaces and windows that open the boat to nature, which technology is meant to protect. The name comes from classical literature, where Arcadia was an idyllic land whose people lived in perfect harmony with nature.
