Nautor Swan ClubSwan 50vsSaffier SL 46

ClubSwan 50 is 6 ft longer than Saffier SL 46 (12%). Saffier SL 46 is 0.8 ft wider than ClubSwan 50 (6%). Saffier SL 46 is the heaviest at 24,030 lb, 32% more than ClubSwan 50.

Anyone with the link sees this comparison.

Key differences

Worked out from the published figures below — arithmetic, not opinion.

At a glance

Dark icons are the standard layout; faded ones are what the larger layout adds.

Length : beam is length divided by beam — the higher it is, the slimmer the hull. Multihulls read low by nature.

A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.

Model
Nautor Swan ClubSwan 50

Nautor Swan

ClubSwan 50

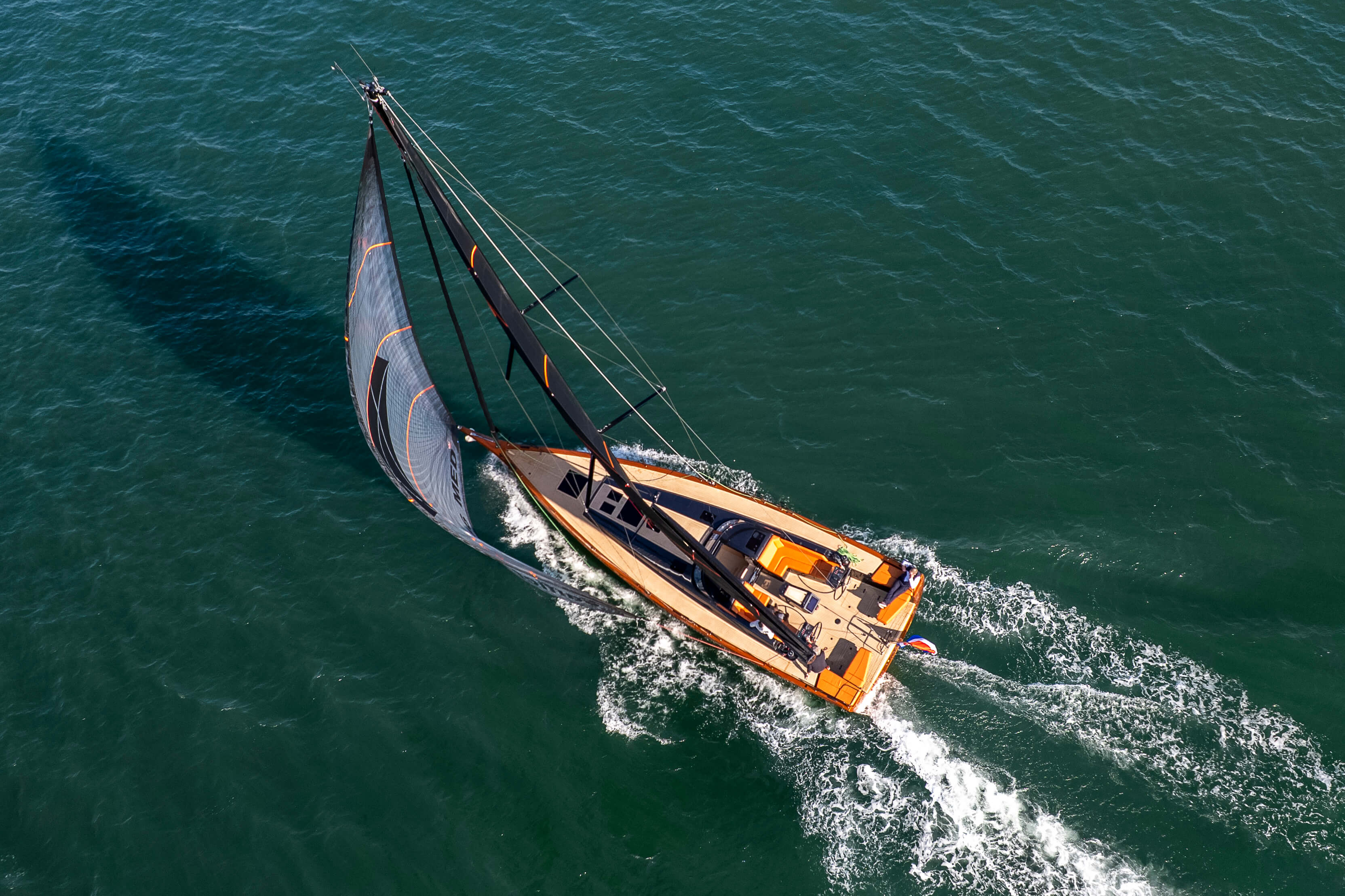

Fallback Image - Saffier SL46 MED sailing yacht exterior

Saffier Yachts

Saffier SL 46
Overview
BrandNautor SwanSaffier Yachts
ModelClubSwan 50Saffier SL 46
GenerationUnknownUnknown
Hull typeSailing MonohullSailing Monohull
PropulsionSailSail
Production statusIn productionIn production
Production start yearUnknownUnknown
Production end yearUnknownUnknown
DesignerJuan KouyoumdijanD. Hennevanger | Kees van de Stadt
Dimensions
LOA54.9 ft48.9 ft
Hull length50 ft45.1 ft
Beam13.8 ft14.6 ft
Draft7.2 ft–11.5 ft7.2 ft–8.9 ft
Displacement18,188 lb24,030 lb
Accommodation
Cabins2–33
Heads21–2
BerthsUnknown6
Performance & Rig
Main sail1,001 ft²732 ft²
JibUnknown538 ft²
GenoaUnknownUnknown
Upwind sail areaUnknownUnknown
Downwind sail area2,530 ft²2,142 ft²
Engine power40 hp57 hp–70 hp
Engine count11
Materials
Hull materialcarbon fibreVacuum infused fibreglass
Deck materialUnknownUnknown
Mast materialUnknownUnknown
Keel typeUnknownUnknown
Rudder typeUnknownUnknown
Sources

12 of 13 figures here carry the builder's own words

15 of 15 figures here carry the builder's own words

Size, to scale

Each boat's published length and beam seen from above, and its mast height and draft from the side, all drawn on one scale.

From above — length × beam
0 ft10 ft20 ft30 ft40 ft50 ftClubSwan 50: 54.9 ft × 13.8 ftSaffier SL 46: 48.9 ft × 14.6 ftClubSwan 5054.9 ft × 13.8 ftSaffier SL 4648.9 ft × 14.6 ft

Outlines are schematic; the dimensions are the builder's.

From the side — height above and depth below the water
WaterlinePerson, 5.9 ftClubSwan 50: air draft not published / 11.5 ftair draft not published11.5 ftClubSwan 50Saffier SL 46: 74.1 ft / 8.9 ft74.1 ft8.9 ftSaffier SL 46

Drawings side by side

Each boat's layouts, profiles and sail plans as its builder published them. Step through each column to line up the drawings you want to compare.

No drawings collected yet for Saffier SL 46.

Speed, power & tanks

What the builders publish about how fast, how strong and how far — each figure on one scale for every boat.

Tanks

One scale per liquid across every boat: a tank twice the height holds twice as much.

  • ClubSwan 50

    Fuel45 gal
    Water63 gal

  • Saffier SL 46

    Fuel58 gal
    Water106 gal

    18 gal of water per berth

How they sail, in numbers

Classic yacht-design ratios worked out from each builder's published figures. They compare boats; they don't grade them.

Sail area / displacement

How much sail the boat carries for its weight — its power in light air.

ModestCruiserPerformanceRacing162024Saffier SL 46: 24.4
  • ClubSwan 50not published: sail area
  • Saffier SL 4624.4· Racing
How it is worked out

sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔

Saffier SL 46: mainsail + jib, added up

Displacement / length

How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.

UltralightLightModerateHeavyVery heavy100180270350ClubSwan 50: 84
  • ClubSwan 5084· Ultralight
  • Saffier SL 46not published: waterline length
How it is worked out

displacement (long tons) ÷ (0.01 × waterline length in ft)³

Ballast ratio

The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.

LowModerateHigh3040ClubSwan 50: 42Saffier SL 46: 39
  • ClubSwan 5042· High
  • Saffier SL 4639· Moderate
How it is worked out

ballast ÷ displacement × 100

Comfort ratio

Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.

LightCoastalModerate offshoreHeavy offshoreVery heavy20304050ClubSwan 50: 17.4
  • ClubSwan 5017.4· Light
  • Saffier SL 46not published: waterline length
How it is worked out

displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft

Capsize screening

A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.

Below 22 and above2ClubSwan 50: 2.10Saffier SL 46: 2.02
  • ClubSwan 502.10· 2 and above
  • Saffier SL 462.02· 2 and above
How it is worked out

beam (ft) ÷ (displacement as ft³ of seawater)^⅓

Hull speed

Roughly the speed a displacement hull reaches before it has to climb its own bow wave.

  • ClubSwan 509.1 kn
  • Saffier SL 46not published: waterline length
How it is worked out

1.34 × √(waterline length in ft), in knots

Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
