Solaris Power 70 Grand Coupé

Design

Designer

Dragoni Design Lab Solaris Power Design Team

Summary

Best Suited For

• Liveaboard

  From the published figures: LOA 21.24 m · 4 cabins · 4 heads · fresh water 1200 L

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

69.7 ft (21.24 m)

Hull length

62.6 ft (19.08 m)

LWL

61.2 ft (18.65 m)

Beam

19.7 ft (5.99 m)

Draft (min)

4.9 ft (1.49 m)

Draft (max)

5.2 ft (1.6 m)

Air draft

—

Displacement

116,845 lb (53,000 kg)

Ballast

—

Cabins

3–4

Heads

3–4

Berths

—

Performance

Maximum speed

24 kn

Cruising speed

18 kn

Range

—

Guests

—

Crew

1

Engine and Tanks

Engine

900–1000 hp (Volvo Penta)

Engine count

2

Engine manufacturer

Volvo Penta

Propulsion type

IPS pods

Fuel capacity

1,083 gal (4,100 L)

Fresh water capacity

317 gal (1,200 L)

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Max persons capacity

18 (certified persons, not guests)

Engines

2 x Volvo Penta D13-IPS 1200 662 kW / 900 hp 2300 rpm | optional: 2 x Volvo Penta D13- IPS 1350 735 kW / 1000 hp 2400 rpm

Cruising speed as printed

18 kn - IPS 1350

Speed basis

max = highest printed (largest engine option), cruising = lowest printed (standard engine)

Bathrooms as printed

3 + 1 (optional) + 1 (crew)

Engine power basis

per engine; min = standard engine, max = largest option

Cabins as printed

3 + 1 (optional) + 1 (crew) (crew cabin not counted)

Max speed as printed

24 kn - IPS 1350

Displacement basis

approx. light displacement as printed

Draft basis

per engine option as printed: 1,49 m / 4’10” (IPS 1200) 1,60 m / 5’3” (IPS 1350)

Layouts & Drawings

6 drawings from the builder's page: general arrangement, sail plan, profile.

•

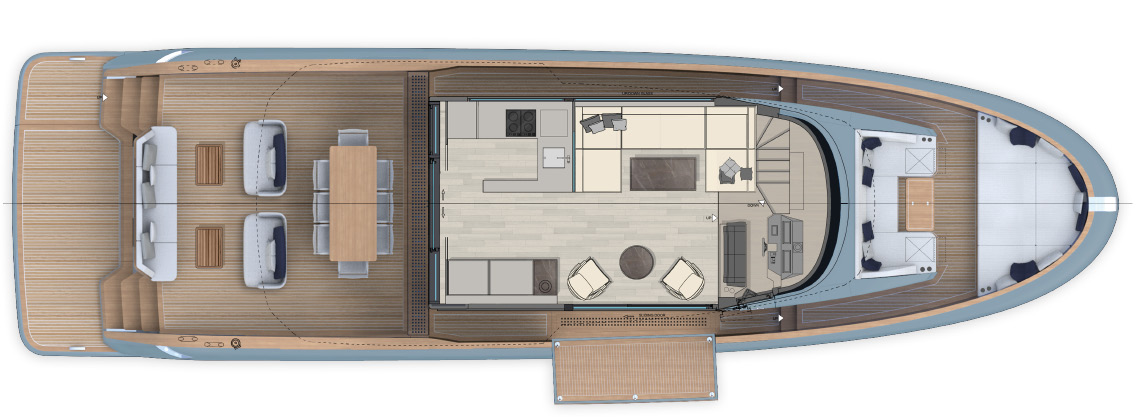

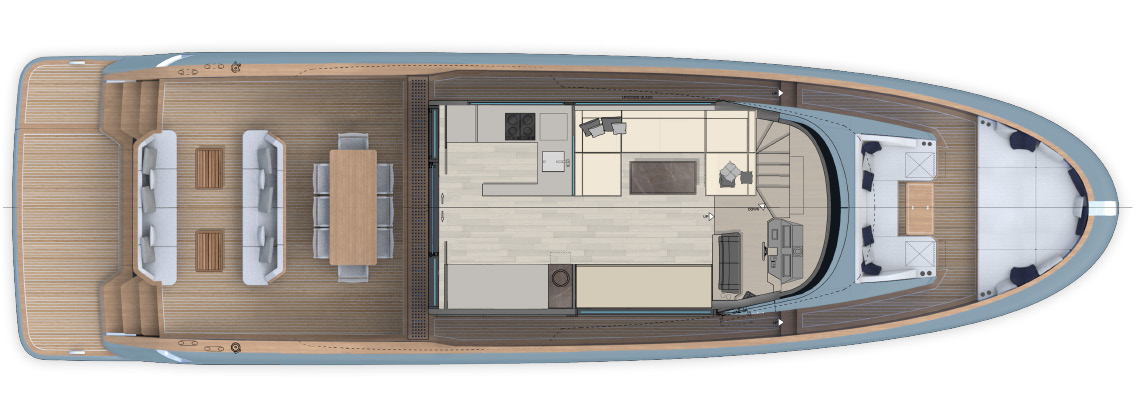

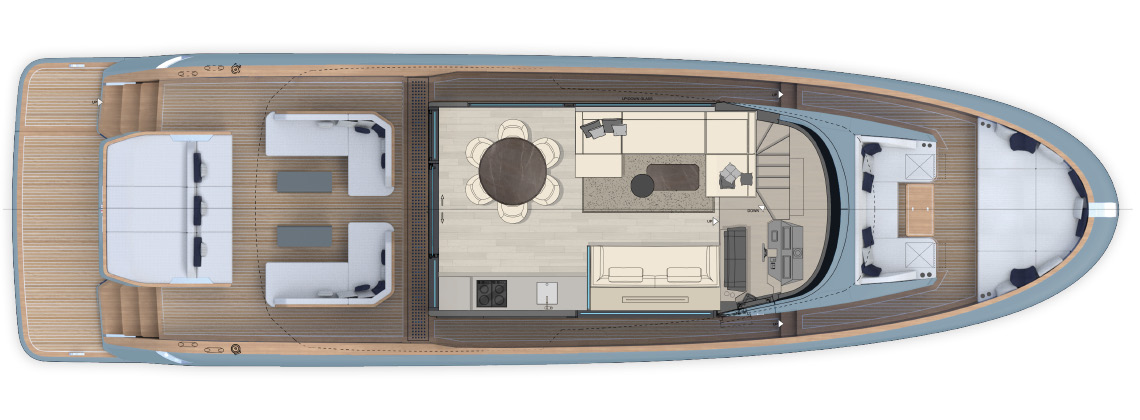

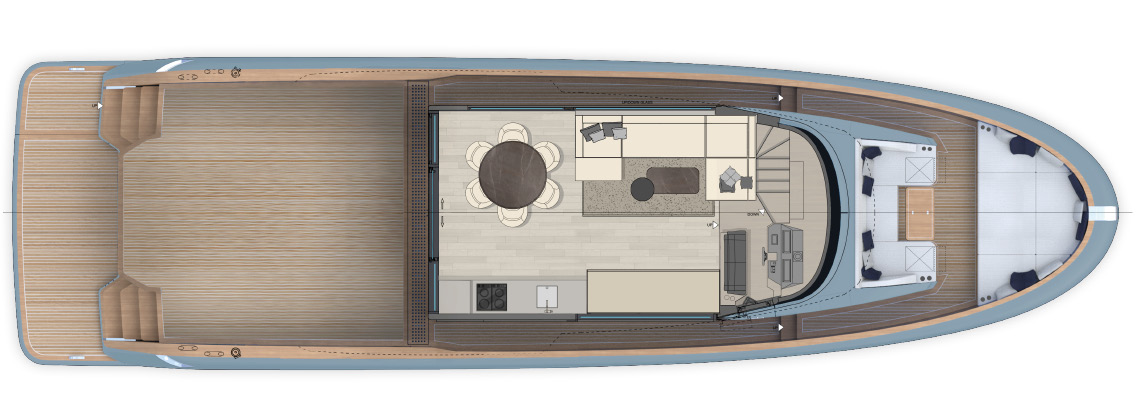

  70-gc-layout-deck-d — Solaris Yachts S.r.l. (Solaris Power)

•

  70-gc-layout-deck-c — Solaris Yachts S.r.l. (Solaris Power)

•

  70-gc-layout-deck-b — Solaris Yachts S.r.l. (Solaris Power)

•

  70-gc-layout-deck-a — Solaris Yachts S.r.l. (Solaris Power)

•

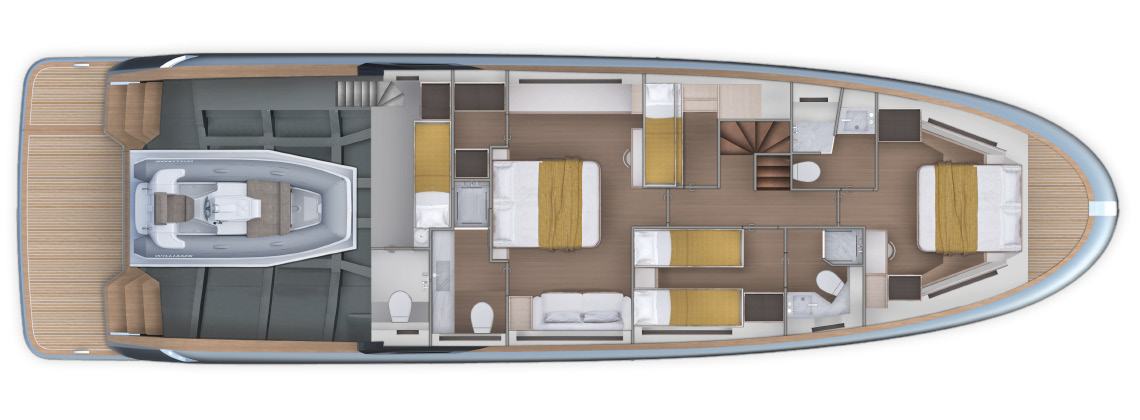

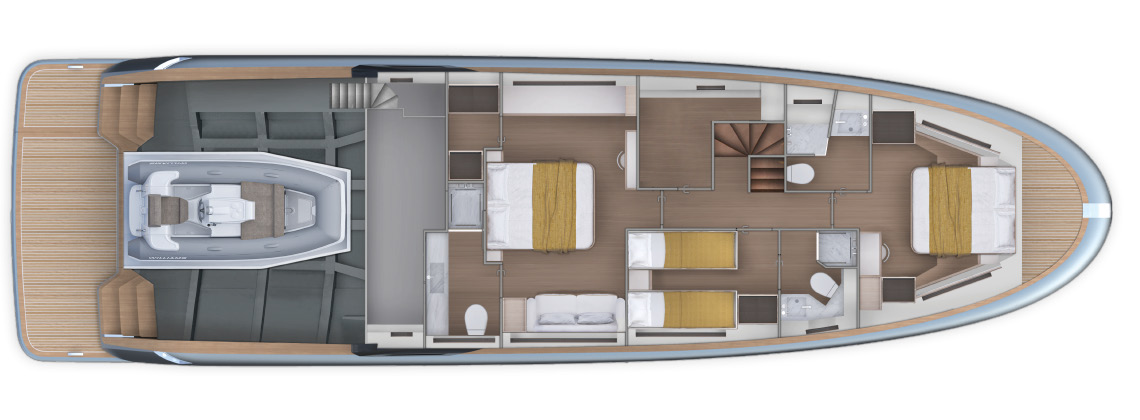

  70-gc-layout-cabin-a — Solaris Yachts S.r.l. (Solaris Power)

•

  70-gc-layout-cabin-b — Solaris Yachts S.r.l. (Solaris Power)

About Solaris Power

Premium production

The motor-yacht marque of Solaris Group — Italian open, coupé, flybridge and long-range yachts from 12 to 21 m on Volvo Penta IPS pods, drawn by Brunello Acampora / Victory Design and built in Forlì to the sailing yard's standards.
