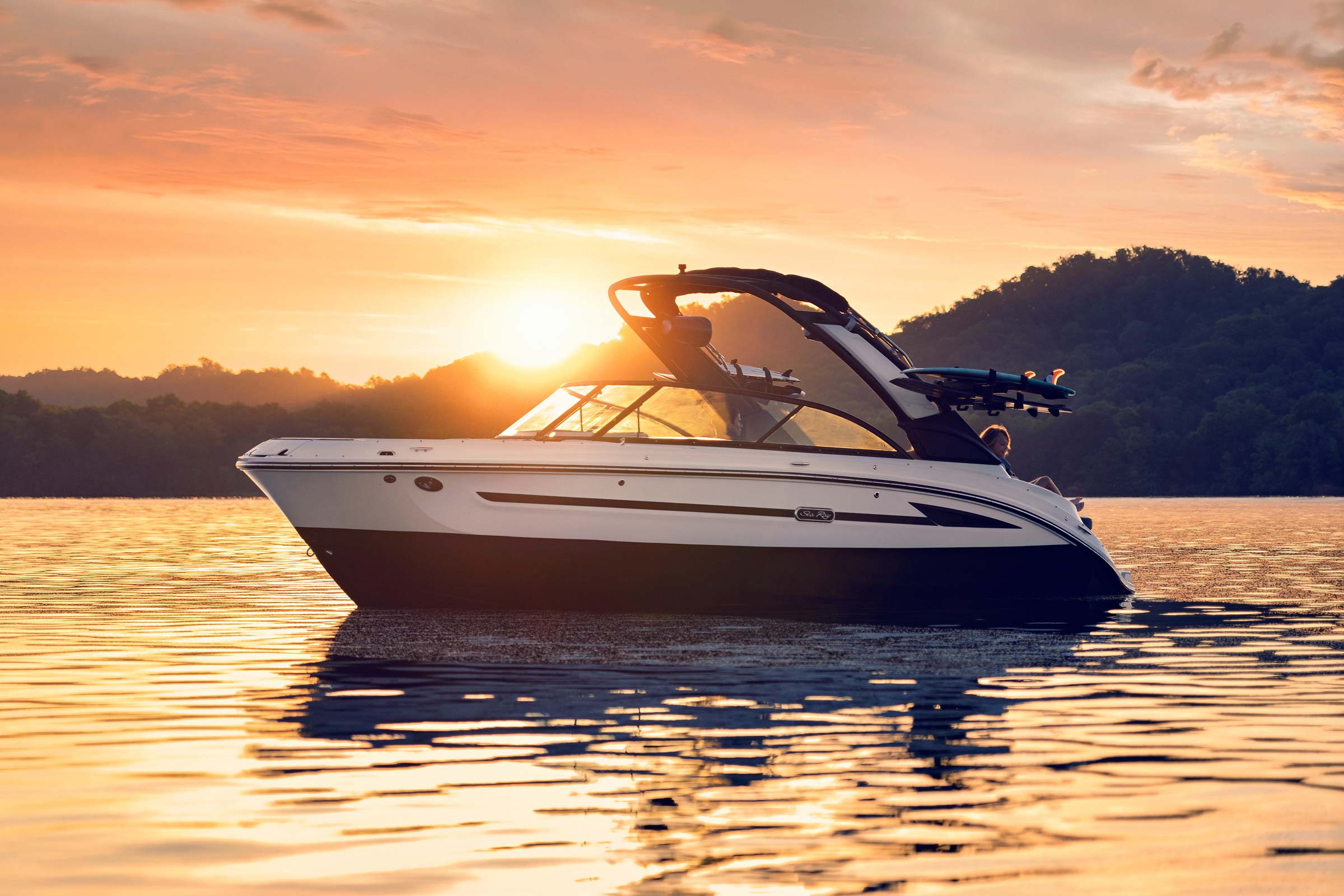

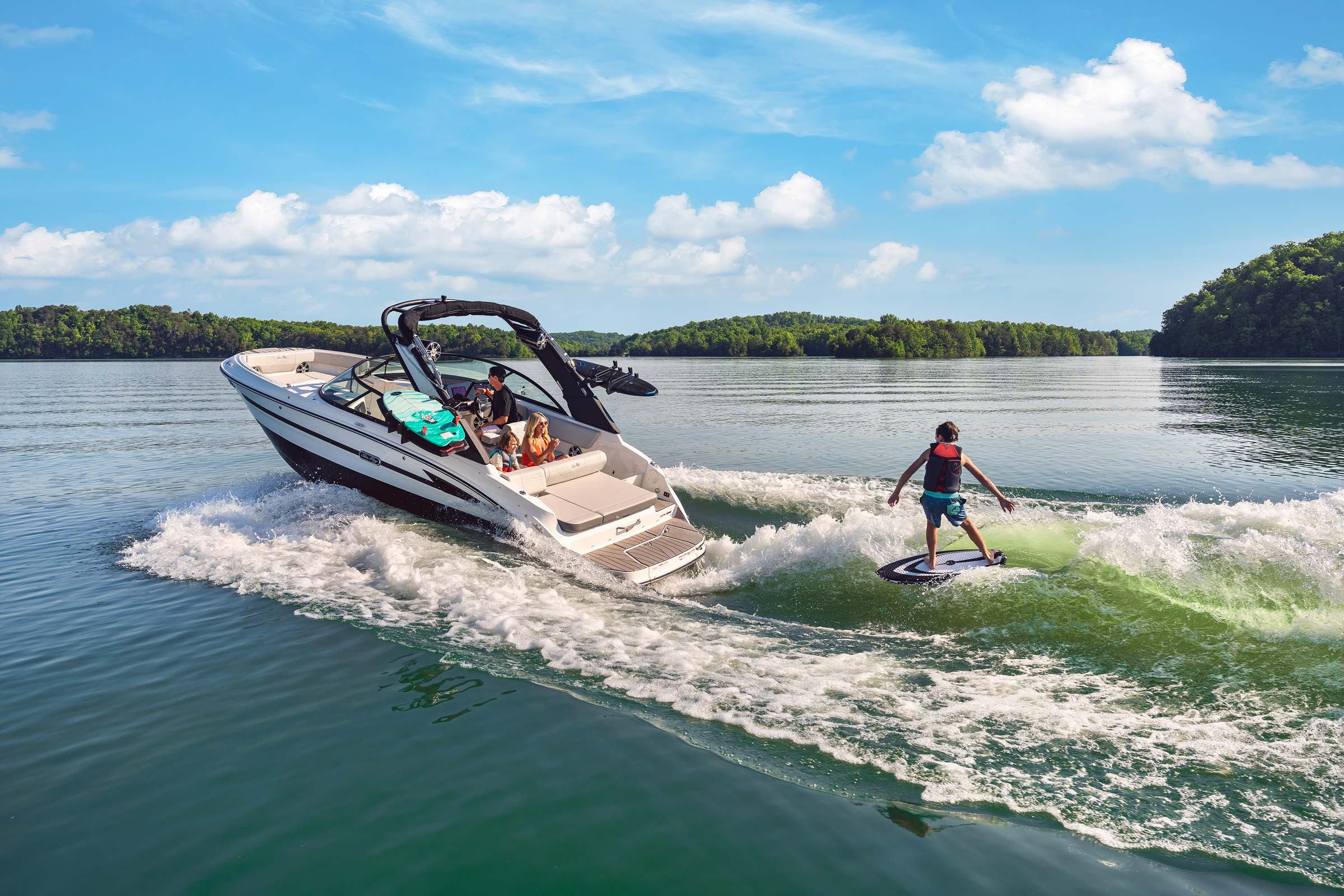

SDX 230 Surf

Summary

Best Suited For

• Coastal Cruising

  From the published figures: day boat · LOA 7.06 m

Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

23.2 ft (7.06 m)

Hull length

—

LWL

—

Beam

8.5 ft (2.59 m)

Draft (min)

3 ft (0.91 m)

Draft (max)

3.7 ft (1.14 m)

Air draft

—

Displacement

5,099 lb (2,313 kg)

Ballast

—

Cabins

—

Heads

—

Berths

—

Performance

Maximum speed

34 kn

Cruising speed

21.6 kn

Range

145 nm

Guests

—

Crew

—

Engine and Tanks

Engine

—

Engine count

—

Engine manufacturer

—

Propulsion type

sterndrive

Fuel capacity

60 gal (227 L)

Fresh water capacity

—

Black water capacity

3 gal (9.8 L)

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Ballast capacity

471 kg

Deadrise

21°

Persons capacity

12 people / Maximum: 1636 lb

Cruising speed as printed

40–43 kph

Range as printed

at cruising speed 269 km; at WOT 180 km

Displacement basis

dry weight without engine, as printed (2313 kg)

Draft basis

drive trimmed up (min) and trimmed down (max), as printed

Speed basis

printed in kph/km, converted to knots/nautical miles

Top speed (WOT) as printed

61-63 kph

Layouts & Drawings

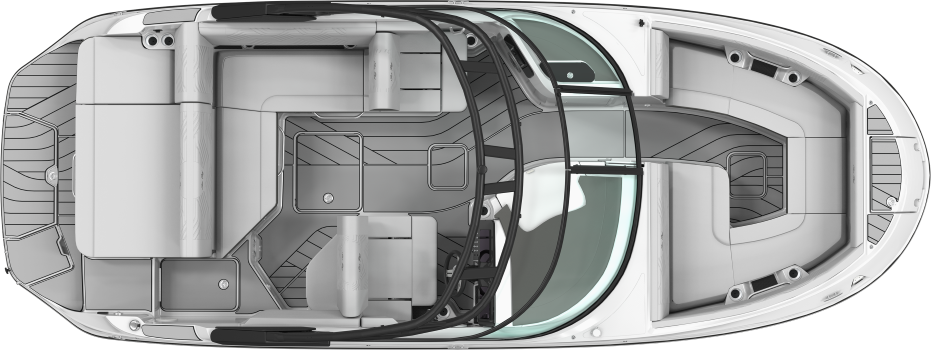

1 drawing from the builder's page: general arrangement, sail plan, profile.

•

  SDX-230-Surf-Floorplan-Highline-Package-web-horizontal — Sea Ray

About Sea Ray

Volume production

American sport-boat and sport-cruiser builder founded in 1959 and part of Brunswick Corporation since 1986 — thirty sterndrive, outboard and surf models from the 6.6-metre SPX 210 to the 12.9-metre SLX 400 Outboard in four series, SPX, SDX, SLX and Sundancer, built mainly in Vonore, Tennessee.

Sea Ray was founded in 1959 by C.N. Ray after he bought the assets of Carr-Craft, a small fiberglass manufacturer in Detroit; it began with three people — Ray, Carr-Craft's fiberglass specialist and designer Jerry Michalak, and Ray's business partner Arch Mehaffey. In the 1960s production ramped up in Oxford, Michigan, the first lineup was unveiled and a dealer network was built. The 1970s brought a new headquarters with production and product development in Phoenix, the Merritt Island, Florida plant that still builds Sea Rays, and the Sundancer, which the company says defined the cabin cruiser. In the 1980s it opened the Vonore, Tennessee plant, which builds most models today, joined the Brunswick family of brands in 1986, opened its first international plant and by the end of the decade offered more than fifty models. The 1990s range ran from the 16-foot Ski Ray to the 65-foot 650 Cockpit Motor Yacht; the Sea Ray Owners Club began in 1996, and all plants operated under ISO 9002. In the 2000s Sea Ray reintroduced outboard models, adopted touchscreen helms and robotic manufacturing, and moved its headquarters to Knoxville, Tennessee. After the L-Class yachts of the 2010s it refocused on sport boats and sport cruisers under 40 feet, and the Sundancer 370 launched its current design language, with each model offered in sterndrive and outboard versions.

The Sea Ray Range

Every model Sea Ray publishes, by length — where this one sits in the range.

1. SLX 260 Surf25.8 ft
2. SDX 25025.2 ft
3. SDX 250 Surf25.2 ft
4. SPX 210 Outboard23.9 ft
5. SDX 230 Outboard23.5 ft
6. SDX 23023.2 ft
7. SDX 230 Surf· this model23.2 ft
8. SPX 190 Outboard21.8 ft
9. SPX 21021.7 ft
