Speed
- Cruising speednot published
- Top speed24 kn
1 / 11
Exterior — Sanlorenzo
Design
- Designer
- Tommaso Vincenzi
Summary
Motor MonohullUnclassified
- Length overall
- 120 ft
- Beam
- 26.2 ft
- Maximum speed
- 24 kn
- Guests
- 10
- Crew
- 6
- Cabins
- 5
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Speed, Power & Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Power to weight
Total engine power per tonne of published displacement — more means livelier acceleration for the hull. Drawn for motor yachts.
not published: engine power, displacement
Tanks
Fuel and water on one scale: a tank twice the height holds twice as much.
- Fuel5,310 galWater581 gal
58 gal of water per berth
A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.
Dimensions
- LOA
- 120 ft (36.58 m)
- Hull length
- —
- LWL
- —
- Beam
- 26.2 ft (8 m)
- Draft (min)
- —
- Draft (max)
- —
- Air draft
- —
- Displacement
- —
- Ballast
- —
- Cabins
- 5
- Heads
- —
- Berths
- 10
Performance
- Maximum speed
- 24 kn
- Cruising speed
- —
- Range
- —
- Guests
- 10
- Crew
- 6
Engine and Tanks
- Engine
- —
- Engine count
- 4
- Engine manufacturer
- Volvo Penta
- Propulsion type
- IPS pod drive
- Fuel capacity
- 5,310 gal (20,100 L)
- Fresh water capacity
- 581 gal (2,200 L)
- Black water capacity
- —
Construction
- Hull material
- —
- Deck material
- —
- Rudder type
- —
- Steering wheels
- —
Figures read fromthe builder's page
Layouts & Drawings
4 drawings from the builder's page: general arrangement, sail plan, profile.

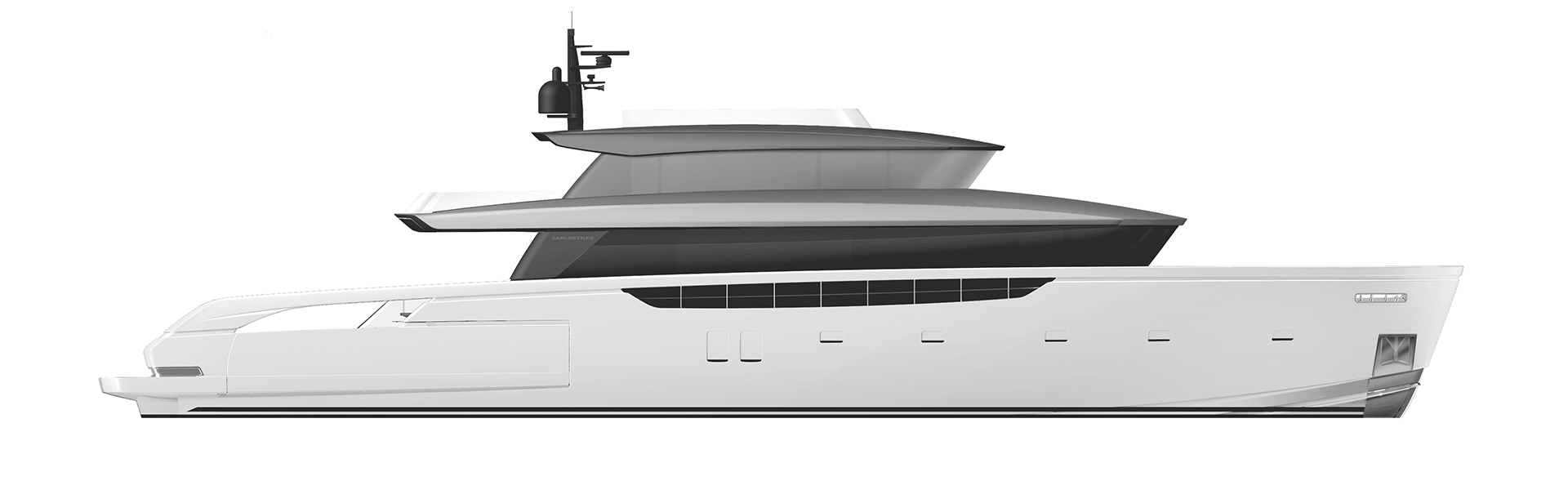

SX120 profile — Sanlorenzo

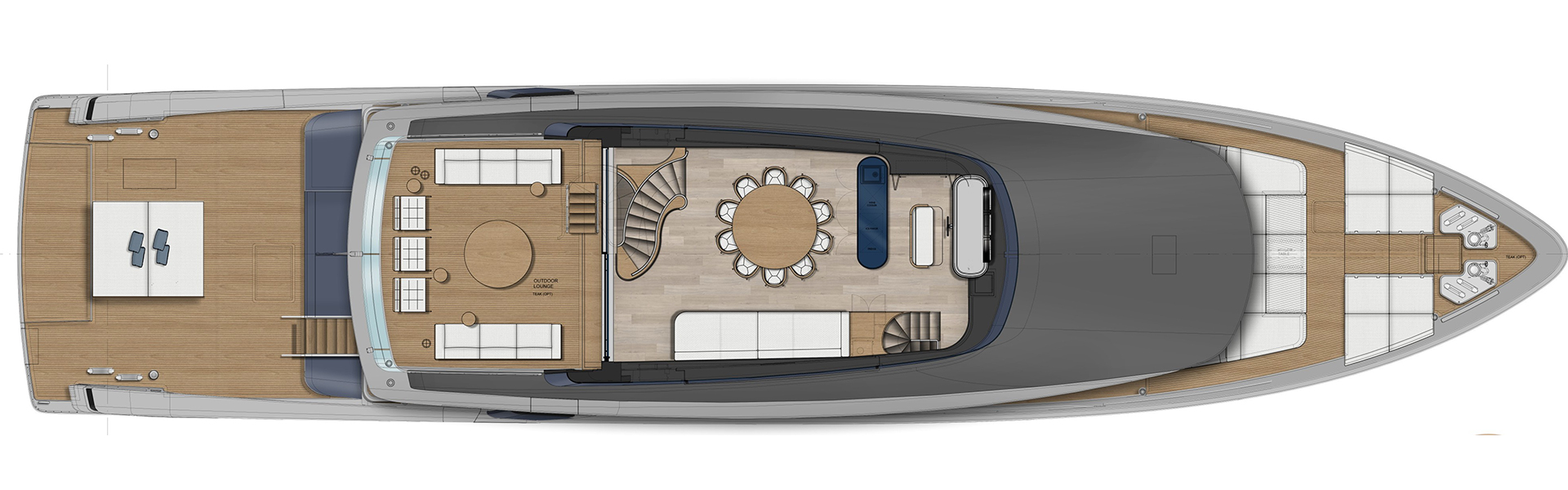

SX120 upper deck — Sanlorenzo

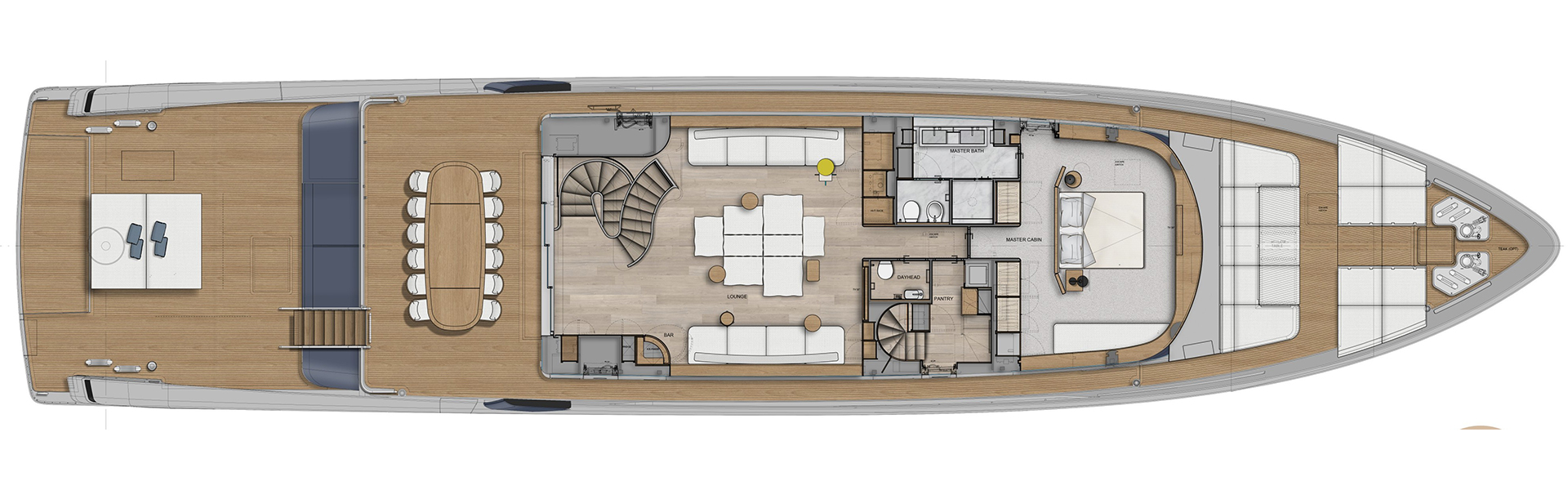

SX120 main deck — Sanlorenzo

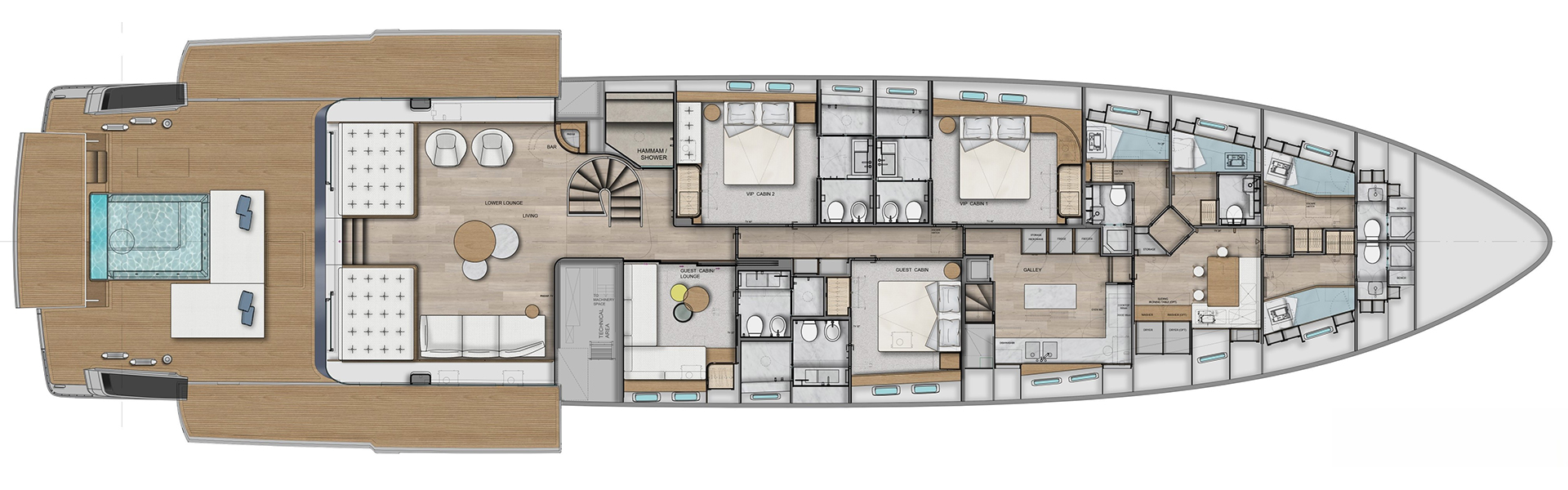

SX120 lower deck — Sanlorenzo
