ST550

Design

Designer

Christian Grande

Summary

Speed, Power & Tanks

What the builder publishes about how fast, how strong and how much the boat carries.

Dimensions

LOA

55.3 ft (16.87 m)

Hull length

—

LWL

—

Beam

16.5 ft (5.04 m)

Draft (min)

—

Draft (max)

—

Air draft

—

Displacement

55,115 lb (25,000 kg)

Ballast

—

Cabins

2

Heads

2

Berths

—

Performance

Maximum speed

—

Cruising speed

—

Range

—

Guests

—

Crew

—

Engine and Tanks

Engine

—

Engine count

2

Engine manufacturer

Volvo Penta

Propulsion type

Volvo Penta IPS pods

Fuel capacity

—

Fresh water capacity

—

Black water capacity

—

Construction

Hull material

—

Deck material

—

Rudder type

—

Steering wheels

—

Builder's Own Figures

Shipyard

Cantieri Aschenez

Accommodation

two cabins, Master and VIP, each with a private bathroom; lower-deck options: cabin version, kitchen version, crew cabin (from the page text)

Max persons

14 (certified persons, not berths)

Permitted power

2 x Volvo Penta IPS 800 / 2 x Volvo Penta IPS 950

Displacement basis

full load, as printed (25 t)

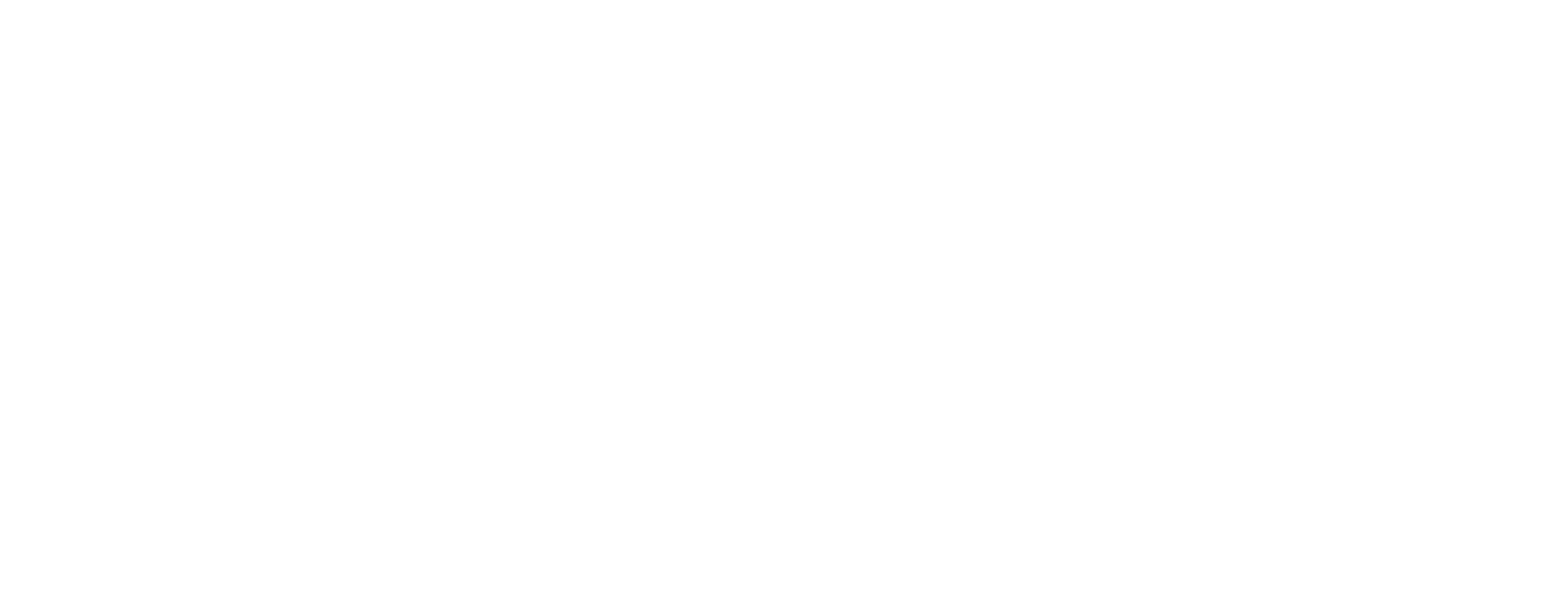

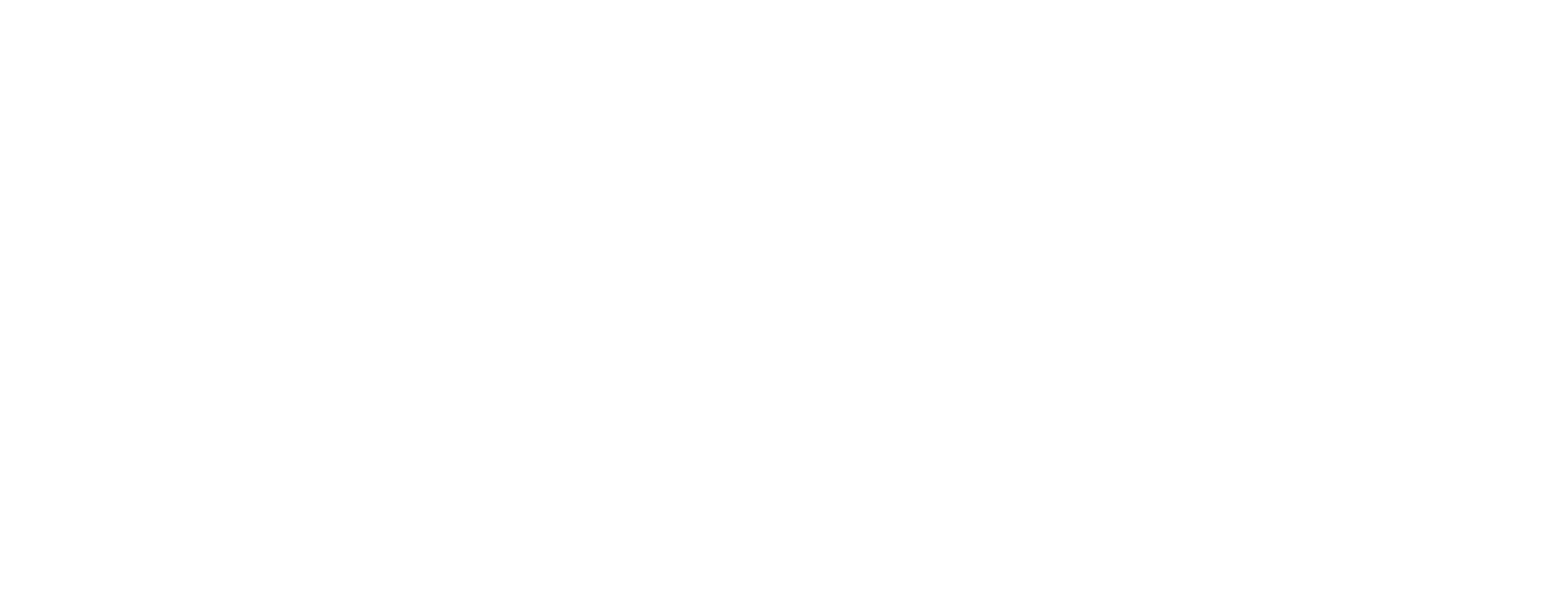

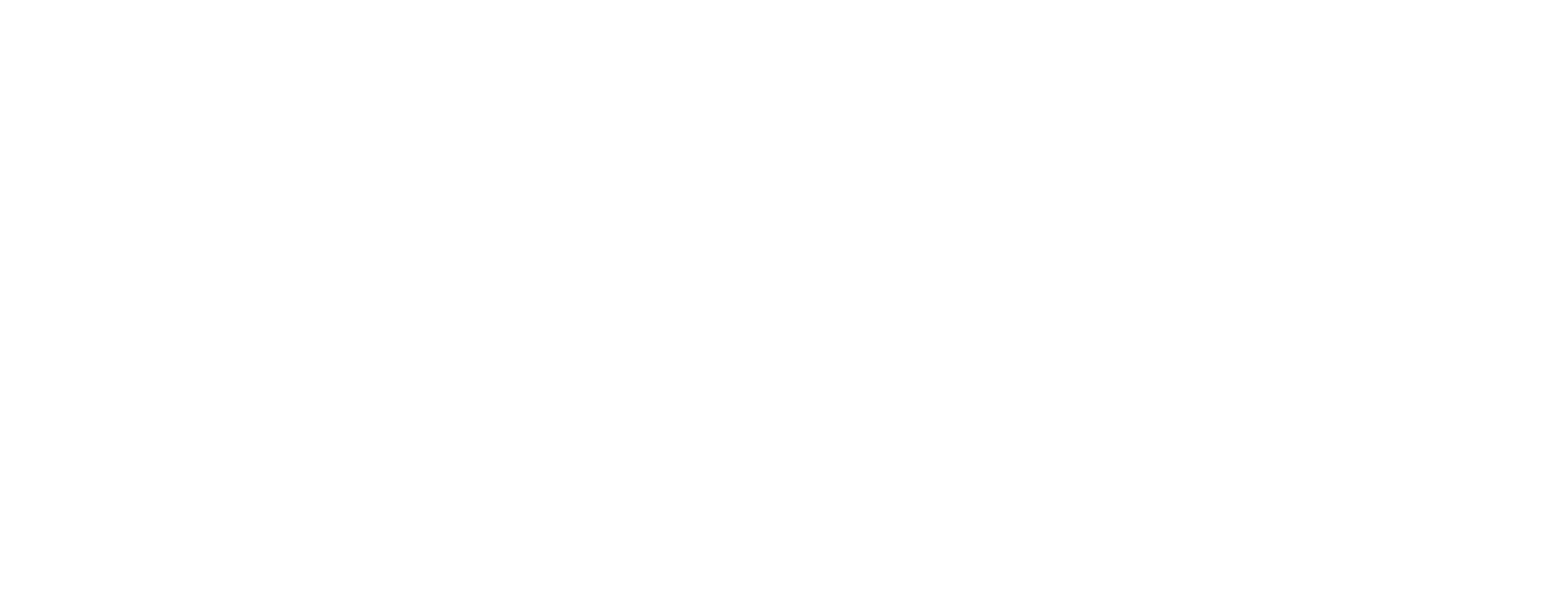

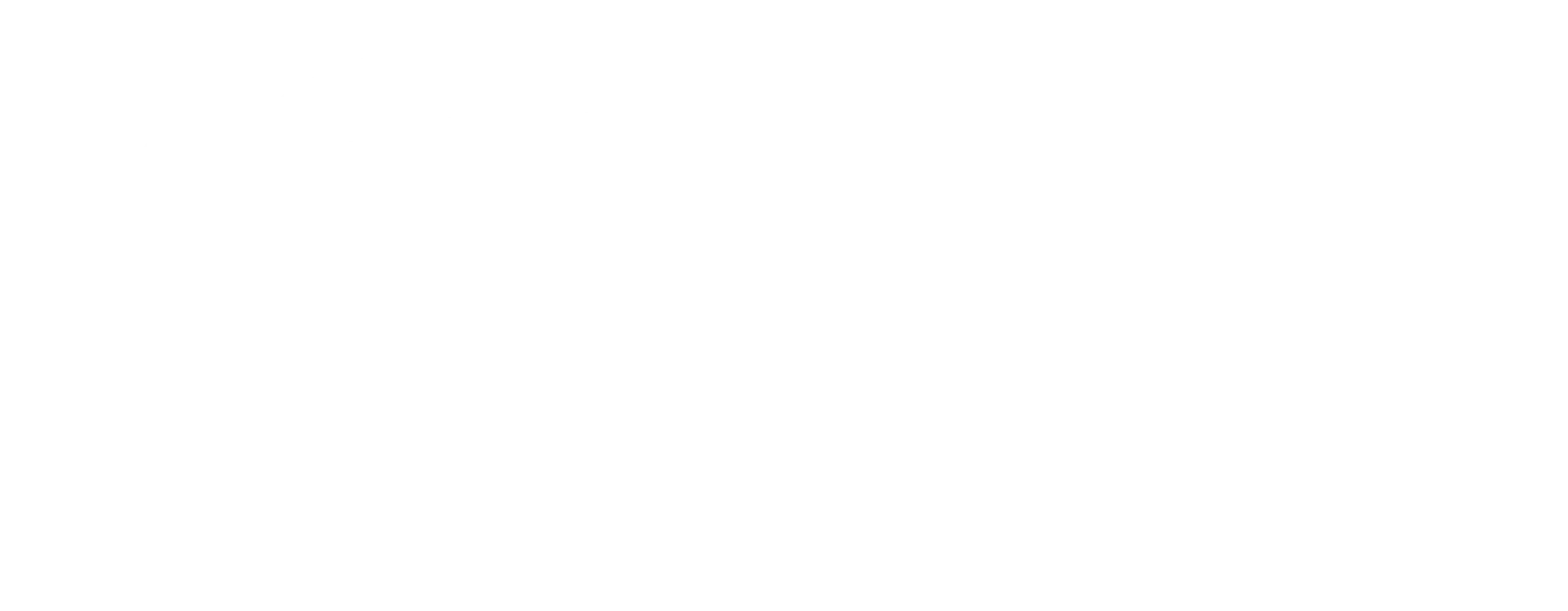

Layouts & Drawings

4 drawings from the builder's page: general arrangement, sail plan, profile.

•

  ST550_tecnici-01-scaled-e1724752695578 — Invictus Yacht

•

  ST550_tecnici-02-scaled-e1724752725870 — Invictus Yacht

•

  ST550_tecnici-03-scaled-e1724753191991 — Invictus Yacht

•

  ST550_tecnici-04-scaled-e1724753213163 — Invictus Yacht

About Invictus Yacht

Premium production

Italian builder of design-led open and hardtop boats from Calabria — thirteen models in the GT, TT and ST series, from the 8.9-metre GT280 to the 16.9-metre TT550 and ST550, all designed by Christian Grande and built by Aschenez at Borgia.

Invictus Yacht is built by Aschenez Shipyards, which the yard says bring together more than twenty years of experience in building pleasure boats. Production is vertically integrated, with up to 90% of the work carried out in-house by more than a hundred people, on a site of 20,000 sqm of which 9,500 sqm are covered: offices, moulding, painting, a test basin where every system of each boat is checked, assembly, finishing, a furniture workshop, carpentry, electrical systems, an RTM department, a textile division and the Atelier Invictus. Hulls are infused in fibreglass and carbon fibre, and the yard lists its newer steps — structural tanks, pre-preg carbon, recyclable honeycomb panels for the sub-deck walls and resin-infused high-density polyethylene in place of internal wooden structures. It names the GT280 Carbon Look, whose black finish is a clear treatment over bare carbon rather than paint, as a milestone. Hull colour has always been part of the brand: seventeen options, metallic or matt, in classic and extended versions.

The Invictus Yacht Range

Every model Invictus Yacht publishes, by length — where this one sits in the range.

1. ST550· this model55.3 ft
2. TT55055.3 ft
3. TT46046.8 ft
4. TT420S40.5 ft
5. TT42040.4 ft
6. GT37037.4 ft
7. GT370S37.2 ft
8. GT32032.6 ft
9. GT320S32.5 ft
