Sail area / displacement
How much sail the boat carries for its weight — its power in light air.
- 18.7· Cruiser
How it is worked out
sail area (ft²) ÷ (displacement as ft³ of seawater)^⅔
published upwind sail area
1 / 10

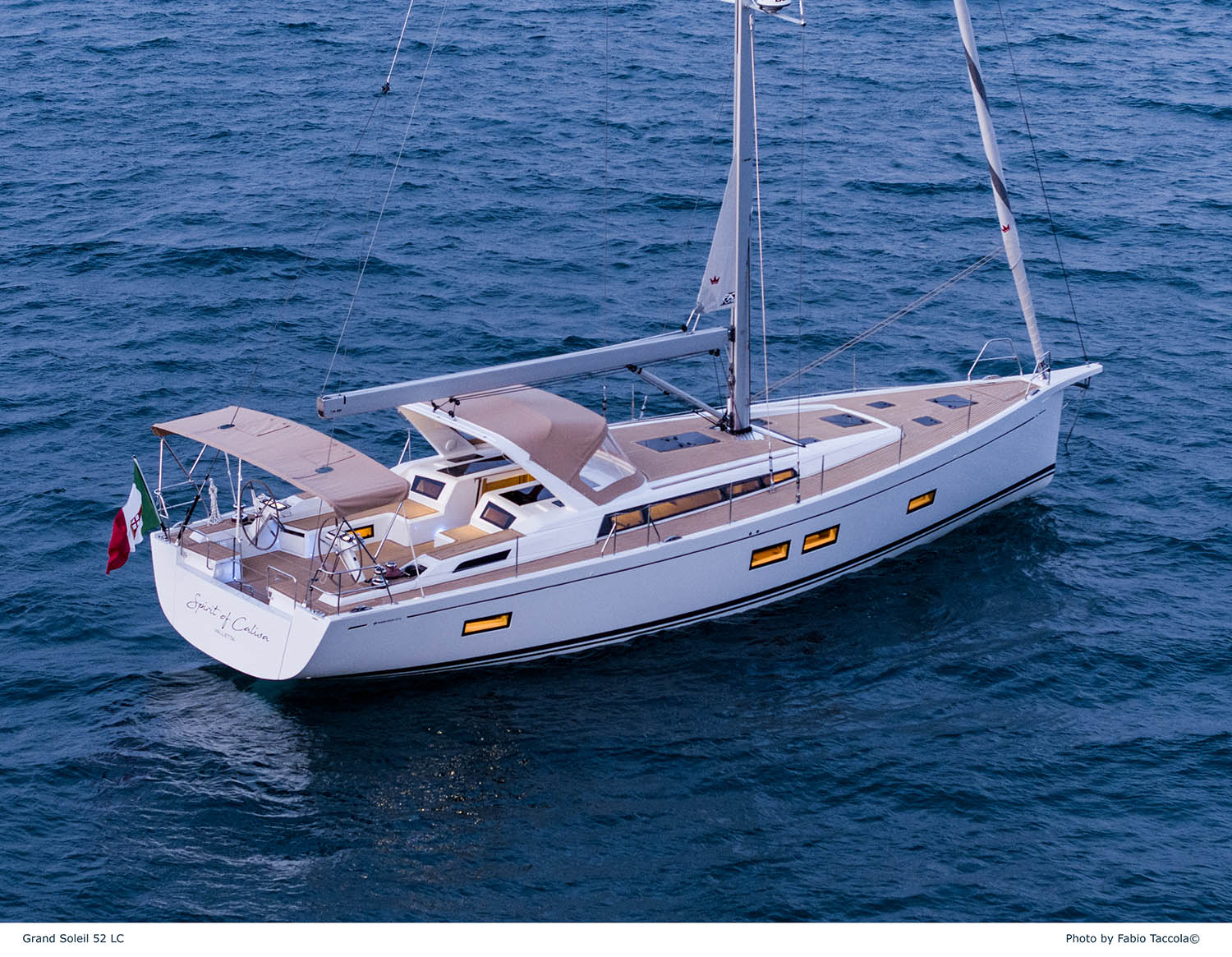

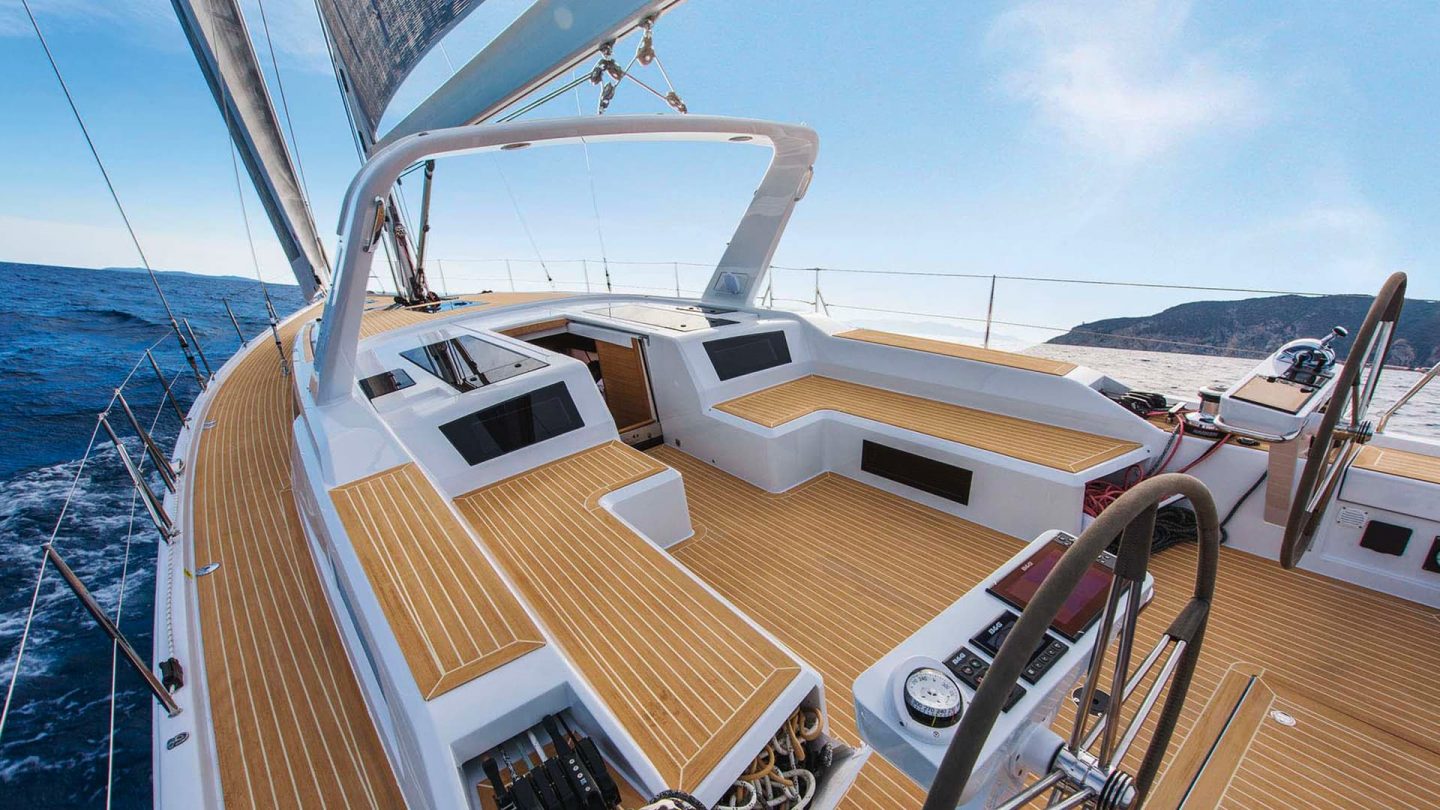

GS 52 LC underway — Grand Soleil
Design
- Naval architect
- Marco Lostuzzi
- Interior designer
- Nauta Design
Summary
Sailing MonohullSail
- Length overall
- 55.7 ft
- Beam
- 16.1 ft
- Draft
- 8.2 ft
- Displacement
- 44,754 lb
- Sail area (upwind)
- 1,475 ft²
- Cabins
- 3
- Berths
- 6
* A standard reference image, not the actual boat — shown to help visualise this model's published dimensions.
Best Suited For
- Liveaboard
From the published figures: LOA 16.98 m · 3 cabins · fresh water 600 L
Tags are derived from certified class, length, sail area, accommodation and tankage using the criteria described on the Sources page; an editor may add or remove one.
Sailing Ratios
Classic yacht-design ratios worked out from the builder's published figures, each shown against the bands designers read it by.
Displacement / length
How heavy the boat is for its waterline length. Lower is lighter and quicker; higher is steadier and roomier.
- not published: waterline length
How it is worked out
displacement (long tons) ÷ (0.01 × waterline length in ft)³
Ballast ratio
The share of the weight carried in the keel — a rough guide to stiffness, though how deep that weight sits matters as much.
- not published: ballast
How it is worked out
ballast ÷ displacement × 100
Comfort ratio
Ted Brewer's measure of how gently a boat moves in a seaway. Higher means a slower, easier motion.
- not published: waterline length
How it is worked out
displacement (lb) ÷ (0.65 × (0.7 × LWL + 0.3 × LOA) × beam^1.333), lengths in ft
Capsize screening
A guide from the inquiry after the 1979 Fastnet race: below 2 was taken as suited to ocean passages. It ignores hull shape and where the ballast sits.
- 1.81· Below 2
How it is worked out
beam (ft) ÷ (displacement as ft³ of seawater)^⅓
Hull speed
Roughly the speed a displacement hull reaches before it has to climb its own bow wave.
- not published: waterline length
How it is worked out
1.34 × √(waterline length in ft), in knots
Most builders publish a light displacement. The ratios were defined on a loaded boat, so every boat here reads a little lighter than a surveyor's figure would — all alike, which keeps them comparable.
Tanks
What the builder publishes about how fast, how strong and how much the boat carries.
Fuel and water on one scale: a tank twice the height holds twice as much.
- Fuel79 galWater159 gal
26 gal of water per berth
A figure marked with a quote mark was read from the builder's page. Open it for the exact line, the page and the date.
Dimensions
- LOA
- 55.7 ft (16.98 m)
- Hull length
- 52.8 ft (16.1 m)
- LWL
- —
- Beam
- 16.1 ft (4.9 m)
- Draft (min)
- 8.2 ft (2.5 m)
- Draft (max)
- 8.2 ft (2.5 m)
- Air draft
- —
- Displacement
- 44,754 lb (20,300 kg)
- Ballast
- —
- Cabins
- 3
- Heads
- —
- Berths
- 6
Sail Plan
- Main sail
- —
- Jib
- —
- Genoa
- —
- Sail area
- 1,475 ft² (137 m²)
- Downwind sail area
- —
- Rig type
- —
Engine and Tanks
- Engine
- 75–110 hp
- Engine count
- 1
- Engine manufacturer
- —
- Propulsion type
- —
- Fuel capacity
- 79 gal (300 L)
- Fresh water capacity
- 159 gal (600 L)
- Black water capacity
- —
Construction
- Mast material
- —
- Hull material
- —
- Deck material
- —
- Keel type
- —
- Rudder type
- —
- Steering wheels
- —
Builder's Own Figures
- Sail Area (opt.)
- 149 m2
- Engines
- 75 hp std.110 hp opt.
- Guests
- 6 (berths as printed)
- Displacement basis
- lightship/approx. as printed (t -> kg)
- Engine power basis
- std. / opt. as printed
Figures read fromwww.grandsoleil.net/products/gs-52-lc· TECHNICAL INFOread 9/22/2026
