Horizon FD90vswallywhy 200

wallywhy 200 is 1.8 ft wider than Horizon FD90 (8%). Horizon FD90 draws the least water, 6.1 ft — 0.8 ft less than wallywhy 200.

Anyone with the link sees this comparison.

Key differences

Worked out from the published figures below — arithmetic, not opinion.

At a glance

Dark icons are the standard layout; faded ones are what the larger layout adds.

Length : beam is length divided by beam — the higher it is, the slimmer the hull. Multihulls read low by nature.

Model
3840X2160-FD90-234-E1-1920x1080

Horizon Yachts

Horizon FD90
64489
Overview
BrandHorizon YachtsWally
ModelHorizon FD90wallywhy 200
GenerationUnknownUnknown
Hull typeMotor MonohullMotor Monohull
PropulsionInboard DieselInboard Diesel
Production statusIn productionIn production
Production start yearUnknownUnknown
Production end yearUnknownUnknown
DesignerUnknownUnknown
Dimensions
LOA90.1 ft88.7 ft
Hull lengthUnknown78.7 ft
Beam23.3 ft25.1 ft
Draft6.1 ft6.9 ft
Displacement233,690 lb240,304 lb
Accommodation
Cabins44
HeadsUnknown4
BerthsUnknownUnknown
Performance & Rig
Main sailUnknownUnknown
JibUnknownUnknown
GenoaUnknownUnknown
Upwind sail areaUnknownUnknown
Downwind sail areaUnknownUnknown
Engine power1600 hp1000 hp
Engine count2Unknown
Materials
Hull materialUnknownUnknown
Deck materialUnknownUnknown
Mast materialUnknownUnknown
Keel typeUnknownUnknown
Rudder typeUnknownUnknown
Sources

Figures read fromhorizonyacht.com/models/fd/fd90· SPECread 9/17/2026

Figures read fromwally.com/en-us/Fleet/Model/p/20-297-545-PUBread 9/18/2026

Size, to scale

Each boat's published length and beam seen from above, and its mast height and draft from the side, all drawn on one scale.

From above — length × beam
0 ft10 ft20 ft30 ft40 ft50 ft60 ft70 ft80 ft90 ftwallywhy 200: 88.7 ft × 25.1 ftHorizon FD90: 90.1 ft × 23.3 ftHorizon FD9090.1 ft × 23.3 ftwallywhy 20088.7 ft × 25.1 ft

Outlines are schematic; the dimensions are the builder's.

From the side — height above and depth below the water
WaterlinePerson, 5.9 ftHorizon FD90: air draft not published / 6.1 ftair draft not published6.1 ftHorizon FD90wallywhy 200: air draft not published / 6.9 ftair draft not published6.9 ftwallywhy 200

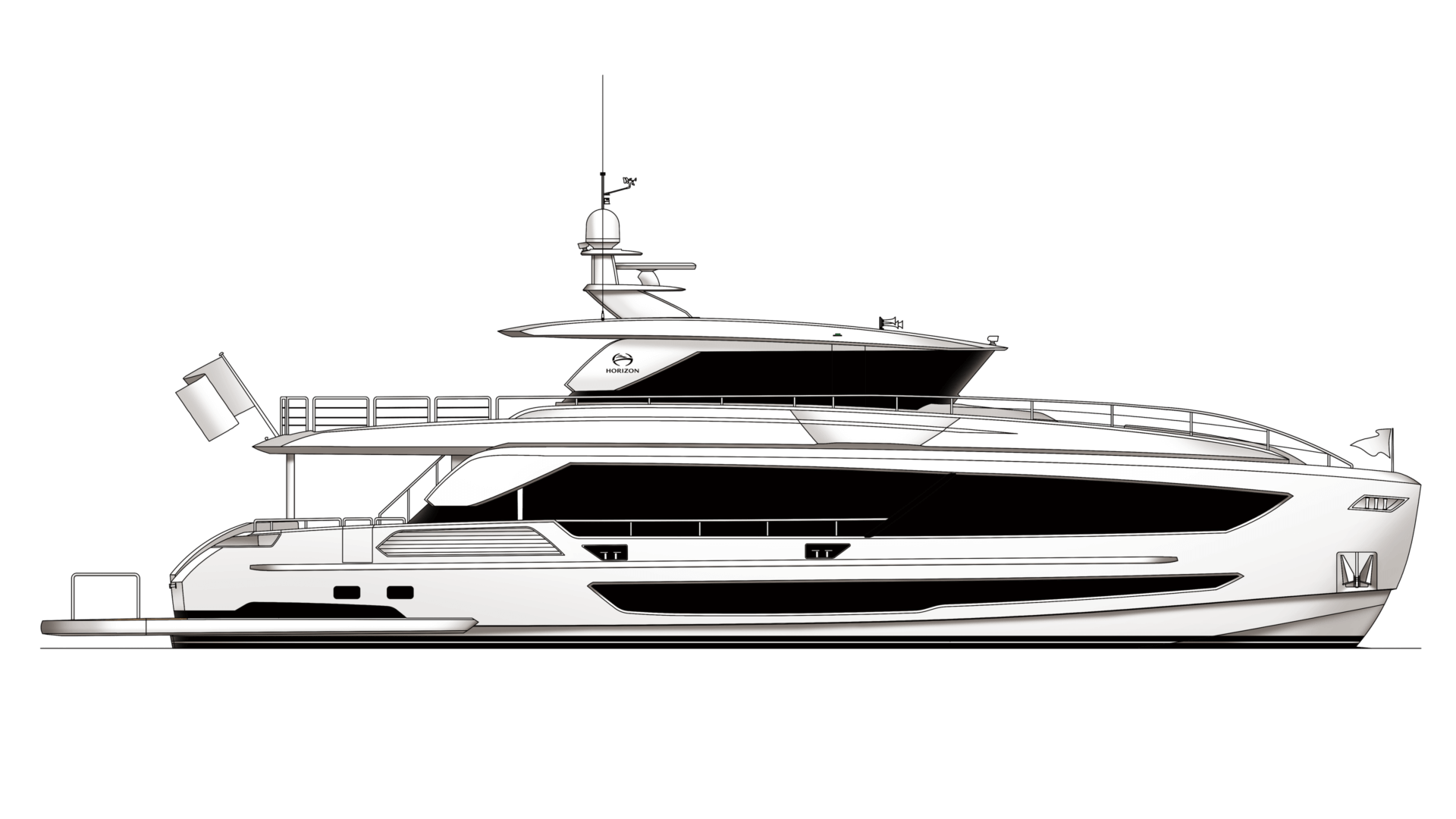

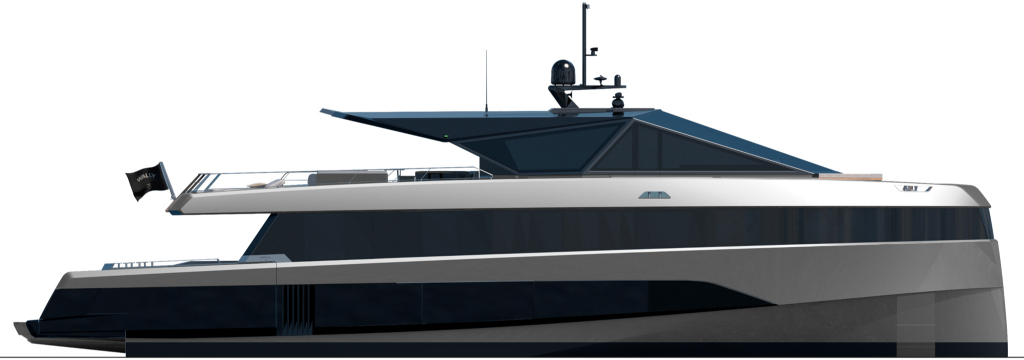

Drawings side by side

Each boat's layouts, profiles and sail plans as its builder published them. Step through each column to line up the drawings you want to compare.

Speed, power & tanks

What the builders publish about how fast, how strong and how far — each figure on one scale for every boat.

Cruising speed

0102030kn
  • Horizon FD90not published
  • wallywhy 20020 kn

Top speed

0102030kn
  • Horizon FD90not published
  • wallywhy 20023 kn

Power to weight

Total engine power per tonne of published displacement — more means livelier acceleration for the hull. Drawn for motor yachts.

  • Horizon FD9030.2 hp/t

    2 × 1,600 hp · 106 t

  • wallywhy 200

    not published: engine count

Tanks

One scale per liquid across every boat: a tank twice the height holds twice as much.

  • Horizon FD90

    Fuel3,479 gal
    Water399 gal

  • wallywhy 200

    Fuel3,170 gal
    Water581 gal

Worth adding to this comparison

The boats most like the ones above, by hull form, size and use.
